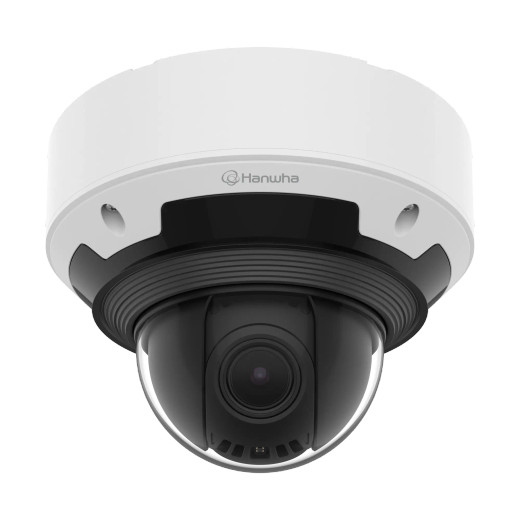

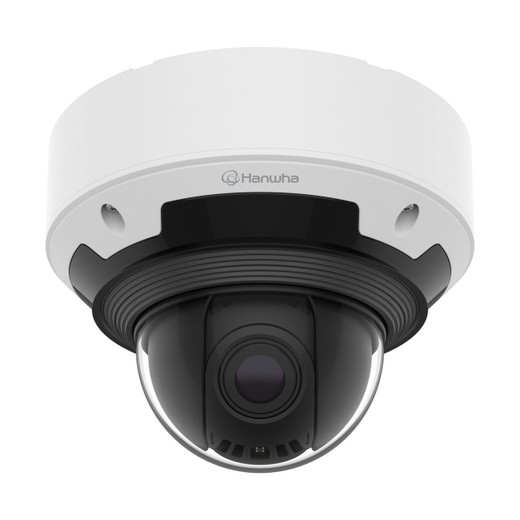

Hanwha PNV-A9082RZ 8MP Outdoor AI IR Vandal Dome PTRZ
The PNV-A9082RZ is a purpose-built outdoor surveillance camera engineered for enterprise deployments requiring forensic-quality 8MP capture, intelligent low-light performance, and motorized pan-tilt-rotate-zoom control. Built on Hanwha's WN9 platform, this vandal-resistant dome camera combines high resolution with advanced analytics, bandwidth-efficient compression, and hardware-level security — making it a capable choice for perimeter surveillance, transportation hubs, and compliance-driven environments where image fidelity and regulatory certification matter.
Key Features
- 8MP (3840 × 2160) at 30 fps: Delivers detailed forensic-quality video suitable for facial identification and license plate capture at range, reducing the need to deploy multiple fixed cameras to cover the same area.
- Motorized varifocal PTRZ lens (5.9–13.3 mm, 2.25× optical zoom): Horizontal field of view ranges 109° to 49° — field adjustments happen remotely without site visits, cutting commissioning time and repeat-trip costs. The motorized focus eliminates manual adjustment after installation.
- 0.03 lux color performance and integrated IR illumination (30-meter range): Provides reliable color video in twilight conditions; when ambient light drops, 850nm IR automatically engages for zero-lux night surveillance. This flexibility reduces the need for separate day/night camera pairs.
- extremeWDR (120 dB dynamic range): Balances exposure in high-contrast backlit scenes—common at building entrances and loading docks—so subjects remain visible whether they're in direct sunlight or deep shadow.
- H.265 compression with AI-driven WiseStream: Reduces storage bitrate 40–60% compared to H.264 depending on scene complexity. On 24/7 multi-camera deployments, this translates directly into smaller NVR capacity and lower bandwidth costs without sacrificing image quality.
- WiseNR II noise reduction and digital image stabilization (DIS) with built-in gyro sensor: Smooths video in high-vibration environments (highway overpasses, loading dock equipment) and reduces grain in low-light scenes, improving both real-time monitoring and archive playback quality.
- Hard-coated vandal-resistant dome with sealed RJ-45 connector: Withstands deliberate impact and weather exposure. Metal-shielded RJ-45 prevents corrosion in high-moisture outdoor installations.
- Operating temperature range: −50 °C to +55 °C: Deploys reliably in arctic and desert climates without environmental enclosures or heater/blower accessories — simplifies BOM and reduces power draw.
- FIPS 140-3 Level 3 secure element: Hardware-level encryption and key management protect recorded video and device credentials even if the camera is physically removed and attacked. Essential for government, financial, and healthcare deployments subject to FIPS compliance mandates.
- PoE+ power (up to 95W available): Draws efficiently from standard 802.3at infrastructure; no separate 12VDC supply or power injector required, simplifying cabling and reducing installation labor.
Integration & Compatibility
The PNV-A9082RZ supports standard IP camera protocols including ONVIF Profile S/T/G, enabling integration with mainstream video management systems and access control platforms. WiseStream compression is proprietary to Hanwha but falls back to standard H.264/H.265 profiles for compatibility with third-party NVRs. Remote lens adjustment is available via web browser or integrator API, streamlining multi-camera deployments where field-of-view tuning is deferred to commissioning phase. Consider pairing with a network video recorder that supports H.265 decoding to realize the full bandwidth savings.
When to Choose a Different Model
If your deployment requires true 360° pan coverage or zoom ratios exceeding 2.25×, evaluate higher-zoom PTZ variants within the Hanwha outdoor camera line. If FIPS certification is not required and budget is constrained, fixed-lens outdoor 8MP models eliminate motorized components and reduce cost. For indoor-only applications, consider non-vandal dome designs or turret cameras that prioritize compact mounting over impact resistance.
Frequently Asked Questions
Q: What is the maximum infrared range on the PNV-A9082RZ?
A: The integrated IR illumination reaches 30 meters (approximately 98 feet). Performance depends on lens focal length selected remotely and target reflectivity.
Q: Does the PNV-A9082RZ support ONVIF?
A: Yes. The camera conforms to ONVIF Profile S, T, and G, ensuring compatibility with mainstream VMS platforms and access control systems that support standard IP camera protocols.
Q: Can the motorized lens be adjusted remotely, or does it require on-site adjustment?
A: The motorized varifocal lens (focus and zoom) is fully adjustable remotely via web interface or API. This eliminates return trips to the installation site if coverage needs adjustment after initial deployment.
Q: Is the PNV-A9082RZ rated for extreme temperature environments?
A: Yes. The operating temperature range is −50 °C to +55 °C (−58 °F to 131 °F), supporting deployment in arctic and desert climates without external heaters or enclosures.
Q: What does FIPS 140-3 Level 3 certification provide?
A: FIPS 140-3 Level 3 ensures hardware-level encryption and secure key management, protecting recorded video and device credentials if the camera is physically compromised. This is mandatory for regulated sectors including government, finance, and healthcare.
Q: How much power does the PNV-A9082RZ consume?
A: The camera operates over PoE+ (IEEE 802.3at), drawing power well within the 95W class budget. Exact consumption depends on IR activation and processing load; consult the manufacturer datasheet for detailed power profiles.
The PNV-A9082RZ represents solid engineering for enterprise outdoor surveillance. The motorized varifocal lens is the standout feature — remote field-of-view adjustment eliminates the need for multiple fixed cameras or repeat site visits just to tweak coverage. For large perimeter deployments, that directly cuts deployment labor and total cost of ownership. The 0.03 lux color performance paired with 30-meter IR reach means you don't need separate day/night camera pairs, and the extremeWDR handles backlit scenarios that would otherwise require repositioning or angle adjustment.
Technical Highlights:
- 8MP resolution at 30 fps: Delivers forensic-quality detail sufficient for facial identification and license plate capture at range — reduces the number of cameras needed to cover large areas.
- H.265 with WiseStream compression: Cuts storage bitrate 40–60% versus H.264 on 24/7 recording. On a 32-camera system with 7-day retention, that's the difference between a 16TB and 10TB NVR, plus lower bandwidth utilization on the LAN.
- extremeWDR (120 dB) and WiseNR II with gyro-stabilization: Maintains image clarity in mixed lighting and high-vibration environments. The gyro is particularly useful at infrastructure sites where wind or vehicle pass-by causes motion blur.
- FIPS 140-3 Level 3 secure element: Hardware-backed encryption keeps keys protected even if the device is physically removed and attacked — non-negotiable for regulated environments and government contracts.
- Operating range −50 °C to +55 °C: No environmental enclosure or heated housing needed in extreme climates, simplifying logistics and reducing auxiliary power draw.
Deployment Considerations:
- The 2.25× zoom is modest — if your site demands 10× or higher zoom ratios or true 360° pan coverage, look at dedicated PTZ models in the Hanwha line. This camera is optimized for wide-area surveillance, not narrow-focus tracking.
- PoE+ is required (802.3at, 95W budget). Standard 802.3af PoE (15W) will not power this camera; verify your PoE switch has sufficient allocated power per port and overall budget before commissioning.
- WiseStream compression is proprietary. Most modern NVRs support H.265 fallback, but confirm VMS compatibility before purchase if you're mixing Hanwha and third-party recorders.
Position the PNV-A9082RZ in large outdoor perimeter and transportation hub deployments where forensic resolution, remote lens adjustment, and regulatory compliance (FIPS) are hard requirements. For smaller sites or budget-sensitive projects, fixed-lens outdoor cameras offer similar resolution at lower cost. For high-zoom or traffic enforcement scenarios, purpose-built long-range PTZ cameras are the better choice.
