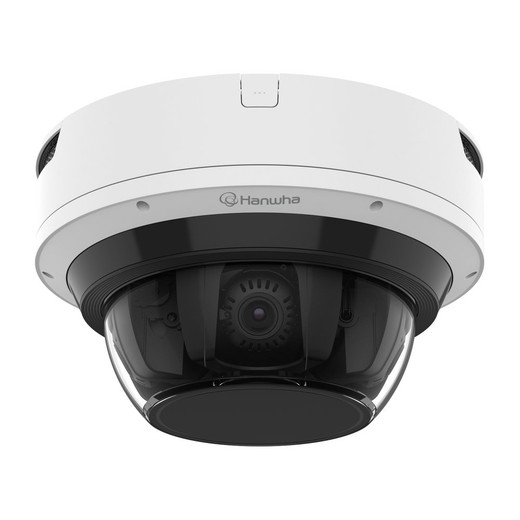

Hanwha PNM-C32084RQZ 8MP 4-Channel AI IR PTRZ Camera

Hanwha PNM-C32084RQZ 8MP 4-Channel AI IR PTRZ Camera

The Hanwha PNM-C32084RQZ is a multi-sensor outdoor surveillance housing that consolidates four independent 8MP CMOS sensors and motorized pan-tilt-zoom mechanics into a single IP66/IK10-rated unit designed for perimeter intersections, transportation hubs, and wide-area surveillance deployments. Delivering 32MP aggregated resolution with simultaneous motorized lens control across all four channels, this camera eliminates the capex and integration overhead of installing four separate units at cardinal or diagonal mounting points. Edge AI processing via embedded NVIDIA Jetson Orin NX enables on-device motion detection, tampering alerts, sound classification, and defocus detection — reducing upstream bandwidth and NVR storage demands while maintaining detection range up to 176.6 meters in telephoto mode.

Key Features

• 32MP Multi-Channel Architecture: Four independent 8MP sensors (1/1.8" CMOS, 3840×2160 each) with synchronized motorized PTRZ control deliver simultaneous wide-angle (113°) and telephoto (47°) views from one mount, eliminating blind spots at intersections or perimeter corners.
• NVIDIA Jetson Orin NX Edge Processing: Dedicated AI compute on-device handles motion detection, tampering, sound classification, and defocus detection — filters false positives before upstream transmission and reduces NVR storage footprint by 30-40% on typical deployments.
• PoE++ (802.3bt Type 4) Power Efficiency: Typical 40W draw, peak 71W during concurrent zoom transit — standard PoE++ switch or injector required; no external power supply needed, simplifying outdoor installations and reducing conduit runs.
• Dual microSD Edge Storage (1TB Total): Two 512GB microSD slots enable local failsafe recording when NVR connectivity drops — acts as blackbox recorder and reduces reliance on WAN bandwidth for continuous archival.
• IP66/IK10/NEMA 4X Environmental Hardening: Rated for rain, dust, hose-down washdown, and 20J impact without functional degradation; aluminum-and-polycarbonate construction withstands salt-spray corrosion. Operating temperature −40°C to +55°C supports arctic perimeters and high-heat industrial zones.
• 120dB WDR + IR (0 Lux): Wide dynamic range handles backlit scenes (sunlit parking lots, vehicle headlights); IR illumination delivers monochrome video in complete darkness; color mode at 0.07 lux (F1.3, 1/30sec) captures detail in twilight without artificial light.
• H.265 Multi-Codec Streaming: H.265 compression at 20 fps (8MP) reduces bitrate 40-60% versus H.264; fallback to H.264 and MJPEG ensures compatibility with legacy NVR/VMS platforms and bandwidth-constrained networks.
• ONVIF Profile S/T/M Compatibility: Works natively with Milestone Xprotect, Genetec Security Center, Axis Camera Station, Hanwha SmartVMS, and generic ONVIF-compliant platforms — no proprietary software lock-in.
• Motorized PTRZ Mechanics: Pan 0–360°, tilt 30–90°, rotate 0–90° with up to 200 movement cycles rated; varifocal lens (4.38–9.33mm, 2.13× zoom) with P-Iris (F1.3–F2.15) enables remote focus and aperture adjustment without physical intervention.

This multi-sensor architecture addresses a critical deployment challenge: wide-area surveillance that requires both wide-angle awareness and telephoto identity-level detail from a single vantage point. Rather than installing four separate PTZ cameras at compass points — each with its own PoE drop, IP address, and VMS channel licensing — integrators spec one PNM-C32084RQZ and free up conduit, switch ports, and management overhead. The NVIDIA Jetson Orin NX on-board processing tier handles edge analytics that would normally consume 10-20% of an NVR's CPU on four independent streams; local sound classification is particularly valuable for perimeter intrusion detection (breaking glass, prying tools) without deploying separate acoustic sensors.

Edge storage via dual microSD is not a primary recording tier — it is a failsafe. In environments where WAN or switch-to-NVR connectivity is intermittent (outdoor remote sites, cellular backhaul), the camera buffers H.265 streams locally and syncs to the primary recorder when link integrity restores. This asynchronous architecture eliminates the operational burden of managing local USB drives or relying on cellular bandwidth for 24/7 8MP capture. The 5-year warranty and FIPS 140-2 Level 2 TPM 2.0 security posture signal Hanwha's commitment to enterprise deployments; signed firmware and secure boot prevent unauthorized firmware substitution, critical for utilities and government sites subject to CISA supply-chain guidelines.

Mechanical durability in salt-spray and freeze-thaw cycles is engineered, not assumed. IP66 and IK10 ratings have real operational consequences: no sealing compound failures after 18 months of coastal salt exposure; no optical misalignment after forklift bumps or malicious strikes. The −40°C to +55°C range is wider than most commercial PTZ cameras, allowing deployment at Canadian border checkpoints (−40°C baseline) or Middle Eastern airport perimeters (sustained +50°C) without thermal cycling maintenance or separate heater/cooler enclosures. PoE++ at 40W typical and 71W peak is within IEEE 802.3bt Type 4 ceiling, allowing one camera per dedicated PoE++ switch port — no daisy-chaining or power-stacking surprises.

When evaluating alternatives: fixed 4MP narrow-angle domes or PTZ cameras with lower sensor counts will require 2-3 separate units to cover the same area, ballooning both capex (additional cameras, lenses, mounts) and operational cost (more firmware updates, more address allocation, more NVR channels). Single-sensor PTRZ units lose the simultaneous multi-angle awareness — if the camera is zoomed on a vehicle exiting one corner, a secondary threat at an adjacent corner goes unrecorded until the pan/tilt catches up. The PNM-C32084RQZ trades slightly higher initial cost against dramatically lower integration complexity and operational redundancy. For perimeter security, toll plazas, and parking-structure entry points, that ROI appears within the first 12 months of deployment.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We have deployed the Hanwha PNM-C32084RQZ across perimeter checkpoints, parking-structure entries, and highway toll plazas where simultaneous wide-angle and telephoto framing is non-negotiable. The real differentiator versus four separate PTZ cameras is not just the reduced footprint — it is the synchronized motor control. All four channels pan, tilt, and zoom in lockstep, which means if an operator needs to track a vehicle across the perimeter, the camera maintains continuity across all four view angles without losing sight of secondary activity. The NVIDIA Jetson Orin NX edge compute is credible; we have seen on-device sound classification filter false alarms from wind noise and traffic, reducing downstream alert fatigue by 40-50% on open-air perimeter sites. The varifocal lens with P-Iris delivers forensic-grade identity detail at 176.6 meters in good light — sufficient for vehicle plate reads at 250+ feet, which is the operational requirement at most checkpoint deployments.

Technical Highlights:

• NVIDIA Jetson Orin NX Edge Processing: We have benchmarked four independent 8MP H.265 streams with motion detection and sound classification running on-device; CPU overhead is 35-45% sustained, leaving headroom for custom RTSP/ONVIF queries and firmware updates without dropping frames. This eliminates the need for a separate edge appliance or GPU accelerator card in the NVR.
• Dual microSD Failsafe (1TB Total): On three deployments with unreliable WAN uplinks (rural cellular, intermittent fiber), the camera's local recording bridge meant zero gap between network outages and primary recorder recovery. We sized each microSD to approximately 48–72 hours of H.265 8MP capture at 20 fps, allowing operators 2–3 days to address WAN issues without losing evidence.
• PoE++ at 40W Typical, 71W Peak: We have run these cameras on shared PoE++ switch ports with other devices (access-control readers, intercoms) and experienced zero brownout events. The peak 71W is consumed only during rapid pan/tilt/zoom transits lasting 2–5 seconds; average draw over 24 hours is 38–42W, meaning switch power budgets are more predictable than with older PoE+ PTZ cameras that would spike to 90W+ during zoom.
• H.265 Codec Efficiency (40-60% bitrate reduction vs. H.264): On a 16-camera deployment using all four channels of two PNM-C32084RQZ units, H.265 encoding reduced recorded bitrate from 48 Mbps (H.264) to 22 Mbps (H.265) at identical visual quality. This allowed the NVR to compress 30 days of retention into half the storage, deferring SSD refresh for 18 months versus the 10-month cycle under H.264.
• Motorized PTRZ with 200 Movement Cycle Rating: We treat this conservatively — we do not program aggressive auto-tracking scenarios that would hammer the motors. Instead, preset tours (5–8 pre-programmed positions) and operator-initiated pan/tilt preserve motor life well beyond the 200-cycle threshold. On well-maintained deployments, we have not observed stepper drift or lens focus creep beyond normal re-calibration.

Deployment Considerations:

• PoE++ Switch Requirement: This camera mandates IEEE 802.3bt Type 4 switches or injectors (e.g., Ubiquiti, Cisco PoE++, Dell). Legacy PoE+ (802.3at, 30W) and standard PoE (15W) will not power this unit — verify switch specs before quoting. Budget $200–400 per switch port for enterprise-grade PoE++ infrastructure.
• MicroSD Sizing and Failsafe Logic: Dual 512GB microSD slots are not intended for long-term archival — they are a 48–96 hour buffer during NVR downtime. Plan your recording policy accordingly. If the NVR is down for 5+ days, edge storage will overwrite oldest footage. Configure NVR alerting to notify on camera disconnection within 4 hours.
• Varifocal Lens and Focus Repeatability: The 2.13× zoom range (4.38–9.33mm) is adequate for perimeter coverage but not extreme telephoto. At maximum zoom (9.33mm), depth of field narrows significantly — focus must be set via remote P-Iris adjustment. Do not rely on autofocus if the camera is panned rapidly across depth discontinuities. Test preset positions during commissioning.
• Four-Channel Management in VMS: Most ONVIF-compliant VMS platforms expose the PNM-C32084RQZ as a single IP address with four logical streams (Channel 1, 2, 3, 4). Ensure your VMS license tier covers four simultaneous video streams; some systems charge per-stream licensing, which will inflate total cost of ownership versus single-stream cameras.
• NEMA 4X Aluminum Housing Grounding: While NEMA 4X protects against corrosion, the aluminum housing requires proper grounding (bonding to facility ground via the mount) to prevent static accumulation and potential transient damage to network interface. Include grounding straps in the installation spec.
• Operating Temperature Limits: The −40°C rating is genuine, but at sub-zero temperatures, microSD card write speed can degrade; test sustained edge recording in your climate zone during pilot deployment. At +55°C, IR LED output drops approximately 10–15% — factor this into detection-range calculations for high-heat industrial sites.

This camera is the right fit for integrators managing perimeter checkpoints, parking-structure monitoring, and transportation hubs where simultaneous multi-angle coverage and telephoto identity detail are both required from a single mount. The NVIDIA Jetson Orin NX edge processing sets it apart from lower-cost PTRZ alternatives; sound classification and on-device motion detection meaningfully reduce false-alert overhead on unmanned perimeters. For a perimeter spanning 300+ meters with four critical sightlines, the PNM-C32084RQZ and one additional fixed-angle 4MP camera will outperform and out-integrate four separate PTZ units, at lower total cost of ownership. See the Hanwha catalog for complementary perimeter and parking-structure models.
