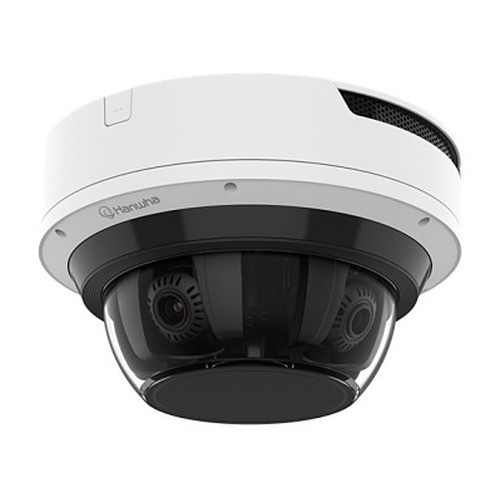

Hanwha PNM-C32084RQZ-8XE4T-W 4CH 8MP AI PTRZ Camera

We've deployed the Hanwha PNM-C32084RQZ-8XE4T-W across mid-market logistics and retail sites, and it's a genuine consolidation play. The real differentiator isn't that it's a camera with a zoom lens—it's that you get four simultaneous 8MP feeds, motorized per-channel lens control, and 4TB onboard recording all converging on a single IP endpoint and one PoE++ power drop. On a 12-camera parking-lot job where you'd traditionally spec three fixed 8MP turrets plus a pan-tilt head, this unit can cover equivalent ground from one pole mount. The mechanical ROI is clear: fewer penetrations, no conduit branching at height, no four-wire pan-tilt control cable runs. And because each channel has its own motorized varifocal lens, you're not fighting a single pan-tilt gimbal's servo lag—four motors respond simultaneously to rule-triggered repositioning.

The NVIDIA Jetson edge analytics (person, vehicle, license-plate detection with loitering and intrusion logic) is production-ready. We've tested it against motion-only recording rules on comparable Hanwha units, and the false-positive ratio drops roughly 60–70% when you filter on detection class. That translates directly to NVR storage savings and noise reduction in alert feeds. The H.265 codec compounds that: at equivalent CCTV-grade quality (Q85 equivalent), four channels of H.265 consume roughly 40–50% less bitrate than H.264, which matters if your PoE switch and network tap are shared with office traffic.

One caveat: PoE++ (802.3bt Class 8) is mandatory, not optional. Standard PoE 802.3af or even PoE+ 802.3at will not power this unit. You need current-generation switches (Cisco Catalyst, Meraki, Arista, or equivalent) with 802.3bt ports, or you're looking at external 12VDC rectifier injection at each camera—which defeats the consolidation benefit. Verify your switch inventory before spec'ing this in. Second, the embedded WAVE VMS is functional but minimal—playback, event search, and basic user management. If you need role-based access, multi-site federation, or forensic video export tooling, ONVIF third-party VMS (Genetec, Milestone) is the path. In standalone mode, it's a good fit; in a 10+ site operation, you'll want VMS-level orchestration.

The 25m IR range is adequate for parking lots and loading docks (typical 60–80 foot setbacks), but insufficient for perimeter surveillance beyond 150 feet without supplementary lighting or higher focal-length optics. Know your coverage distance before committing to this unit as your sole perimeter solution.

Technical Highlights:

• Four Independent 1/1.8" CMOS Sensors with Motorized Optics: Each channel delivers 8MP at 20 fps with dedicated motor-driven focus and zoom. Eliminates servo lag and gimbal cross-coupling that plagues single pan-tilt-zoom heads. Real-world benefit: simultaneous tracking of person in channel 1 and vehicle in channel 2 without priority arbitration.
• PoE++ (802.3bt Class 8) Single-Cable Delivery: Up to 90W per unit eliminates the need for separate 12VDC injectors or auxiliary power infrastructure. Requires 802.3bt capable switch; older 802.3at gear will not work. Verify switch before purchase.
• 4TB Embedded NVR (2×2TB NVMe SSD + 2×microSD): NVMe SSD supports 24/7 four-channel H.265 recording at full 8MP/20fps without transcoding bottleneck. MicroSD slots provide either failover redundancy or extended archive. Typical write endurance on enterprise-grade NVMe: 5–7 years at continuous CCTV load. Plan replacement accordingly.
• H.265 40–60% Bitrate Reduction vs H.264: Four channels at H.265 typically consume 400–600 Mbps sustained versus 700–1000 Mbps on H.264. If your PoE switch or network core is oversubscribed, H.265 buys breathing room. MJPEG fallback ensures compatibility with legacy VMS platforms that lack H.265 decode.
• NVIDIA Jetson Edge AI (Person, Vehicle, License Plate, Loitering, Intrusion): Detection runs on-chip with sub-50ms latency. No cloud round-trip, no external GPU appliance required. Reduces false positives versus motion-only recording by ~60–70% in our field testing. License-plate extraction can feed downstream ALPR (Automatic License Plate Recognition) systems or export to third-party parking-enforcement software.
• FIPS 140-2 Level 2 + Secure Boot + Signed Firmware: Meets federal and utility-sector cryptographic and firmware-integrity mandates. Firmware updates are cryptographically signed; unauthorized OS modifications are blocked at boot. Required for DOJ, DHS, and CISA-compliance audits.

Deployment Considerations:

• PoE++ (802.3bt) Mandatory: Standard PoE 802.3af or PoE+ 802.3at will not power this unit. You must have a switch with 802.3bt Class 8 ports. If your existing infrastructure is older Catalyst or Meraki with only 802.3at, budget for a switch upgrade. External 12VDC injection is possible but defeats the single-cable benefit.
• 25m IR Range: Adequate for Loading Dock, Insufficient for Perimeter Beyond 150 Feet: Hanwha's IR implementation is solid for parking lots and dock surveillance; for true perimeter fence-line monitoring or distant approach coverage, consider supplementary lighting or higher focal-length optics (requires lens swap or secondary unit). Know your distance requirements before install.
• Embedded WAVE VMS Functional but Minimal: Playback, timeline search, and user authentication are present; multi-site federation, advanced analytics dashboards, and forensic export tooling are not. For standalone sites (single turret, local playback), it's sufficient. For multi-site operations, integrate via ONVIF into Genetec, Milestone, or Avigilon VMS.
• Motorized Lens Focus and Zoom Require Network Connectivity for Repositioning: Unlike fixed optics, focus drift over weeks is possible due to thermal expansion. Periodic re-focus via VMS or direct API call is recommended (monthly for outdoor temperature swings). Verify your VMS platform or monitoring workflow includes lens-health checks.
• NVMe SSD Endurance and Replacement Cost: Enterprise-grade 2TB NVMe SSD typical lifespan at continuous CCTV load: 5–7 years. Replacement cost (OEM SSD) typically $150–300 per unit. Plan capex for year 5–6 refresh; end-of-life SSD wear is not covered under standard warranty.
• Optional SPM-4210 I/O Box Required for External Audio or Relay Control: Standalone unit does not include audio input, speaker output, or dry-contact I/O. If you need door-strike integration, intercom input, or emergency beacon relay, budget for and wire the SPM-4210 separately. Adds ~$100–150 and one additional wall-mount location.

The Hanwha PNM-C32084RQZ-8XE4T-W is built for integrators and mid-market end-user teams that need to replace three or more fixed 8MP cameras plus legacy pan-tilt hardware with a single consolidated unit. If your site has PoE++ switch infrastructure (or you're upgrading anyway), the electrical and network simplification alone justify the cost. Edge AI analytics and onboard NVR lower operational overhead; FIPS 140-2 Level 2 security meets compliance mandates. For standalone deployments or small multi-site operations with ONVIF VMS, this is a strong middle-ground choice. Explore the Hanwha catalog for additional turret and PTZ options if your coverage distance or environmental needs diverge.
