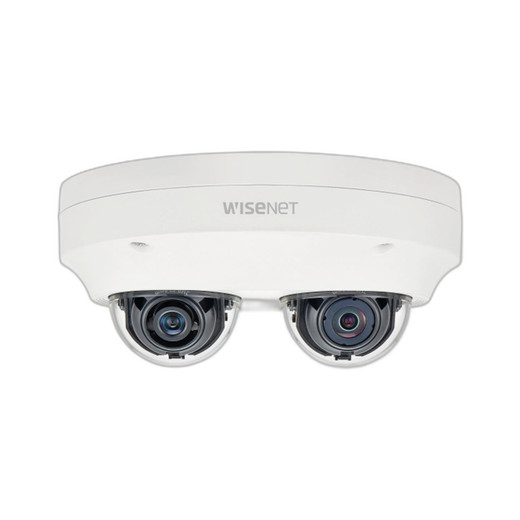

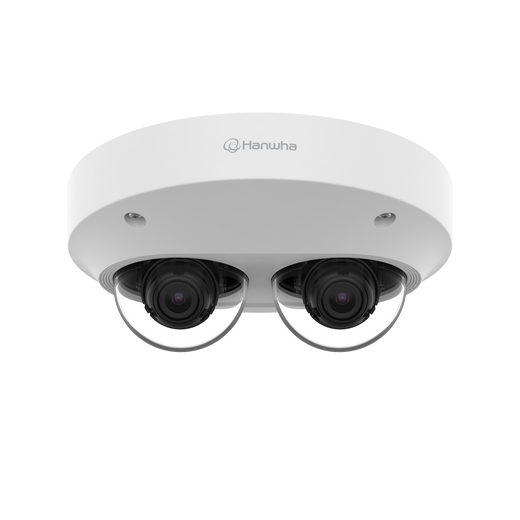

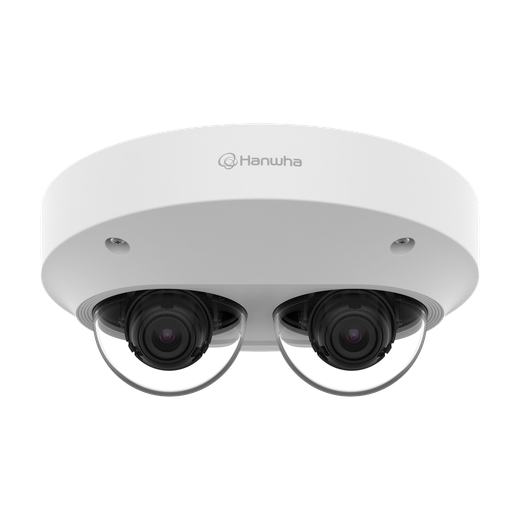

Hanwha PNM-7002VD 2MP Outdoor Dome IP Camera

Hanwha PNM-7002VD 2MP Outdoor Dome IP Camera

The Hanwha PNM-7002VD is a dual-channel 2MP outdoor dome IP camera built for demanding surveillance environments. This weather-sealed solution delivers synchronized 1920×1080 resolution at 60fps across both channels, combining robust construction with advanced analytics and intelligent video compression to meet the needs of integrators and system designers deploying large-scale surveillance networks.

Key Features

• Dual 2MP channels with 1920×1080 resolution at 60fps (H.265/H.264)
• IP66/IK10-rated aluminum dome for extreme weather and impact resistance
• 150dB Wide Dynamic Range with BLC, HLC, WDR, and SSDR backlight compensation
• Automatic day/night switching with thermal night vision
• Dual microSD card slots (256GB each) for edge storage and redundant recording
• WiseStream II intelligent codec optimization to reduce bandwidth consumption
• PoE powered (IEEE 802.3af Class 3)—no external power supply needed
• 32 polygonal privacy masking zones with color and mosaic options

Advanced Video Analytics

Built-in analytics enable intelligent threat detection and response. The camera supports motion detection with 8-point polygonal zones, directional detection, loitering alerts, tampering detection, virtual line crossing, fog detection, and face detection. These analytics trigger immediate alarm events via email notification, FTP file upload, or local SD card recording, enabling proactive security workflows without reliance on backend servers.

Video Compression & Streaming

Support for H.265, H.264 (Main/Baseline/High), and MJPEG codecs ensures broad compatibility with NVR and VMS platforms. Bitrate control options (CBR/VBR) allow bandwidth optimization for bandwidth-constrained networks. Multiple streaming profiles (up to 10) support concurrent unicast (20 users) and multicast delivery. Digital image stabilization and defog technology maintain video clarity in challenging environmental conditions.

Security & Network Integration

The camera implements HTTPS/SSL encryption, digest and login authentication, IP address filtering, and 802.1X authentication (EAP-TLS, EAP-LEAP). Support for IPv4/IPv6, TCP/IP, UDP/IP, RTSP, NTP, DHCP, DNS, DDNS, and SNMPv1/v2c/v3 ensures seamless integration into enterprise network environments. ONVIF Profile S/T and SUNAPI (HTTP API) compatibility simplify third-party application integration.

Deployment & Management

Operating temperature range of -40°C to +55°C and storage range of -50°C to +60°C support global deployment in extreme climates. The compact form factor (197.6×84mm) with 3/4" conduit hole compatibility fits standard gangbox installations. User access logging and configurable camera titles (up to 85 characters) streamline multi-site management. Webpage interface available in 16 languages supports international deployments.

Eden Phillips

The PNM-7002VD addresses a critical gap in outdoor dual-channel surveillance: synchronized high-frame-rate capture in a single rugged form factor. The combination of 150dB WDR, dual microSD slots, and WiseStream II compression makes this camera well-suited for high-motion environments (parking lots, traffic monitoring) where bandwidth and storage efficiency are paramount. PoE Class 3 power delivery and -40°C operation extend deployability to remote outdoor locations.

The integrated analytics suite reduces false alarms through fog and defocus detection, critical for outdoor reliability. Edge storage with dual SD slots provides failover redundancy without additional hardware. For integrators, ONVIF and SUNAPI support minimize vendor lock-in, while SNMPv3 enables secure remote management at scale.
