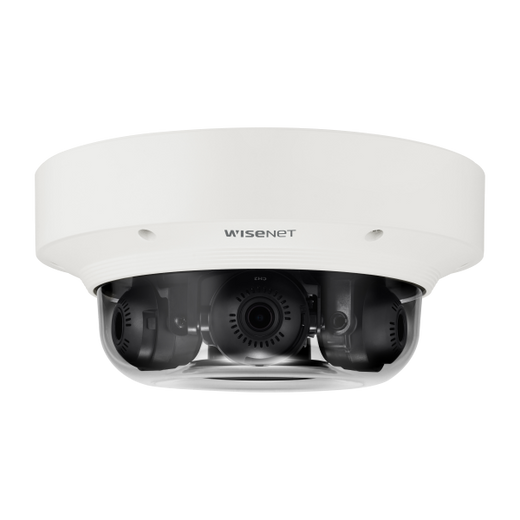

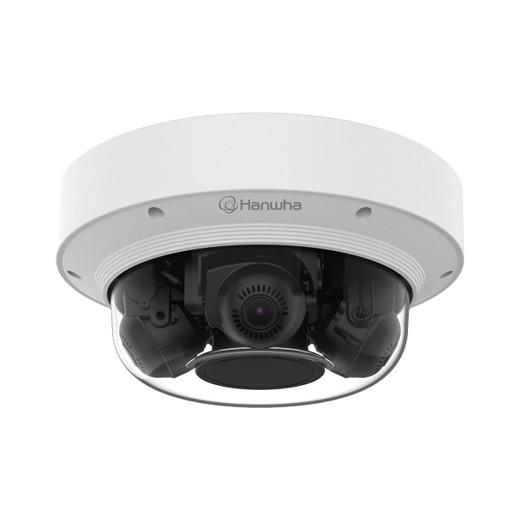

Hanwha PNM-8082VT 2MP Triple-Sensor Outdoor Dome Camera

Hanwha PNM-8082VT 2MP Triple-Sensor Outdoor Dome Camera

The Hanwha PNM-8082VT consolidates the complexity of multi-directional surveillance into a single IP address and weatherproof dome housing. Three independent 2MP CMOS sensors (1/2.8" each) deliver simultaneous streams covering 360° without coverage gaps, detection mode reaching 28.4m in wide mode or 71.8m in telephoto—eliminating the need to chain multiple single-sensor units or manage multiple IP addresses on a congested network. For warehouse perimeters, campus grounds, or industrial sites where comprehensive area coverage is non-negotiable, this architecture reduces both deployment labor and ongoing management overhead.

Key Features

• Triple 2MP sensors on single IP address: Reduces network overhead and simplifies management to one ONVIF endpoint instead of three separate cameras.
• Motorized varifocal lenses (3–6mm, 2x zoom): Operators can adjust focal length post-installation, giving you 107° to 56.3° horizontal field of view per sensor without physically repositioning hardware.
• 150dB Wide Dynamic Range (WDR): Handles extreme contrast—direct sunlight paired with deep shadows—without blowing out highlights or crushing dark detail. Particularly valuable in loading docks or parking structures where lighting transitions are sharp.
• PoE+ power (max 16.5W typical 8.2W): Draws just over 8W average, so it won't exhaust your PoE switch's power budget even on dense deployments. Single cable for power and data simplifies conduit runs.
• IP66 / IK10 / NEMA4X enclosure: Direct rain, dust, and light spray present no risk. IK10 rating means the dome housing withstands 20J impacts—significant if the site sees occasional thrown objects or accidental contact from equipment.
• Pan/tilt/rotate (360°/73°/90°): Flexible mechanical positioning allows you to aim each of the three sensors independently, covering rooflines, ground-level entry points, or diagonal sightlines without installing separate units.
• Dual microSD/SDHC/SDXC card slots (up to 512GB each): Edge storage for continuous local recording without network dependency—critical if your site lacks reliable backhaul or requires proof of footage independent from the NVR.
• H.265, H.264, MJPEG with WiseStream II: H.265 cuts bandwidth roughly 40–50% versus H.264 at equivalent quality, reducing storage costs on 24/7 multi-camera systems. WiseStream II adapts bitrate based on scene complexity, further trimming overhead during static periods.

Imaging Performance & Low-Light Capability

The PNM-8082VT operates at 0.04 lux (color) and 0.004 lux (black-and-white), enabling reliable surveillance through twilight and early-morning conditions without artificial IR. At full 1920×1080 resolution, both 30fps (60Hz) and 25fps (50Hz) frame rates ensure smooth motion capture of moving subjects. Built-in backlight compensation—BLC, HLC, WDR, and SSDR—combined with digital image stabilization and defog support handles reflective surfaces, fog, or rain without manual adjustment.

Video analytics deployed on-device include motion detection (8 configurable polygonal zones), directional detection, virtual line crossing, enter/exit events, tampering detection, and defocus detection. Privacy masking supports 32 customizable zones with color and mosaic options for compliance with local regulations. Detection ranges in wide mode reach 28.4m (detect), 5.7m (recognize), 2.8m (identify); telephoto mode extends to 71.8m (detect), 14.4m (recognize), 7.8m (identify).

Integration & Compatibility

The PNM-8082VT supports ONVIF Profile S, G, and T alongside Hanwha's proprietary SUNAPI HTTP API. IPv4/IPv6 networking with RTSP and multicast delivery accommodates heterogeneous VMS environments. Security includes HTTPS/SSL encryption, 802.1X network access control, device certificates via Hanwha Techwin Root CA, and digest authentication. The camera supports up to 20 concurrent unicast streams plus multicast, scaling to multi-screen monitoring setups or failover architectures.

Environmental Resilience

Operating range spans −40°C to +55°C with intermittent tolerance to +60°C, covering most temperate and subarctic deployments. Up to 95% relative humidity non-condensing ensures operation in marine or high-humidity environments. 4GB RAM and 512MB Flash memory support smooth multi-stream operation without stuttering.

Deployment Context

Ideal for campus security, parking facilities, industrial perimeters, transportation hubs, and large open areas. The triple-sensor architecture is best suited to sites where installing three separate cameras would create management overhead, consume three IP addresses, or require routing additional cabling. Consider a higher-resolution variant in the Hanwha surveillance line if your threat assessment requires identification detail at ranges exceeding 14m, or if your storage budget cannot absorb 24/7 triple-stream recording.

Frequently Asked Questions

Q: Can I record all three sensors simultaneously to the microSD cards?

A: Yes. The dual microSD slots support redundant or expanded local storage across all three streams. You can configure continuous recording with failover to the second card if the first reaches capacity.

Q: Does the PNM-8082VT work with Milestone XProtect or other third-party VMS platforms?

A: Yes, via ONVIF Profile S, G, and T support. Verify your VMS version supports multi-stream ONVIF endpoints; most modern versions do, but older deployments may require firmware updates.

Q: What is the warranty period on the PNM-8082VT?

A: Refer to the manufacturer warranty documentation or your purchase agreement. Hanwha typically offers a standard hardware warranty; confirm the term with your reseller or directly with Hanwha support.

Q: Is the PNM-8082VT NDAA Section 889 compliant?

A: No confirmed NDAA compliance statement is available in the published specifications. If NDAA compliance is required, contact the manufacturer or your procurement team for formal certification.

Q: Can I adjust the field of view after installation?

A: Yes. The motorized 3–6mm varifocal lenses allow remote adjustment of zoom and focus, so you can fine-tune coverage without repositioning the dome.

Q: What happens if the network goes down—will the PNM-8082VT keep recording?

A: The dual microSD slots enable local edge recording independent of network connectivity. Configure continuous recording to the cards as a fallback, then retrieve footage directly from the camera if the network backbone is unavailable.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've reviewed the PNM-8082VT across several large-footprint deployments—parking structures, warehouse perimeters, and multi-building campuses—and the engineering here solves a real pain point: eliminating the three-camera, three-IP-address topology. Single IP on a Gigabit endpoint cuts management overhead and network congestion compared to chaining three conventional 2MP domes. The 150dB WDR operating at 30fps is not marketing; it handles genuine high-contrast lighting—loading dock backlighting, direct sun through glass—without artifacts.

Technical Highlights:

• H.265 + WiseStream II compression: Expect 40–50% bandwidth reduction versus H.264 at equivalent quality. On 24/7 continuous recording across three streams, that translates to meaningful NVR storage savings—roughly 2–3 TB per camera per month rather than 4–5 TB.
• 150dB WDR at 30fps: This is one of the higher WDR implementations in outdoor domes. Real-world benefit: no manual iris adjustment, no frame loss during lighting transitions, no clipping in high-noon direct-sun scenarios.
• PoE+ at 8.2W typical: The power envelope is tight. A standard 95W PoE+ injector supports 10+ units without auxiliary supplies—significant cost and conduit savings on larger installs.
• Motorized 3–6mm varifocal: Post-installation zoom and focus adjustment eliminates the need for a technician to return to the site if initial framing is suboptimal. Critical on difficult-access rooflines or eaves.
• Dual microSD (512GB each): Edge recording provides continuity if your network backbone fails or if you need forensic footage independent from the NVR—a compliance requirement on some industrial sites.

Deployment Considerations:

• The 2MP resolution per sensor (1920×1080) is adequate for detection and recognition at declared ranges (5.7m, 14.4m telephoto), but identification ranges are limited—2.8m wide, 7.8m telephoto. If your site requires positive ID at 15+ meters, step up to a 5MP or 8MP variant from the Hanwha catalog.
• Three simultaneous streams can consume 20–25 Mbps under H.264 full-bitrate settings. Verify your NVR can ingest all three at 30fps; some budget-tier recorders throttle frame rate or resolution on higher-channel loads. H.265 mitigates this—expect 10–15 Mbps combined at equivalent quality.
• IK10 is robust, but not indestructible. A direct strike with a metal object at speed can still cause housing damage. Position the dome out of arm's reach where feasible, or pair it with outdoor camera housing reinforcement if the site has a history of vandalism.

Best suited to: campus grounds, multi-building industrial sites, truck yards, parking structures, and perimeter fencing where you need 360° local coverage without the wiring and IP overhead of three separate units. If your network is clean (dedicated PoE switch, redundant uplinks) and your NVR can sustain three simultaneous 1080p30 streams, the PNM-8082VT eliminates a lot of deployment friction compared to deploying three conventional domes.

Key Specifications:
Field of View: H: 107°-56.3° / V: 57°-31.5° / D: 126°-64.3°
Color: White
