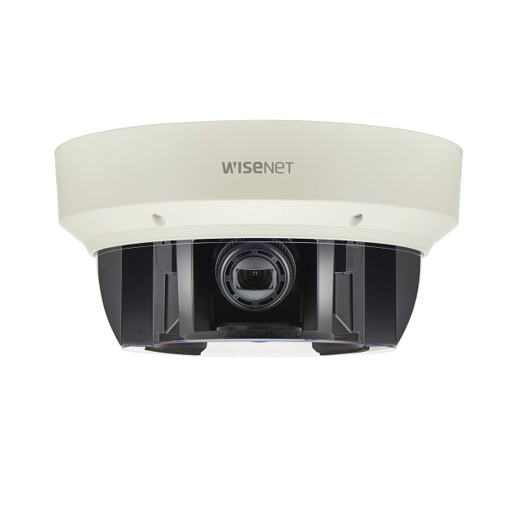

Hanwha PNM-9084RQZ1 2MP Multi-Sensor Network Camera

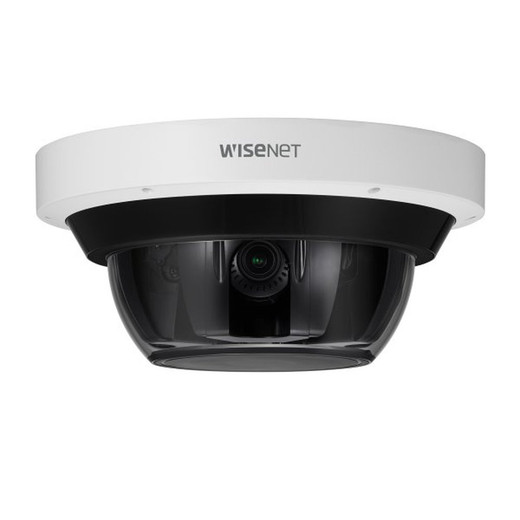

Hanwha PNM-9084RQZ1 RB Multi-Sensor Network Camera

The Hanwha PNM-9084RQZ1 RB is a 2MP multi-sensor network camera engineered to deliver comprehensive coverage using a single device. By integrating multiple imaging sensors in one compact unit with a single network cable and IP address, this camera replaces several conventional cameras, significantly reducing infrastructure complexity, installation costs, and cable management overhead while expanding coverage area.

Key Features

• 2MP resolution at up to 60 fps with H.265, H.264, and MJPEG codec support
• Motorized PTRZ (Pan, Tilt, Roll, Zoom) with 3.2–10mm varifocal lens for adaptive framing
• 30m IR viewable length for reliable low-light and night vision operation
• IP66 weatherproofing and IK10 vandal resistance for indoor and outdoor environments
• Multi-streaming capability for simultaneous client connections at different resolutions and frame rates
• Integrated video analytics and WiseStream intelligent bandwidth management
• NEMA 4X rated for harsh environmental conditions

Technical Performance

The camera delivers 2MP imaging at maximum 60 fps, providing smooth motion capture for security and monitoring applications. The motorized varifocal lens (3.1x zoom) enables flexible scene framing without repositioning the camera body. H.265 video compression optimizes bandwidth utilization while H.264 and MJPEG support ensure compatibility across diverse network infrastructure and legacy systems.

With 30m IR illumination range, the PNM-9084RQZ1 maintains visibility in complete darkness, making it suitable for 24/7 surveillance. The multi-sensor architecture captures multiple perspectives simultaneously, eliminating blind spots and reducing the number of devices required for comprehensive area coverage.

Durability and Environmental Rating

Rated IP66, this camera withstands harsh weather including heavy rain, snow, and dust ingress. The IK10 impact rating ensures resistance to vandalism and physical damage. NEMA 4X certification provides additional protection in corrosive or demanding outdoor environments, making it suitable for industrial facilities, parking structures, and coastal installations.

Advanced Video Management

WiseStream intelligent video analytics automatically adjusts bitrate based on scene activity, reducing storage requirements without compromising security coverage. Multi-streaming allows simultaneous delivery of video at different resolutions and frame rates to multiple clients, supporting both real-time monitoring and archival workflows.

Jerry Tildsen

The multi-sensor configuration of the PNM-9084RQZ1 RB offers significant ROI advantages over traditional multi-camera deployments. By consolidating multiple viewing angles into a single networked device, organizations reduce PoE injector requirements, network switch port consumption, and physical installation labor. The motorized PTRZ capability adds operational flexibility for dynamic scene monitoring without hardware repositioning.

The 60 fps capture at 2MP resolution provides adequate motion smoothness for vehicle identification and pedestrian tracking. H.265 codec support delivers 40–50% bandwidth savings compared to H.264, particularly valuable in bandwidth-constrained or high-channel-density deployments. The 30m IR range covers typical perimeter and entrance scenarios; however, applications requiring longer-range night vision should consider supplementary lighting or higher-resolution thermal alternatives.

WiseStream bandwidth optimization is particularly effective in scenes with variable activity levels, such as parking lots or building entrances where motion is intermittent. This reduces storage costs while maintaining investigative detail during security events.

Recommended Applications

• Parking lots and structure monitoring
• Building perimeters and entrances
• Industrial facility surveillance
• Transportation hubs and transit stations
• Retail and commercial property protection
