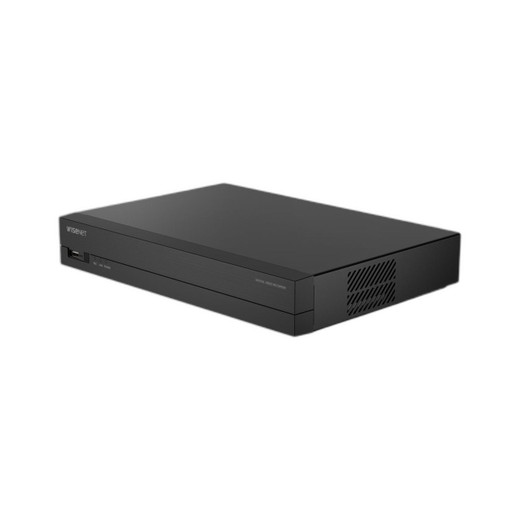

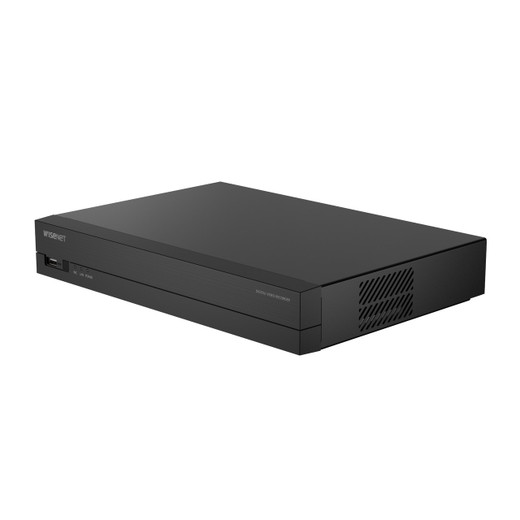

Hanwha ARD-810 8-Channel Pentabrid AHD/TVI/CVI/CVBS/IP Recorder

Hanwha ARD-810 8-Channel Pentabrid AHD/TVI/CVI/CVBS/IP Recorder

The Hanwha ARD-810 is an 8-channel pentabrid recorder purpose-built for mixed surveillance deployments where analog camera infrastructure coexists with newer IP systems. Unlike single-standard recorders, the ARD-810 accepts AHD, HD TVI, HD CVI, and CVBS analog signals on its primary inputs, plus 2 additional IP channels for a maximum of 10 total recording streams. This matters if you're managing a facility that hasn't fully migrated from coax-based cameras — you avoid the cost and labor of forklift replacements while gradually integrating network cameras.

Key Features

• 8 analog inputs with pentabrid signal support: Accepts AHD, HD TVI, HD CVI, and CVBS on the same channels. Translation: plug in older CVBS domes alongside newer AHD turrets without rewiring infrastructure. Up to 10 total channels when you add 2 IP inputs via the network interface.
• Resolution support up to 5MP on analog inputs: Records at 5MP, 4MP, and 1080p depending on your camera type and desired frame rate. Meaningful because older analog systems often run 1MP or 2MP — stepping up to 5MP analog (AHD) provides measurably better detail for forensic playback and license-plate recognition without network overhead.
• H.265, H.264, and MJPEG compression: H.265 cuts storage footprint roughly 40–60% compared to H.264 on the same resolution and frame rate. On 24/7 recording across 8 channels, that compression choice directly affects HDD capacity and backup window.
• 40 Mbps maximum recording bandwidth: Total throughput across all channels combined. For a mixed deployment, this means you can't simultaneously record all 10 channels at maximum resolution and frame rate — prioritize motion detection and scheduled modes to stay within budget.
• Dual HDMI and VGA outputs with 4K (3840 x 2160) display support: Connect two independent displays simultaneously for redundant monitoring or split-screen layouts. Multi-screen viewing (up to 12-division layouts) reduces desk space and lets you monitor more cameras without splitting software instances.
• Up to 6TB SATA HDD storage with automatic backup in BU, EXE, and AVI formats: Native codec backups (BU and EXE) preserve recordings without re-encoding — faster export for evidence chains. AVI format ensures compatibility with third-party playback tools if you need to hand off footage to legal or law enforcement.
• Motion detection, video loss, tampering, and network camera analytics integration: Built-in event logic doesn't require external VMS — you can trigger recording, relay outputs, or mobile alerts based on motion alone. Network camera analytics (from IP camera firmware) integrate directly, so AI-powered people detection on an IP camera can trigger recording on analog channels via the recorder.
• 10-channel simultaneous playback with advanced search: Scrub footage by date/time, motion area, or smart analytics (virtual line crossing, directional detection). Useful when you need to audit multiple angles in sync without exporting and splicing clips.
• Two-way audio with G.711 compression: Audio input from cameras or external line feeds. G.711 is CPU-efficient on embedded systems, so audio doesn't compete with video recording bandwidth.
• 4 alarm inputs and 1 relay output via Pelco-C/D/P coaxial control: Integrate door sensors, panic buttons, or external relays without additional network infrastructure. Coaxial control means signal runs alongside your analog video — single cable discipline.

Performance & Recording Behavior

Frame rates scale with resolution: expect 12 fps at 5MP half-resolution, 15 fps at 4MP half-resolution, and 15 fps at 2MP full-resolution from analog cameras. These are not marketing figures — they're hardware-limited by the 40 Mbps bandwidth cap. If you need 30 fps across all 8 channels, you'll be recording at lower resolution or accepting H.265 codec overhead.

The ARD-810 handles up to 4 simultaneous local users (via HDMI/VGA/USB keyboard), 3 remote search users, 10 remote live unicast streams, and 20 remote multicast streams. Multicast is bandwidth-efficient for large monitoring centers but requires network infrastructure support.

Integration & Compatibility

The recorder runs embedded Linux and supports ONVIF and Wisenet SUNAPI protocols for third-party network video recorder integration with Milestone XProtect, Genetec, and other VMS platforms. Remote access via web viewer works on Windows 10, Mac OS 11+, and browsers including Chrome, Edge, and Safari. iOS and Android mobile apps support multi-profile streaming (up to 10 channels), 4-channel playback, and event push notifications — useful for off-site monitoring without additional VMS licensing.

Wisenet DDNS enables reliable remote access without static IP configuration. Network security includes IP address filtering, 802.1x authentication, and encryption of credentials and transmissions using Hanwha Techwin Root CA certificates. Firmware signing prevents unauthorized modifications.

The ARD-810 deploys quickly: automatic camera registration detects connected analog cameras and wizard-guided setup reduces provisioning time in retail, warehouse, and hospitality environments where mixed-generation systems require centralized management without complex VMS deployment.

Frequently Asked Questions

Q: Can I record all 8 analog channels plus 2 IP channels at the same time?

A: Yes, the ARD-810 supports 10 total recording channels. However, your frame rate and resolution will be constrained by the 40 Mbps total bandwidth. High-resolution simultaneous recording across all 10 channels requires careful codec selection and event-driven triggering rather than continuous 24/7 full-resolution capture.

Q: Does the ARD-810 work with IP cameras from vendors other than Hanwha?

A: Yes. The ARD-810 supports ONVIF Profile-S compliant cameras, which includes most mainstream IP camera manufacturers. ONVIF ensures basic video streaming, event integration, and PTZ control. Some vendor-specific analytics or firmware features may not cross over, but video recording and basic search will work.

Q: What happens to recording if a hard drive fails?

A: The ARD-810 supports up to 6TB SATA HDD storage, but there is no built-in RAID or redundancy mentioned in the specification. If a single drive fails, you lose stored footage. Plan for external backup using the BU or AVI export formats for critical events or consider adding a secondary recorder for redundancy in high-availability deployments.

Q: Is the ARD-810 NDAA Section 889 compliant?

A: Hanwha is a South Korean manufacturer, so the ARD-810 does not qualify as a covered or excepted article under NDAA Section 889. If your project has federal compliance requirements, you will need a recorder from a qualifying US-based manufacturer.

Q: Can I expand beyond 10 total channels?

A: The ARD-810 is fixed at 8 analog + 2 IP channels. If you need more recording capacity, you must deploy a second recorder and manage them separately or use a VMS to unify the interface.

Q: What codec should I use for 24/7 recording on a budget?

A: H.265 is the clear choice for cost-per-TB. At equivalent quality and resolution, H.265 uses roughly 40–60% less storage than H.264. The trade-off is slightly higher CPU load on playback, but embedded Linux on the ARD-810 handles H.265 decoding efficiently. For 24/7 mixed-resolution deployments, H.265 can cut your HDD refresh cycle by years.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ARD-810 fills a real gap for organizations stuck between analog and IP—you get to keep your coax runs and older cameras working while layering in network cameras at your own pace. The pentabrid architecture means no separate recorders or voodoo software to tie them together. That said, the 40 Mbps bandwidth constraint is not a marketing fiction; it's a hardware wall. If your facility has 8 cameras all demanding 5MP 30fps simultaneously, you'll hit the ceiling. Plan your frame rates and resolutions upfront, and use the built-in motion detection to keep non-critical footage at lower bitrates during quiet hours.

Technical Highlights:

• H.265 codec support: Cuts recorded data roughly in half versus H.264 at the same resolution—on a 6TB drive, that's the difference between 30 days and 60 days of 24/7 recording depending on scene complexity and frame rate. Real cost savings on HDD replacement cycles.
• 10-channel simultaneous playback with virtual-line analytics search: You can scrub motion across all angles in sync without exporting separate files. For incident review, that saves hours of timeline reconstruction.
• Dual display outputs (HDMI + VGA) with independent layouts: Means you can run a 12-way grid on one monitor and a single full-screen camera on another—useful in security operations centers where one wall is for situational awareness and a desk monitor handles forensics.
• ONVIF + Wisenet SUNAPI: Bridges third-party VMS platforms without vendor lock-in. Milestone and Genetec shops can ingest the ARD-810 as a native device, not a generic RTSP blob.

Deployment Considerations:

• Bandwidth bottleneck: 40 Mbps across 10 channels is a hard limit. If your project scope includes 8 cameras at 5MP 30fps full-time, calculate bitrate requirements before purchase. You may need event-triggered recording or frame-rate reduction at night.
• No RAID—single points of failure: The ARD-810 does not list RAID or redundant storage. A single HDD failure wipes your history. For critical custody chain footage, plan external backup (BU export) or dual-recorder failover.
• Embedded Linux with automatic camera registration: Simplifies initial setup in retail or warehouse environments, but you sacrifice the granular configuration depth of purpose-built NVR operating systems. Firmware updates are straightforward, but custom integrations are limited.

The ARD-810 is your tool when you have a hybrid installed base—coax cameras that work, new IP cameras you're rolling in, and no appetite for a forklift replacement. Warehouses, retail chains, and hospitality groups with distributed locations often fit this profile. Size your recorder based on event-driven recording (motion + analytics) rather than full-time 30fps on all channels, and you'll avoid surprises with storage and bandwidth.
