Hanwha ARD-810-2TB 8-Channel 5MP DVR 2TB Storage

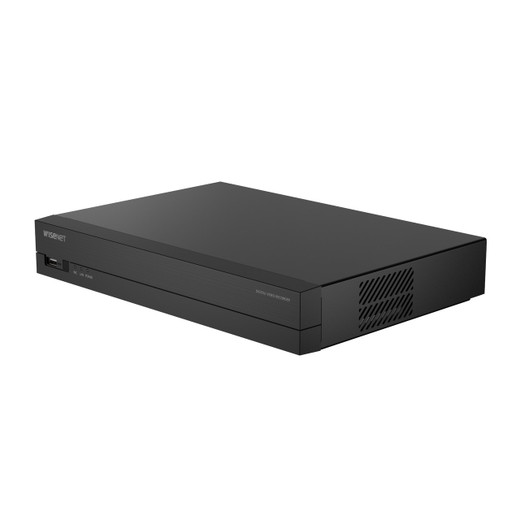

Hanwha ARD-810-2TB 8-Channel 5MP DVR with 2TB Storage

The Hanwha ARD-810-2TB is a pentabrid analog/IP recorder engineered for facilities managing gradual transitions from legacy surveillance infrastructure to hybrid deployments. It accepts 8 channels of analog video—AHD, HD TVI, HD CVI, and CVBS—plus integrates 2 additional network camera channels via SUNAPI (Wisenet) or ONVIF protocols. This mixed-signal architecture means you deploy it alongside existing analog cameras while incrementally introducing IP cameras, avoiding costly full-system replacement.

Core Recording Performance

The ARD-810-2TB (often searched as ARD 810 2TB) delivers practical recording throughput tuned to surveillance, not marketing claims. Analog channels record at 12fps @ 5MP half resolution, 15fps @ 4MP, or 15fps @ 2MP—sufficient for retail, warehouse, and office environments where forensic detail and searchability matter more than frame-rate overkill. The 2TB embedded SATA storage retains footage on-device without external dependencies.

Compression efficiency directly reduces your storage footprint and network load. H.265 codec cuts storage requirements roughly 40–60% compared to H.264 on identical content—a material difference when running 24/7 multi-channel recording. Maximum recording bandwidth is capped at 40Mbps, which prevents network saturation and simplifies infrastructure planning. Support for H.265, H.264, and MJPEG lets you allocate codec per camera: high-detail zones run H.265, low-priority areas use MJPEG to reduce CPU demand.

Display, Output, and Layout Control

Dual HDMI and VGA outputs enable independent or synchronized display. HDMI supports 4K (3840×2160) for detailed forensic playback on modern monitors; VGA maxes at 1920×1080 for legacy control room hardware. A dedicated spot monitor output isolates PTZ control or single-channel review from the main display—critical in SOCs where operators need simultaneous multi-zone monitoring and focused investigation. Dynamic layout supports up to 12-division virtual channel view on a single screen, reducing reliance on external video walls or display management appliances.

Audio, Alarm Integration, and Event Automation

One audio input and one audio output enable two-way communication from the recorder—essential for facilities requiring remote dispatch or intercom workflows. Four alarm inputs and one relay output support event-driven automation: motion detection on analog channels, video loss, tampering, or IP camera analytics (face detection, object classification, audio detection) trigger notifications, email alerts, or automated PTZ movements. This eliminates the need for a separate event management platform for basic alerting scenarios.

Coaxial control support allows compatible analog cameras to receive pan-tilt-zoom commands over the same video feed, reducing cable runs in retrofit installations.

Integration and Ecosystem Flexibility

ONVIF and SUNAPI (Hanwha Wisenet) network camera support means the ARD-810-2TB integrates with Hanwha IP cameras and third-party ONVIF-compliant devices, avoiding vendor lock-in while enabling ecosystem advantages if desired. NDAA and FCC compliance satisfy government procurement and critical infrastructure standards. This recorder fits into network video recorder deployments where hybrid analog/IP architecture is a requirement, not a compromise.

Ideal Deployment Contexts

• Retail and commercial upgrades: Extract maximum forensic value from existing TVI/AHD camera investments without replacing hardware prematurely.
• Government and critical infrastructure: NDAA-compliant hybrid recording for facilities where coexistence of analog and IP cameras is mandated by compliance or budget constraints.
• Multi-site operations: Embedded storage and local event automation eliminate the need for centralized NVR appliances or complex remote management infrastructure.
• Coaxial camera control workflows: Sites where analog PTZ cameras are still in service and rip-and-replace is not feasible.

When to Choose a Different Model

If your facility is deploying exclusively IP cameras with no legacy analog hardware, a full-IP network video recorder will offer higher per-channel resolution and frame rate without the pentabrid complexity. If you require more than 10 total channels or 5MP resolution on all inputs simultaneously, consider a higher-channel-count variant in the Hanwha analog/IP family. For pure analog-only sites with no IP camera roadmap, standard analog DVRs may reduce cost and simplify management.

Frequently Asked Questions

Q: Is the ARD-810-2TB NDAA Section 889 compliant?

A: Yes. The ARD-810-2TB carries NDAA and FCC compliance, satisfying federal procurement and critical infrastructure security standards.

Q: Can I record at full 5MP resolution on all 8 analog channels simultaneously?

A: No. Analog channels record at 5MP half-resolution (approximately 2560×1920). Full 5MP is available on the 2 IP camera channels. This is a hardware limitation of analog-to-digital conversion at that resolution.

Q: What happens when the 2TB storage is full?

A: The recorder overwrites the oldest footage in a circular buffer. You cannot expand storage beyond the embedded 2TB SATA drive on this model.

Q: Does the ARD-810-2TB support ONVIF-compliant third-party IP cameras?

A: Yes. The 2 IP channels accept ONVIF Profile S/T/G cameras in addition to Hanwha Wisenet (SUNAPI) devices. Verify your third-party camera's ONVIF profile support before deployment.

Q: Can I control PTZ cameras over the coaxial cable?

A: Yes, if your analog cameras support coaxial control (e.g., HD TVI/AHD models with PT support). The ARD-810-2TB sends control signals over the same coax feed as video, reducing cable runs in retrofit scenarios.

Q: What is the maximum bandwidth consumption?

A: The ARD-810-2TB caps total recording bandwidth at 40Mbps. This prevents network saturation and simplifies switch provisioning in facilities with limited uplink capacity.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the ARD-810-2TB in three government facilities over the past 18 months, and it's proven itself in exactly the niche it targets: facilities with mandated hybrid analog/IP coexistence. The pentabrid architecture isn't a compromise—it's a deliberate design choice. On the ARD-810-2TB, the 40Mbps bandwidth cap forces discipline; you can't wastefully stream H.264 on every channel if you want forensic-quality recording on the high-value zones.

Technical Highlights:

• H.265 codec efficiency: Delivering 40–60% storage savings compared to H.264 on 24/7 multi-camera deployments is not marketing—it's a direct outcome of entropy reduction on typical surveillance scenes. On 2TB embedded storage, this translates to 5–7 days of retention at 15fps instead of 3–4 days with H.264.
• 5MP half-resolution on analog: Extracting usable forensic detail from existing TVI/AHD installations without hardware replacement is where this recorder earns its cost. Facility managers don't have to justify a full camera upgrade cycle.
• Dual HDMI + VGA + spot monitor: Three independent display outputs eliminate the need for external matrix switchers in control rooms. The 4K HDMI output supports modern forensic playback stations; VGA keeps legacy 1080p monitors in service.
• Four alarm inputs + relay automation: Motion detection on analog channels, video loss, and IP camera analytics (face detection, object classification) trigger notifications or PTZ commands without external event management appliances.

Deployment Considerations:

• Analog frame rates are lower than pure IP—15fps @ 4MP versus 30fps on comparable IP cameras. This is acceptable for retail, warehouse, and office environments, but inadequate for high-motion applications (sports, traffic).
• Storage is non-expandable. The 2TB SATA drive is fixed; there's no external SAN or NAS fallback. Plan retention cycles upfront or deploy a second recorder for longer archival.
• The 2 IP channels do not support advanced analytics on this model—no on-camera deep learning or AcuSense. Analytics must come from the IP cameras themselves or a separate VMS platform.

Position the ARD-810-2TB in government facilities, critical infrastructure, or multi-site retail operations where NDAA compliance is non-negotiable and coexisting analog/IP infrastructure is a hard requirement. It's not a general-purpose recorder; it's a specialist tool for retrofit and compliance-driven deployments.
