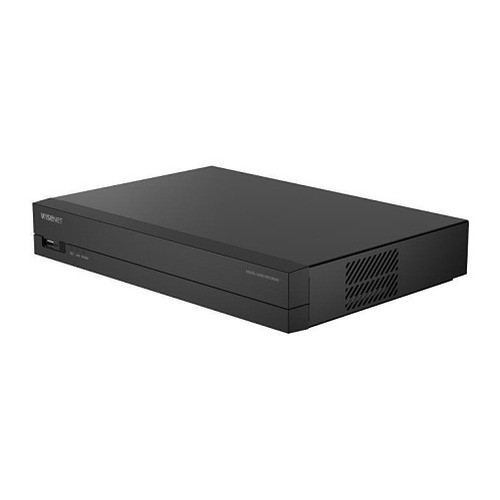

Hanwha ARD-410 4-Channel Pentabrid AHD/TVI/CVI/CVBS/IP Recorder

Hanwha ARD-410 4-Channel Pentabrid AHD/TVI/CVI/CVBS/IP Recorder

The Hanwha ARD-410 is a versatile 4-channel pentabrid video recorder designed for seamless integration with legacy analog systems and modern IP cameras. Supporting AHD, HD TVI, HD CVI, CVBS, and IP inputs, this compact recorder provides organizations with flexible video surveillance solutions that protect infrastructure while maintaining backward compatibility with existing camera investments.

Key Features

• 4-channel analog input (BNC) supporting AHD 5MP Half, 4MP Half, 1080p; HD TVI 5MP Half, 4MP Half, 1080p; HD CVI 5MP Half, 4MP Half, 1080p; and CVBS NTSC/PAL
• Expandable up to 6 total channels with 2 additional network camera inputs (SUNAPI/Wisenet and ONVIF protocol support)
• Advanced multi-codec compression: H.265, H.264, and MJPEG for optimized bandwidth and storage efficiency
• Maximum recording bandwidth of 30 Mbps supports continuous monitoring without network bottlenecks
• Single 3.5-inch SATA HDD slot accommodating up to 6TB storage capacity
• Dual display outputs: HDMI (4K resolution support) and VGA with flexible single or clone mode configuration
• Up to 6-channel simultaneous playback on local monitor and 6-channel playback via CMS platform

Recording & Event Management

The ARD-410 delivers flexible recording modes including manual, continuous schedule, event-triggered (with pre/post recording), and dual-track options. Recording rates reach 12fps at 5MP Half resolution, 15fps at 4MP Half, and 15fps at 2MP. Comprehensive event detection includes motion detection, video loss, tampering alerts from analog cameras, plus advanced network camera events such as video analytics, face detection, and audio detection. Triggered actions can execute e-mail notifications, event push alerts, PTZ preset positioning, alarm outputs, buzzer activation, FTP uploads, and system shutdown commands.

Search, Playback & Backup

Intuitive content discovery leverages calendar-based date/time search, event log filtering, text-based search (POS integration), and intelligent smart search with virtual line direction tracking and enter/exit analytics. Playback controls offer variable speed options from x256 fast forward to x1/8 slow motion. Backup functionality supports BU, EXE (with embedded player), and AVI formats with up to 6-channel simultaneous export and integrated date/time/title overlay.

Remote Access & Mobile Support

The system supports up to 4 simultaneous local and remote users with granular access controls. Remote search capacity accommodates 3 users, live unicast supports 10 users, and multicast extends to 20 concurrent streams. Mobile platforms (iOS and Android) enable 6-channel live viewing with multi-profile support and 4-channel playback at up to 2MP resolution, complemented by event push notifications. Web viewer compatibility includes Windows 10, Mac OS 11+, with Chrome, Edge, and Safari browser support.

Security & Integration

Multi-layer security includes IP address filtering, comprehensive user access logging, 802.1x authentication, encryption for ID/password, recordings, transmission, and backups, plus Hanwha Techwin Root CA device certificates. Comprehensive protocol support (TCP/IP, UDP, RTP, RTSP, HTTP, DHCP, PPPoE, SMTP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF Profile-S, SUNAPI) enables straightforward third-party VMS integration via CGI commands. Wisenet DDNS service facilitates secure remote connectivity without static IP requirements.

Physical & Operational Specifications

Measuring 300 x 47 x 208.7mm and weighing 1.1kg (excluding HDD), the ARD-410 features a compact metal chassis ideal for control room or edge deployment. Four alarm inputs and one relay output enable integration with external sensors and controls. Coaxial control (CVBS Pelco-C, AHD, CVI, TVI) supports PTZ cameras with 300 configurable presets via GUI, web viewer, SSM, or mobile platforms. Power consumption reaches maximum 19.2W with a 6TB HDD installed, operating reliably across 0–40°C ambient temperatures at 20–85% relative humidity. Multiple language support (English, French, German, Spanish, Russian, Korean, Chinese, Japanese, Thai, and 13 additional languages) accommodates global deployments.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ARD-410 addresses a critical market segment: organizations transitioning from analog surveillance to IP-based systems without replacing working infrastructure. Its pentabrid architecture eliminates costly forklift upgrades by allowing analog and IP cameras to coexist on the same recorder. The 30 Mbps bandwidth cap and H.265 codec support optimize storage, delivering enterprise-grade compression without licensing complexity.

The recorder's ability to expand from 4 to 6 channels through IP integration, combined with intelligent event triggering and ONVIF/SUNAPI protocol compatibility, positions it as a practical solution for small-to-medium facilities, retail locations, and edge deployments where simplicity and cost-effectiveness matter. The inclusion of dual-track recording, advanced smart search with directional analytics, and ARB redundancy support demonstrates Hanwha's commitment to reliability. One consideration: the single HDD slot limits scalability compared to larger enterprise recorders, making the ARD-410 most suitable for environments with modest storage retention requirements.
