Hanwha ARD-1610-4TB 16-Channel Pentabrid DVR 4TB

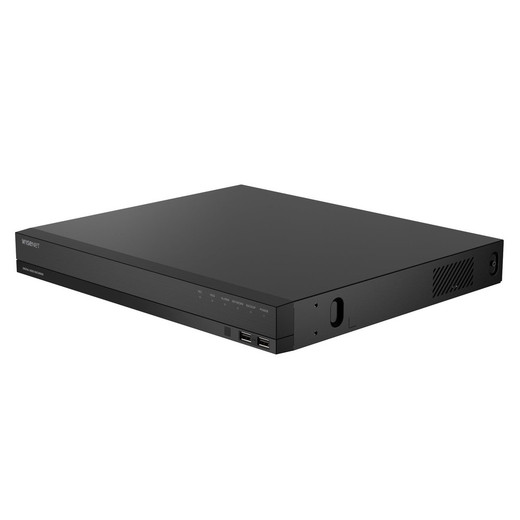

Hanwha ARD-1610-4TB 16-Channel Pentabrid DVR

The Hanwha ARD-1610-4TB is a professional-grade 16-channel pentabrid DVR engineered to handle mixed analog and IP camera deployments in a single compact recorder. This matters because most enterprise surveillance environments don't rip-and-replace infrastructure; they migrate gradually. The ARD-1610-4TB accepts 16 analog inputs (AHD, TVI, CVI, or CVBS standards) plus 2 network camera channels for up to 18 total inputs. Whether you're transitioning a retail chain from analog to IP, managing a multi-tenant facility with legacy equipment, or deploying across distributed warehouse locations with mixed camera generations, this recorder eliminates the need for parallel infrastructure during the handoff.

Key Features

• Pentabrid Input Architecture: Accepts AHD (5MP Half, 4MP Half, 1080p), HD TVI (5MP Half, 4MP Half, 1080p), HD CVI (5MP Half, 4MP Half, 1080p), and CVBS (NTSC/PAL) analog signals on 16 dedicated BNC inputs (1Vp-p, 75 ohm impedance), plus 2 network inputs. This flexibility means you can source cameras from multiple vendors without redesigning wiring or control infrastructure.
• H.265 Compression with H.264 and MJPEG Support: H.265 cuts storage consumption roughly 40–60% compared to H.264 depending on scene complexity and motion. On a 24/7 multi-camera recorder, that translates directly to extended retention periods on fixed storage. Simultaneous H.264 and MJPEG support ensures compatibility with older VMS systems or devices that don't support modern compression—critical when integrating into existing deployments.
• 5MP Recording with Practical Frame Rates: Records at 5MP maximum resolution with real-world performance: 12 fps @ 5MP half-resolution, 15 fps @ 4MP half-resolution, and 15 fps @ 2MP across all analog channels. The 100 Mbps maximum recording bandwidth means you aren't bottlenecked when scaling to multiple simultaneous high-resolution streams—all channels can push data without frame-rate compromise.
• Expandable Dual SATA Storage: Comes with a pre-installed 4TB HDD and supports two field-upgradeable SATA bays for up to 6TB drives each (12TB total). This design removes storage as an afterthought constraint. If your forensic retention requirements expand or regulatory compliance mandates longer evidence windows, you upgrade the drives in minutes without architectural rework.
• Audio Input Integration: Built-in audio input for synchronized audio-video recording. This is essential in retail loss-prevention, warehouse access monitoring, or any scenario where synchronized sound strengthens evidence for legal proceedings or operational review.
• Multi-Format Codec Flexibility: Support for H.265, H.264, and MJPEG ensures the ARD-1610-4TB pairs seamlessly with Milestone XProtect, Genetec, and other major network video recorder platforms without codec conversion overhead or frame-rate penalties.

Integration & Compatibility

The ARD-1610-4TB is a core component in hybrid surveillance architectures where analog and IP systems coexist. Its pentabrid input scheme eliminates vendor lock-in during migration; AHD/TVI/CVI and CVBS signals are industry-standard analog protocols, so existing camera plant can remain in place. The 2 network inputs allow you to introduce IP cameras incrementally without removing analog channels until the business case justifies full replacement. Audio input supports external microphones or line-level devices, expanding the recorder's role beyond video capture to integrated facility monitoring.

Ideal Deployment Scenarios

• Retail and commercial facility transitions from analog to IP without full system replacement
• Multi-tenant buildings with distributed surveillance networks and mixed camera deployments
• Warehouse automation environments with legacy equipment and new smart cameras operating in parallel
• Facilities requiring synchronized audio-video evidence for access control and loss-prevention investigations
• Organizations managing surveillance across multiple sites with inconsistent camera infrastructure

When to Choose a Different Model

If your deployment is all-IP with no analog camera legacy, consider a higher-channel IP-native NVR from the Hanwha surveillance line that dedicates all processing power to network inputs. If you need more than 18 total channels, or if forensic frame rates at 5MP resolution are non-negotiable (this recorder tops out at 12 fps @ 5MP), evaluate a dedicated 32-channel Hanwha DVR. If your facility requires integration with a larger VMS backbone, consult the VMS architecture and compatibility guide to confirm the ARD-1610-4TB meets your platform's bandwidth and codec expectations.

Frequently Asked Questions

Q: Can I record from 16 analog cameras and 2 IP cameras simultaneously on the ARD-1610-4TB?

A: Yes. The recorder supports 16 analog BNC inputs (AHD/TVI/CVI/CVBS) plus 2 network camera inputs for a total of 18 channels. All channels can record simultaneously within the 100 Mbps recording bandwidth limit.

Q: What happens to my old CVBS (composite video) cameras—are they still supported?

A: Yes. The ARD-1610-4TB's pentabrid architecture accepts CVBS (NTSC/PAL) alongside AHD, TVI, and CVI signals. You can retire analog cameras on your own schedule.

Q: How much longer will 4TB of storage last if I use H.265 instead of H.264?

A: H.265 reduces file size 40–60% compared to H.264 depending on scene complexity and motion. For a 24/7 multi-camera recorder, this typically translates to 40–60% longer retention on the same storage—meaningful if you're managing evidence windows for compliance or loss-prevention.

Q: Can I upgrade the storage later?

A: Yes. The ARD-1610-4TB supports two field-upgradeable SATA bays, each up to 6TB, for a maximum of 12TB total internal storage. You can replace or add drives without downtime or architectural changes.

Q: Is audio recording synchronized with video?

A: Yes. The ARD-1610-4TB has a built-in audio input supporting external microphones and line-level devices. Audio and video are recorded together, essential for retail investigations and facility access logging.

Q: Does the ARD-1610-4TB work with Milestone XProtect or Genetec?

A: Yes. The recorder supports H.265, H.264, and MJPEG, ensuring integration with major VMS platforms without codec conversion overhead.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ARD-1610-4TB solves a real integration problem: most surveillance migrations don't happen overnight. You'll have analog cameras in the field that work fine, IP cameras on order, and a management mandate to stretch capex across fiscal years. This recorder lets you do exactly that—16 analog inputs (AHD/TVI/CVI/CVBS) plus 2 IP channels—so you're not buying parallel infrastructure while you transition.

Technical Highlights:

• Pentabrid Input + 100 Mbps Recording Bandwidth: The ARD-1610-4TB handles 16 analog + 2 IP channels simultaneously. The 100 Mbps max bandwidth is key: it means you won't see frame-rate drops or bottlenecking when pushing 12 fps @ 5MP half-resolution across all 16 analog channels at once. That's legitimate concurrent recording, not a theoretical maximum.
• H.265 Codec (40–60% File Size Reduction): If you're recording 24/7 at 5MP across 16 channels, H.265 is where you see real ROI. Every 1% of file size reduction is retention time back in your pocket. On a 4TB drive with heavy motion scenes, you're looking at roughly 50% more footage before you hit the wraparound. That matters for forensic windows and compliance retention.
• Dual SATA Bays, Expandable to 12TB Total: The 4TB base is practical for smaller deployments, but the architecture—two hot-swappable SATA bays up to 6TB each—means you're not locked into a fork-lift upgrade. If your retention mandate changes in year two, you slip in larger drives without touching firmware or reconfiguring channels.

Deployment Considerations:

• Frame Rate at Resolution: The 12 fps @ 5MP half-resolution is adequate for retail, warehouse, and facility monitoring, but it's not high-motion surveillance. If you need 30 fps for parking lots, loading docks, or high-traffic areas, you're either dropping resolution or considering a dedicated IP NVR that doesn't have to serve analog legacy.
• Audio Sync Is Essential If You're Investigating: The built-in audio input is straightforward—external mic or line-level from access control—but get the cabling and mic type right the first time. Misaligned audio timing or a dead mic makes the recording worthless for incident reconstruction.
• CVBS Retirement Timeline: Composite video (CVBS) is still supported, but don't assume indefinite support. Plan to document which cameras are CVBS and target them for replacement within 2–3 years. It's low-cost insurance against the recorder firmware dropping legacy codec support.

Positioning: The ARD-1610-4TB is the right choice if you're a systems integrator or IT architect managing a phased surveillance upgrade at a multi-location retail chain, warehouse, or commercial facility with existing analog infrastructure. It buys you time and eliminates the cost and complexity of running two separate recording systems during transition. If your entire plant is already IP or if you're building net-new, save the pentabrid complexity and go native IP.
