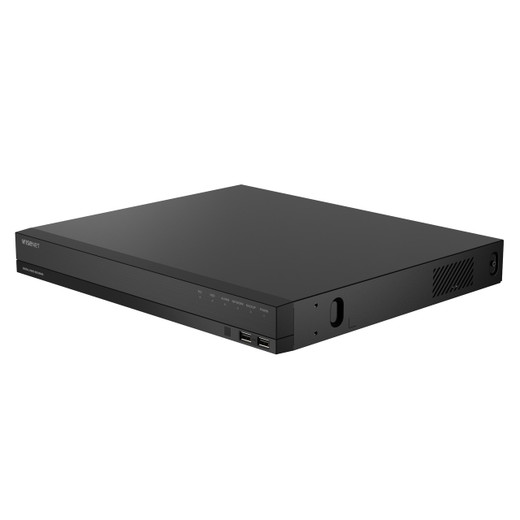

Hanwha ARD-1610 16-Channel Hybrid AHD/TVI/CVI/IP NVR

Hanwha ARD-1610 16-Channel Hybrid AHD/TVI/CVI/IP NVR

Overview

The Hanwha ARD-1610 is a professional 16-channel hybrid NVR designed to handle mixed analog and IP camera ecosystems without forcing a complete system overhaul. Unlike single-format recorders, this unit accepts AHD, TVI, CVI, CVBS (legacy composite), and IP cameras in parallel—meaning you can retire analog cameras on your own timeline while protecting your coaxial infrastructure investment. The unit runs on a Linux embedded platform with dual SATA storage bays, 4K HDMI output, and enterprise-class event triggering.

Key Features

• 16 analog channels (AHD/TVI/CVI/CVBS) plus 2 IP network channels: Supports up to 5MP analog input (AHD Half resolution at 12fps), 4MP Half at 15fps, or 2MP at 15fps depending on format. IP cameras reach 5MP with typical 2MP deployments capable of 240fps. This flexibility lets you deploy whatever camera mix fits your site—no forklift upgrade required when adding IP cameras to an analog base.
• Dual SATA bays with up to 12TB total capacity: Two 6TB drives provide substantial retention for 24/7 continuous recording across all 16 channels. H.265 compression cuts storage consumption roughly in half compared to H.264 on the same bitrate, stretching retention or reducing drive costs.
• H.265, H.264, and MJPEG compression with 100Mbps max bandwidth: Codec selection lets you balance video quality against network saturation and storage churn. H.265 is the smart default for multi-camera, continuous-duty deployments; H.264 remains compatible with legacy VMS platforms.
• 4K HDMI (3840×2160) and VGA outputs: Single or dual-display modes support security control rooms that need to monitor all 16 channels across multiple monitors. Multi-screen layouts include 20-division local views and flexible web divisions (1/2/3/4/6/1+5/1+7/9), adapting to your NOC layout.
• 18-channel simultaneous playback: Forensic review or compliance audits benefit from parallel playback across all recordings plus any IP feeds—no serialization bottleneck when multiple users need footage at once.
• 4-channel 2-way audio with G.711 compression: Talk-back capability on four channels supports intercom scenarios (warehouse to gate, retail floor to back office). G.711 is standard SIP-compatible audio, reducing licensing friction when integrating with VoIP or access control systems.
• Dual-track recording (continuous + event-based): One recording stream runs 24/7 at a baseline bitrate; a second stream triggers only on motion, video loss, tampering, or analytics events. This reduces storage waste and simplifies forensic searches for specific incidents.
• Advanced event triggering: Motion detection, video loss alerts, tampering warnings, and IP camera analytics (direction-aware line crossing, enter/exit zones, face detection) feed into automated actions—email, push notifications, FTP uploads, PTZ presets, alarm relay outputs, and system commands. Real-world benefit: a warehouse can auto-trigger door alarm relays and pan a PTZ when motion crosses a perimeter line at night.
• ONVIF and SUNAPI protocol support with CGI gateway: Third-party VMS platforms (Milestone, Genetec, etc.) integrate via ONVIF Profile S/T, or direct integration via SUNAPI. CGI support enables REST-based automation in warehouse or retail backend systems.
• PTZ control over coaxial (Pelco-C/AHD/CVI/TVI), GUI, web viewer, SSM, Wisenet Viewer, and mobile apps: 300 presets available. Mixed-format sites benefit from unified PTZ management—one preset library controls domes on legacy twisted-pair and IP simultaneously.
• IP security: IP filtering, 802.1X authentication, encrypted credentials, encrypted recordings, encrypted transmissions, encrypted backups, and Hanwha device certificates lock down remote access and compliance audits.
• Compact form factor (370×44×320mm) with low operating power (40.8W max with dual 6TB drives): Fits standard 1U or 2U rack slots in server closets or network hubs. Power draw under 41W keeps utility bills down on 24/7 operation across dozens of sites.

Integration & Compatibility

Remote access supports up to 10 simultaneous live users and 3 concurrent search users via web viewer (Windows 10, Mac OS 11+), plus native iOS and Android mobile clients. Recording modes include manual, schedule-based, event-triggered with pre/post recording windows, and dual-track operation. Backup formats support BU, EXE, and AVI export for compliance or litigation hold. ARB (automatic redundancy backup) support ensures business continuity on critical installations—failover triggers when the primary recorder becomes unavailable.

The ARD-1610 suits retail chains needing to add IP cameras to coaxial CCTV, warehouse facilities with mixed legacy and new camera infrastructure, transportation hubs retrofitting analog systems, and multi-site enterprises managing heterogeneous camera fleets. System maintains up to 100,000 event and audit logs for regulatory or forensic investigation.

When to Choose a Different Model

If your deployment is purely IP-native (no analog cameras on premise), consider a dedicated IP NVR to avoid paying for unused analog ports. If you need more than 18 total channels, evaluate higher-channel variants in the Hanwha NVR line. If analog migration is not a factor, a single-protocol recorder may offer tighter integration with a specific camera series.

Frequently Asked Questions

Q: Can I mix different analog formats (AHD, TVI, CVI) on the same ARD-1610?

A: Yes. You can assign channels to different analog formats independently. For example, channels 1–6 may be TVI cameras, channels 7–12 CVI, and channels 13–16 AHD—all recording simultaneously without format conflicts.

Q: What's the maximum storage retention with dual 6TB drives?

A: Retention depends on channel count, resolution, frame rate, and compression. At 2MP 15fps across all 16 channels using H.265, expect roughly 30–45 days of continuous recording. H.264 at the same settings yields 15–25 days. Dual-track recording with event triggers extends duration because baseline streams run at lower bitrate.

Q: Does the ARD-1610 support integration with Milestone XProtect or Genetec Security Center?

A: Yes, via ONVIF Profile S and IP camera input. Analog channels themselves cannot be exported to third-party VMS; only IP cameras connected to the unit appear as ONVIF sources. For full analog channel export, direct coaxial feeds must reach the VMS recorder separately.

Q: Can I back up video to a network-attached storage (NAS) instead of USB/FTP?

A: The unit supports FTP backup, which can point to a NAS-mounted FTP server. Direct CIFS/SMB mounting is not documented in available specifications. Confirm NAS FTP compatibility with your storage vendor before deployment.

Q: What's the warranty on the ARD-1610?

A: Warranty information is not included in the available specifications. Contact your specialty distributor for coverage terms and support options.

Q: Is the ARD-1610 NDAA Section 889 compliant?

A: Compliance certification is not documented in available product evidence. Confirm with your procurement or security team if NDAA compliance is a hard requirement.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ARD-1610 bridges analog and IP surveillance without forced migration. If you're managing a retail chain or warehouse with existing coaxial CCTV, this unit eliminates the artificial choice between rip-and-replace or stalling on new IP features. Sixteen analog channels accept AHD, TVI, and CVI in parallel—meaning legacy cameras operate seamlessly alongside new IP installs. H.265 compression and dual-track recording reduce storage costs and simplify forensic playback when investigators need to cross-reference incident video from multiple streams.

Technical Highlights:

• Hybrid channel architecture: 16 analog + 2 IP = 18 total recordable sources. Analog input handles up to 5MP AHD Half resolution at 12fps, dropping to 4MP Half at 15fps or 2MP at 15fps depending on format. IP cameras reach 5MP with 240fps capable at 2MP. This variance reflects coaxial bandwidth constraints—AHD over twisted-pair cannot sustain 5MP and high frame rates simultaneously.
• Dual SATA with up to 12TB: Each bay accepts a single 6TB drive. H.265 cuts bitrate roughly 40–50% versus H.264 on equivalent quality settings, meaningful on 24/7 multi-channel recorders where storage is the largest consumable cost after power.
• 100Mbps max bandwidth ceiling: This cap applies to total network throughput from all 2 IP channels. Do not expect 100Mbps per camera; budget 50Mbps for two 4MP IP streams or negotiate lower resolution/frame rates if bandwidth is tight at your site.
• ONVIF + SUNAPI + CGI: Third-party VMS integration via ONVIF Profile S is standard. SUNAPI and CGI support enable deeper automation—warehouse control systems can trigger event actions via REST calls without manual UI intervention.
• Dual-track recording: One stream records 24/7 at baseline bitrate (e.g., 256 kbps per channel). A second stream triggers on motion or analytics events at higher quality (1–2 Mbps per trigger). Real-world benefit: storage holds 60 days of baseline surveillance plus 14 days of high-quality incident captures on the same 12TB.

Deployment Considerations:

• Coaxial control advantage: PTZ cameras wired over existing twisted-pair can be managed via Pelco-C/AHD/CVI/TVI protocols without separate control lines. This simplifies retrofits in older facilities where dedicated PTZ wiring is absent or prohibitively expensive.
• Analog channel export limitation: If your VMS requires all 16 channels as ONVIF sources, the ARD-1610 cannot deliver that. Only IP cameras connected to the unit appear as ONVIF feeds. Analog channels are visible locally (GUI, web viewer, mobile) but not exportable to third-party recording platforms. Plan accordingly if you anticipate VMS migration.
• Remote user concurrency ceiling: 10 simultaneous live users and 3 search users. Multi-site operations with dozens of concurrent viewers will hit this cap; larger deployments should evaluate higher-end models or load-balance across multiple recorders.
• Storage capacity planning: Retention math depends on resolution, frame rate, and codec. A quick estimate: 2MP, 15fps, H.265, dual 6TB = 30–45 days continuous. Double that with H.264 and you're closer to 15–25 days. Oversizing storage upfront is cheaper than swapping drives mid-deployment.

The ARD-1610 is the right fit for retail, warehouse, and transportation operators retrofitting analog CCTV with IP features on a sane timeline. Its compact footprint (370×44×320mm) and 40.8W power envelope make it ideal for distributed deployments (one recorder per facility). Avoid this model if your site is purely IP-native with no legacy coax infrastructure—you'll pay for unused analog ports. Equally, if you need more than 18 channels or NDAA compliance is mandatory, look at higher-tier Hanwha models with certification and expanded capacity.
