Vertiv PD5-002 UPS Output POD 2
Overview

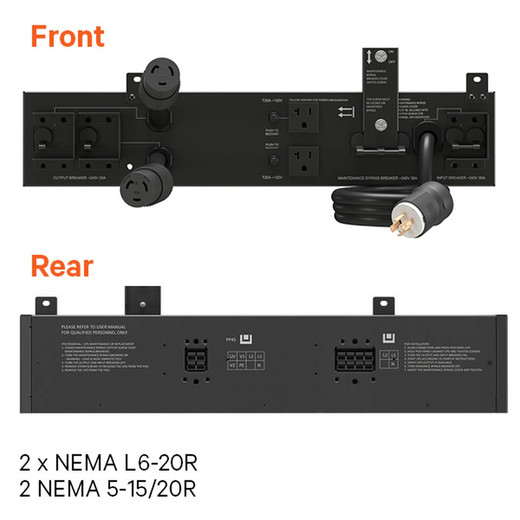

The Vertiv PD5-002 is a UPS Power Output Distribution Module designed to expand the output capacity of compatible Liebert GXT5 UPS systems. It provides a NEMA L14-30P input connection and distributes power to multiple downstream devices via (2) NEMA L6-20R and (2) NEMA 5-15/20R outlets. This module is crucial for environments requiring granular power distribution from a central UPS, such as server racks or critical equipment clusters.
Compatibility
This output POD is specifically engineered for the Vertiv GXT5 5kVA and 6kVA models with RT4UXLN configurations. It is compatible with the following UPS systems: GXT5-5000MVRT4UXLN and GXT5-6000MVRT4UXLN. Ensure your UPS model matches these specifications to guarantee proper function and safety.
Installation Notes
The PD5-002 requires a NEMA L14-30P input connection, which is a standard 30A, 125/250V locking plug. The output receptacles are (2) NEMA L6-20R (20A, 250V locking) and (2) NEMA 5-15/20R (15A/20A, 125V straight-blade). Proper wiring and load balancing across these outlets are essential for safe operation and to prevent overloading the UPS or the module itself. Consult the UPS documentation for maximum load ratings.
What's in the Box
- 1x Vertiv PD5-002 UPS Power Output Distribution Module
