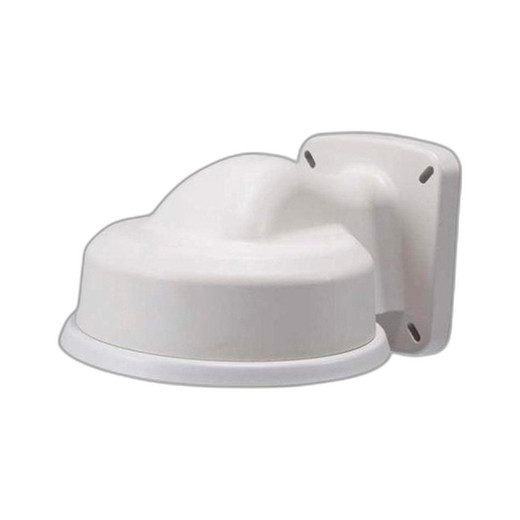

Geovision 84-HOUG102-0001 Camera Housing
The Geovision 84-HOUG102-0001 is a protective enclosure designed to shield IP PTZ camera systems in outdoor and harsh-environment deployments. This housing safeguards surveillance equipment against environmental stress while maintaining optical clarity for uncompromised imaging performance.
Overview
The 84-HOUG102-0001 provides weatherproof protection for varifocal IP cameras rated up to 8MP, making it suitable for facilities where camera systems face dust, rain, salt spray, or mechanical impact. The IP66 rating means complete protection against water jets and dust ingress — relevant for rooftop, perimeter fence, and loading dock installations where washdown or hose spray is common. The IK10 impact rating handles aggressive vandalism scenarios and accidental strikes without optical or mechanical failure.
This housing accepts varifocal lens configurations and integrates with IP PTZ camera platforms. PoE (802.3af) powering means no separate power cable to the housing itself — the camera inside draws standard PoE current through a single network run.
Compatibility
The 84-HOUG102-0001 is engineered for Geovision IP PTZ camera series and compatible third-party IP cameras operating over standard network protocols. Confirm your specific camera model fits the mounting bracket and optical window dimensions before ordering. The housing supports varifocal lens types and is rated for cameras up to 8MP resolution. Verify PoE budget on your switch or injector — standard 802.3af provides up to 13W, which accommodates the typical powered camera inside the enclosure.
Installation Notes
Mount the housing to a fixed structural surface (wall, post, or ceiling bracket) using the supplied or site-provided hardware. Ensure cable entry points are sealed with the provided rubber glands to maintain IP66 integrity. During installation, position the optical window perpendicular to the expected field of view to minimize glare reflection. Test IP66 sealing after final assembly by applying a low-pressure spray from multiple angles. The IK10 rating applies to the housing shell only — do not rely on impact resistance to protect the camera lens itself from direct strikes.
