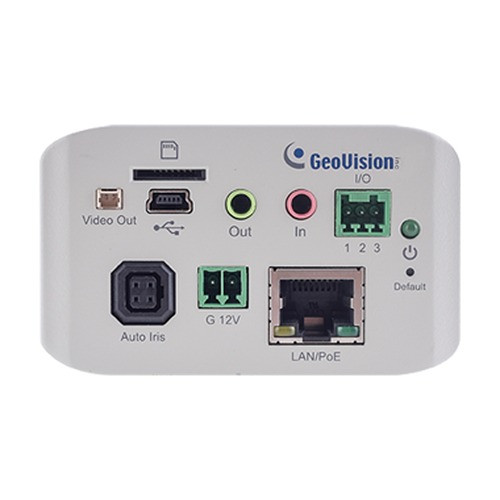

Geovision 84-BX140-W01U Box Camera
Overview
The Geovision 84-BX140-W01U is a 1MP box-style IP camera built for surveillance integrators who need mounting flexibility and on-site lens adjustment without inventory complexity. The varifocal 2.8–12mm lens (F1.4 max aperture) lets field technicians dial in focal length at installation—no swapping camera units for different coverage widths. H.264 compression keeps bandwidth and storage efficient across 24/7 recording scenarios. WDR handles mixed-lighting scenes (bright sunlit zones adjacent to shadowed areas) within a single frame, and IR night vision extends utility into zero-light environments. The box form factor accepts custom housings, bracket systems, and mounting hardware, making it ideal for integrators who need to standardize on a core platform and adapt it to retail floors, warehouse aisles, hallways, parking structures, or institutional settings where a discrete, adjustable-lens camera meets space and budget constraints.
Compatibility
The 84-BX140-W01U integrates with any VMS supporting H.264 IPCAM streams over standard IP protocols. It pairs with Geovision GV Management System deployments and third-party platforms including Milestone XProtect, Genetec Security Center, and ONVIF-compliant recorders. PoE power delivery (or direct DC) connects via standard network cabling, simplifying deployment alongside existing surveillance infrastructure. No proprietary codec or specialized management gateway required—connect to any switch with available PoE budget, provision an IP address, and stream to your recording backend.
Installation Notes
Varifocal adjustment requires physical access to the lens barrel post-installation; confirm optical centering and focus before final bracket torque to avoid re-work. Box cameras typically mount flush to ceiling, wall corner, or pendant bracket—verify mounting surface load rating and vibration isolation if installing in high-vibration environments (above HVAC units, machinery areas). Ensure adequate PoE budget: typical draw is moderate but confirm against your switch capacity if chaining multiple units on a single line card. No separate power supply required if PoE sourcing is confirmed.
