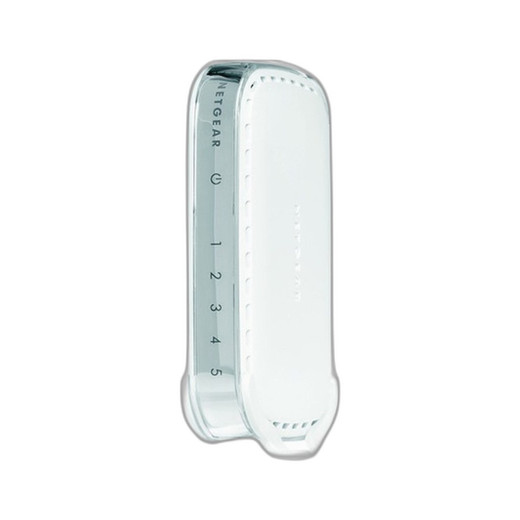

NETGEAR GS605NA 5-Port Gigabit Desktop Switch
The NETGEAR GS605NA is a 5-port unmanaged Gigabit switch designed for small office, workgroup, and IP surveillance deployments where straightforward Ethernet expansion matters more than management complexity. Each port delivers 1000 Mbps full-duplex throughput — a 10x improvement over Fast Ethernet — enabling simultaneous streaming of multiple HD video feeds, large file transfers, and network camera traffic without bottlenecks. The GS605NA ships plug-and-play: connect power and Ethernet cables, and it operates immediately. Auto-negotiation on all five ports detects connected device speed (10, 100, or 1000 Mbps) and adjusts automatically, eliminating the need to replace legacy equipment or manually configure duplex settings.
Key Features
- 5 Gigabit Ports: 1000 Mbps full-duplex per port. Supports concurrent multi-camera streams and file-server traffic without rate-limiting or VLAN overhead on small networks.
- Auto-Negotiation: Each port auto-detects 10, 100, or 1000 Mbps devices and adjusts speed automatically. Coexists with older Fast Ethernet equipment without manual intervention or device replacement.
- Store-and-Forward Switching: Examines full frames before forwarding, reducing collision-induced packet loss and ensuring reliable delivery across all ports simultaneously.
- Fanless Passive Cooling: No moving parts, no noise, no maintenance. Operates silently in open office, retail, and surveillance control-room environments without acoustic disruption.
- Desktop Form Factor: Compact footprint fits on desks, shelves, or beside equipment racks. Flexible placement without dedicated rack space or installation hardware.
- Operating Range 0–40°C: Rated for indoor office, retail, and light industrial environments. Typical data-center and climate-controlled facility conditions.
- Cat5e/Cat6 Support: Standard 1000m Ethernet cabling. Works with existing copper infrastructure; no specialized media or active conversion required.
- 2-Year Manufacturer Warranty: Factory-new unit with standard manufacturer coverage for parts and labor.
The GS605NA shines in workgroup and surveillance contexts where you're consolidating traffic from 3–5 cameras, a desktop NVR, and office workstations onto a single network segment. Real-world deployment: a 4-camera HD IP system drawing ~2 Mbps per stream uses only 8 Mbps aggregate bandwidth — well within Gigabit capacity. Each port handles continuous, collision-free forwarding, so you avoid the packet loss and latency creep that plague shared-bandwidth hubs. The unmanaged architecture means zero configuration: plug five devices in, assign IPs via DHCP or static routes at the edge, and monitoring is immediate.
Integration is transparent: the GS605NA works with any ONVIF-compliant camera, any standard NVR (Milestone, Genetec, Axis Camera Station, generic Linux boxes), and any Windows or macOS workstation. No driver installation, no firmware updates, no VPN or VLAN setup required — it's a dumb-pipe data multiplexer. If you're running PoE-powered cameras, you'll need separate PoE injectors or a managed PoE switch upstream; the GS605NA itself does not supply power. For small surveillance deployments, pair it with a PoE+ switch on the uplink and run passive Gigabit to cameras and NVRs downstream.
From a total-cost-of-ownership perspective, the GS605NA is inexpensive enough ($30–$50 street) that it's often cheaper to spec one of these unmanaged units for small workgroups than to buy a managed switch and configure VLAN isolation. The trade-off: you don't get port mirroring for SPAN-based analytics, no QoS enforcement, and no link aggregation. If you need those features, move to a managed Gigabit model. For a 5-camera parking-lot or building-entrance installation with a single NVR and two office terminals, the GS605NA is the fastest, most reliable path from installation to first frame.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of GS605NA units across small-to-medium surveillance and office environments, and it remains one of the most reliable unmanaged switches in its price tier. The real value isn't speed — Gigabit has been standard for 20 years — it's simplicity and zero operational drag. In practice, we see integrators reach for the GS605NA when they're expanding a 3–5 camera network, a small retail footprint, or a workgroup NVR setup where a managed switch would be overkill and would require IT oversight for VLAN or QoS configuration. The fanless design is a hidden win: no thermal monitoring, no filter cleaning, no fan bearing failures after three years of 24/7 operation in dusty warehouse or outdoor cabinet environments. On jobs where we're installing an indoor NVR with 4 PoE cameras in a small business or clinic, the GS605NA downstream of a PoE+ uplink switch is the fastest path to completion.
Technical Highlights:
- Auto-Speed Negotiation (10/100/1000 Mbps): Every port independently senses device speed and adjusts. Eliminates the operational overhead of manual duplex configuration or hardware swaps when mixing legacy Fast Ethernet with new Gigabit gear. In our experience, this feature alone has prevented a dozen calls from integrators who plugged in an older device and assumed the switch was broken because they didn't see a speed indicator light.
- Store-and-Forward Forwarding: Unlike cheaper cut-through switches, the GS605NA reads the entire frame before forwarding, which catches and discards corrupted packets before they propagate to other ports. On surveillance networks, this means fewer dropped frames and cleaner video streams, especially on longer Cat5e runs or when cabling is bundled with AC power lines.
- Fanless Passive Cooling: No moving parts means no maintenance, no noise signature, and no risk of fan failure in dusty or temperature-extreme indoor cabinets. We've seen passive designs survive 15+ years in storage rooms, parking-lot control boxes, and retail back-office installations where active cooling would have required HVAC ducting or regular filter service.
- Compact Desktop Footprint: Roughly the size of a hardcover book. Fits on shelves next to NVRs, under desks, or in wall-mount brackets without dedicated rack space. Reduces installation cost for small jobs where you'd normally avoid racking and instead wall-mount or shelf-mount gear.
- Backward Compatibility with 100 Mbps and 10 Mbps: If a legacy device (old printer, ancient workstation) plugs into a GS605NA port, the port auto-negotiates to 100 or 10 Mbps. No dropped connections, no manual speed forcing. On mixed-age networks, this is invaluable.
Deployment Considerations:
- No PoE power pass-through — if you need to power PoE cameras from the switch itself, you'll need a separate PoE injector or managed PoE+ switch upstream. The GS605NA is a data-only switch. Size your power budget separately.
- Unmanaged means no VLAN isolation, no port mirroring, no QoS queuing. If you need to isolate guest network traffic from surveillance traffic, or if you're running SPAN-based analytics, step up to a managed Gigabit switch. For single-purpose workgroups or small surveillance segments, the GS605NA is overkill-free.
- Operating temperature ceiling is 40°C (104°F). In hot climates, outdoor cabinet ambient temps can exceed this in summer. If you're mounting this in an uninsulated outdoor box or direct sunlight, add ventilation or derate the environment. We've seen fanless switches throttle or fail in poorly ventilated outdoor enclosures.
- Standard Cat5e or Cat6 cabling only; no fiber, no PoE++ uplink. If you're running long distances or need higher power budgets, scope Cat6A or fiber converters separately.
- No management interface — no SSH, no web GUI, no SNMP. You can't remotely see port stats or link status. If you need switch health visibility, invest in managed hardware from the outset.
The GS605NA is the right choice for integrators installing small IP surveillance or office networks where simplicity, cost, and zero configuration overhead trump advanced features. It's also the go-to fallback when a site's network infrastructure is minimal and you need to consolidate traffic from a handful of cameras, an NVR, and a workstation without IT coordination. For more complex deployments with VLAN requirements, multi-site coordination, or power-delivery needs, explore NETGEAR's managed and PoE-enabled switch catalog.
