APC by Schneider Electric Galaxy vs UPS 50KW 400V for External Batteries - GVSUPS50KMHS

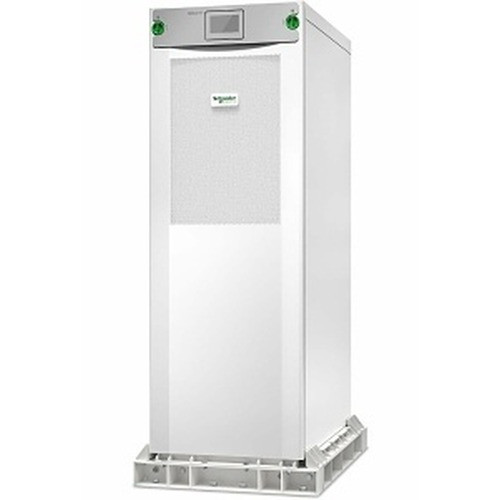

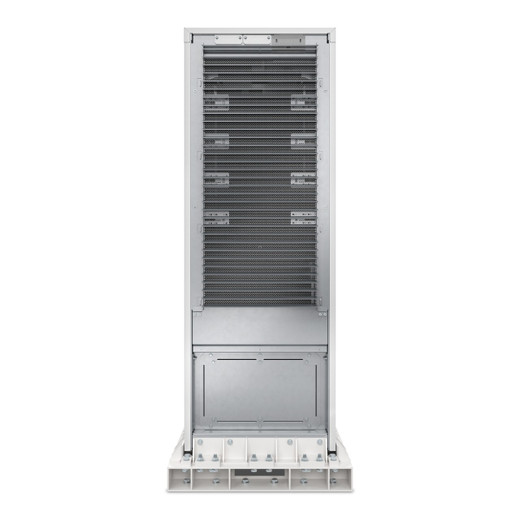

APC by Schneider Electric GVSUPS50KMHS Double-Conversion UPS

Overview

The APC by Schneider Electric GVSUPS50KMHS is a 50kVA double-conversion (online) uninterruptible power supply designed for critical IT infrastructure. It delivers clean, stable sine wave power with 400V output, ensuring sensitive equipment remains operational during power disturbances. This UPS is suitable for rack or tower deployments in data centers or network closets requiring robust, continuous power.

Compatibility

This UPS is designed for external battery configurations and operates with 400V 3-phase input and output. It supports an input voltage range of 340-460V and an input frequency of 40/70 Hz, making it compatible with standard industrial power grids. The 50/60 Hz output frequency is selectable to match local power requirements. It is intended for use with APC's Galaxy VS external battery systems.

Installation Notes

Requires a 3-phase power connection. Maximum input current is 90A. The unit has a heat dissipation of 5804 BTU/h, necessitating adequate ventilation or cooling in the installation environment. Noise level is rated at 68 dB, requiring consideration for placement in noise-sensitive areas.

Specifications Summary

• Topology: Double-conversion (Online)
• Output Power: 50 kVA / 50000 W
• Output Waveform: Sine
• Input Voltage Range: 340-460V
• Output Voltage: 400V
• Input/Output Phases: 3-Phase
• Power Factor: 1
• THD (Output): 5%
• THD (Input): 3%
• Noise Level: 68 dB
