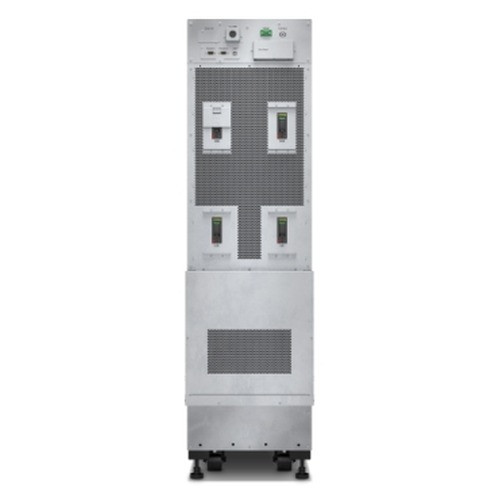

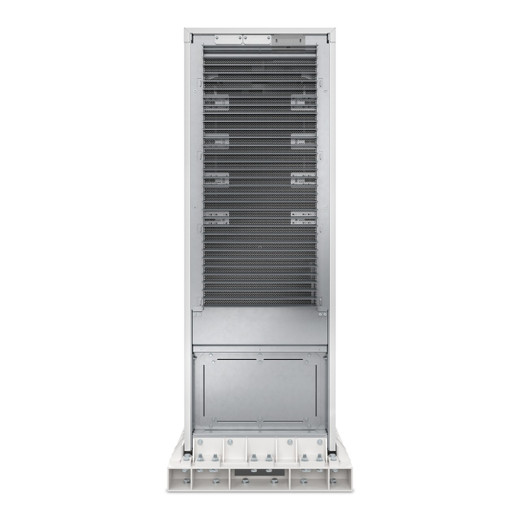

APC by Schneider Electric Galaxy vs UPS 30KW 400V for External Batteries - GVSUPS30KMHS

APC by Schneider Electric GVSUPS30KMHS Double-Conversion UPS

Overview

The APC by Schneider Electric Galaxy VS UPS 30KW 400V (GVSUPS30KMHS) is a critical component for ensuring continuous, clean power to sensitive electronic equipment. Its double-conversion (Online) topology means it isolates connected devices from the utility power grid, providing a stable sine wave output regardless of input fluctuations. This is essential for deployments where even brief power interruptions or voltage sags can cause data loss or system downtime, such as in advanced surveillance systems or automated manufacturing lines.

Compatibility

This 30kW, 400V UPS is designed for integration with systems requiring robust power conditioning and backup. It is compatible with 3-phase input and output power architectures. Specifically, it is suited for high-density IT racks, edge computing deployments, and industrial control systems where reliable power is paramount. Its output voltage range of 400V +/- 1% makes it suitable for equipment specified for this voltage, common in European and some industrial applications. It functions within an input voltage range of 340V to 466V and input frequencies of 40-70 Hz.

Installation Notes

Installation requires a 3-phase power source and output distribution capable of handling 30 kVA / 30000 W at 400V. The unit has a maximum output current rating of 54 A. It generates approximately 3122 BTU/h of heat, requiring adequate ventilation or cooling in its installation environment. The ECO mode feature allows for increased operational efficiency by bypassing the voltage regulation stage when utility power is within acceptable parameters, reducing energy consumption. The THD for output voltage is a low 1%, ensuring clean power for sensitive electronics, while input current THD is 3%.
