APC by Schneider Electric Galaxy vs UPS 20KW 480V with N+1 Power Module for 5 - GVSUPS20KR0B5GS

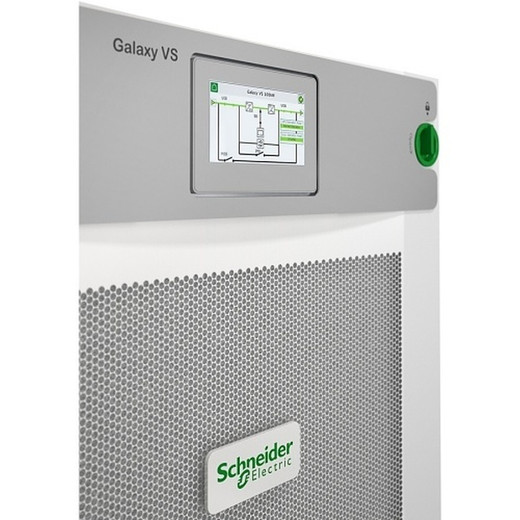

APC by Schneider Electric GVSUPS20KR0B5GS Galaxy VS 20kW Three-Phase Modular UPS

Overview

The APC by Schneider Electric GVSUPS20KR0B5GS is a 20kW (20kVA) three-phase online double-conversion UPS running at 480V AC input and output — built for data centers, industrial control rooms, and business-critical infrastructure where even a sub-millisecond outage is unacceptable. This configuration ships with an N+1 redundant power module and five smart modular 9Ah battery strings, giving you built-in fault tolerance without adding external bypass cabinets or separate battery enclosures. The Galaxy VS platform is a modular architecture, meaning you can scale capacity or swap components online rather than taking the load down for maintenance — a real operational advantage in live environments.

If your facility runs 480V three-phase distribution — common in North American industrial plants, larger commercial buildings, and colocation data halls — the GVSUPS20KR0B5GS drops into that infrastructure without a step-up or step-down transformer. That alone simplifies the electrical installation considerably.

Key Features

• Zero Transfer Time (0 ns): This is a true online double-conversion topology. The load is always running off the inverter — there is no transfer switching event when utility power fails. For servers with tight voltage tolerance windows, PLCs, or medical imaging equipment, this matters: 0 ns transfer means no glitch, no reset, no data corruption risk from the transition.
• 20kW / 20kVA at 480V Three-Phase: Sized for mid-tier data center rows, industrial automation panels, or a dense compute cluster. Three-phase delivery at 480V means lower current draw per phase compared to 208V systems at the same wattage — less heat in the distribution wiring and more headroom on your breakers.
• N+1 Redundant Power Module: The included N+1 module means one power module can fail entirely and the UPS continues supplying the full 20kW load without interruption. For 24/7 environments where scheduled maintenance windows don't exist, this architecture lets you pull and replace a failed module while the system stays live.
• Five Smart Modular 9Ah Battery Strings: Battery modules are individually managed and hot-swappable. Each string's state of health is monitored independently, so a degraded cell group is flagged before it affects runtime — you replace the bad module, not the entire battery cabinet. This matters for multi-year deployments where battery aging is staggered across strings.
• 480V AC Input / Output — No Transformer Needed: Input accepts 408V AC to 552V AC, covering the real-world voltage swings in industrial and utility environments. Output is regulated 480V AC at 60Hz regardless of input variation within that window, protecting sensitive loads from sags and surges upstream.
• Input Frequency Tolerance to 70Hz: Accommodates generator-fed input where governor hunting can push frequency above nominal 60Hz. If you're deploying with diesel genset backup, this prevents nuisance transfers to battery when the generator overshoots during startup.
• Pure Sine Wave Output: The inverter produces a clean sine wave — not stepped approximation. For variable-frequency drives, UPS-sensitive power supplies, and any load with active PFC, this is a hard requirement. Square-wave or modified-sine UPS outputs cause heating and premature failure in these load types.
• Web / SNMP / Modbus TCP Management: Three management protocols in one unit. SNMP integrates with existing NMS platforms (SolarWinds, PRTG, Nagios). Modbus TCP connects directly to building automation systems and industrial SCADA. The web interface provides local monitoring without requiring a separate management card purchase. All three are available simultaneously.

Integration and Compatibility

The GVSUPS20KR0B5GS is positioned for data center and industrial environments that use standard network management infrastructure. Modbus TCP support means the UPS can report to a SCADA or BMS directly — useful in manufacturing facilities where the network operations team and facilities team use different platforms. SNMP v1/v2/v3 covers standard IT monitoring stacks without requiring proprietary software. The 480V three-phase configuration aligns with North American industrial distribution standards; verify your panel capacity and breaker sizing before commissioning — a 20kW three-phase load at 480V draws roughly 24A per phase at unity power factor, which requires appropriate upstream overcurrent protection.

Frequently Asked Questions

Q: What is the transfer time on the GVSUPS20KR0B5GS when utility power fails?

A: Transfer time is 0 nanoseconds. The Galaxy VS uses online double-conversion topology, meaning the load runs continuously off the inverter and never switches from utility power directly. There is no transfer event — utility loss is transparent to connected equipment.

Q: What input voltage range does the GVSUPS20KR0B5GS accept?

A: The unit accepts 408V AC to 552V AC three-phase input at up to 70Hz input frequency. This range accommodates generator-fed power sources and facilities with wider-than-nominal utility voltage variation.

Q: Can the battery modules be replaced without shutting down the load?

A: The Galaxy VS platform supports modular, hot-swappable battery strings. The five included 9Ah smart battery modules can be replaced individually while the UPS continues operating, provided the remaining strings have sufficient capacity. Confirm your specific runtime and load requirements before performing a hot swap.

Q: Does the GVSUPS20KR0B5GS support Modbus TCP for building automation integration?

A: Yes. The unit supports Web, SNMP, and Modbus TCP network management protocols simultaneously. Modbus TCP enables direct integration with SCADA systems and building management systems without requiring additional protocol converters.

Q: What applications is the GVSUPS20KR0B5GS designed for?

A: Per manufacturer specifications, the unit is rated for business, data center, and industrial applications. The 480V three-phase configuration, N+1 redundancy architecture, and industrial-range input frequency tolerance make it appropriate for manufacturing plants, colocation data halls, and enterprise server rooms with three-phase 480V distribution.

Q: What output waveform does this UPS produce?

A: The GVSUPS20KR0B5GS produces a pure sine wave output at 480V AC / 60Hz. This is required for loads with active power factor correction (active PFC power supplies, variable-frequency drives) that can malfunction or overheat on modified sine wave UPS output.

Eden Phillips

The GVSUPS20KR0B5GS is a unit I'd specify with confidence for any three-phase 480V environment that can't tolerate a power event — the 0 ns transfer time isn't a marketing claim, it's the structural result of double-conversion topology where the load is permanently inverter-fed. That distinction matters when you're protecting a row of servers with active PFC supplies or a CNC controller that resets on a 4ms glitch.

Technical Highlights:

• Input Window (408–552V AC): That 144V of headroom on the input side means this UPS won't transfer to battery on a momentary utility sag or a generator that's still hunting. In industrial environments where input voltage is noisy, this prevents unnecessary battery cycling that shortens string life.
• 70Hz Input Frequency Tolerance: Diesel gensets routinely overshoot 60Hz on startup — 63–67Hz is common. A UPS with a tight ±2Hz window transfers to battery during every genset start. The 70Hz ceiling on this unit eliminates that nuisance entirely, which matters in facilities that test the generator monthly.
• Modbus TCP + SNMP + Web Management: Having all three live simultaneously is operationally significant. SCADA gets Modbus TCP, the NOC gets SNMP traps, and the facilities tech gets the web UI — no argument about which team owns the management card, no add-on purchase required.

Deployment Considerations:

• At 20kW three-phase 480V, plan for roughly 24A per phase at unity PF — your upstream breaker and feeder wire sizing needs to account for that, plus the NEC 125% continuous load derating. Don't assume a 30A breaker is adequate without checking your actual load profile against the feeder run length.
• The five 9Ah battery modules are smart-managed individually, but runtime at 20kW load will be short — these battery strings are sized for ride-through during generator transfer, not extended outages. If you need 10+ minutes at full load, confirm the battery configuration against your runtime requirement before ordering.

This unit is the right fit for a mid-size colocation cage, a manufacturing automation panel, or an enterprise server room already running 480V three-phase distribution — specifically where N+1 power redundancy and live battery swap capability justify the modular platform over a fixed-capacity alternative.
