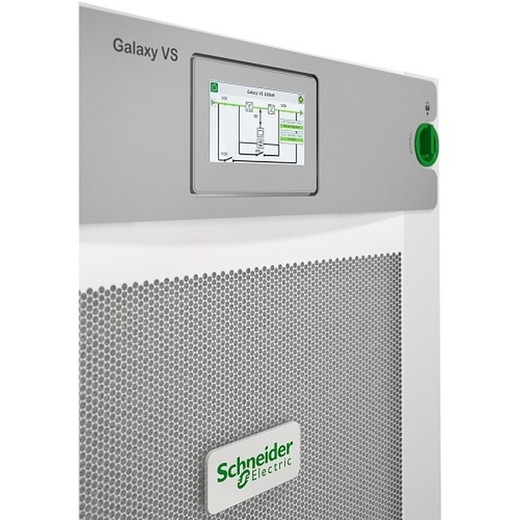

APC by Schneider Electric GVSUPS20K0B4FS Galaxy VS 20kW Three-Phase UPS

Overview

The APC by Schneider Electric GVSUPS20K0B4FS is a 20kVA/20kW three-phase uninterruptible power supply built for data centers, industrial facilities, and business-critical environments where a single millisecond of transfer time can disrupt operations. It accepts 230V AC three-phase input and delivers conditioned 208V AC output — the standard for North American data center equipment racks — with a true 0 nanosecond transfer time, meaning connected loads never see an interruption when switching from utility to battery. The unit supports up to four internal 9Ah Smart Modular Battery Strings, allowing capacity to scale inside the chassis without external battery cabinets cluttering your floor plan.

At 20kVA, this is purpose-sized for medium-density server rooms, edge data halls, and small-to-mid manufacturing environments where three-phase power distribution is already in place and single-phase UPS solutions are simply undersized for the load.

Key Features

• True Online Double-Conversion with 0ns Transfer Time: Unlike line-interactive designs that switch to battery on utility disturbance, this unit continuously regenerates output power from its inverter. The 0 nanosecond transfer time is not a marketing claim — it means connected servers, storage arrays, and network equipment never see a gap. Critical for environments running synchronous replication or latency-sensitive workloads.
• 20kVA / 20kW Three-Phase Output at 208V AC: Delivers full rated kilowatt output (unity power factor) at 208V — the voltage that North American data center PDUs, blade chassis, and high-density compute equipment expect. You're not buying 20kVA and derate-discounting it down to 14kW like older 0.7 PF designs.
• 230V AC Three-Phase Input: Designed to connect directly to standard 230V AC three-phase building distribution — typical in commercial and industrial construction. No step-up transformer required if your facility is wired to this standard.
• Wide Input Voltage Range (177V AC minimum): The unit continues operating on utility power down to 177V AC before switching to battery. In environments with voltage sag events — industrial facilities near heavy motor loads, older commercial buildings with variable grid quality — this headroom reduces unnecessary battery cycling, extending battery service life.
• Input Frequency Tolerance up to 70 Hz: Accepting input frequencies up to 70 Hz (with 60 Hz output) gives this UPS headroom to handle generator power, which often runs slightly off-frequency during load transients. In a generator-backed data center, this prevents nuisance transfers to battery during genset startup and stabilization.
• 60 Hz Regulated Output Frequency: Output is locked at 60 Hz regardless of input frequency variation. Connected equipment sees clean, stable frequency — important for servers and precision instruments that are sensitive to frequency drift.
• Up to 4 Internal Smart Modular Battery Strings: Battery capacity scales inside the chassis by adding 9Ah Smart Modular Battery Strings without external cabinets. This matters in dense equipment rooms where floor space is allocated to revenue-generating hardware, not battery enclosures. Runtime scales with string count — deploy with what your budget supports now and add strings as requirements grow.
• Rated for Business, Data Center, and Industrial Applications: The GVSUPS20K0B4FS carries application ratings across three deployment types. Industrial rating means it's been validated for the electrical noise and environmental conditions typical of manufacturing and process control environments — not just the cleaner environment of a purpose-built data center.

Integration and Compatibility

The 208V AC three-phase output is compatible with standard North American data center power distribution units (PDUs), server rack power strips, and directly with equipment rated for 200–208V three-phase input. The input at 230V three-phase aligns with international distribution standards and typical commercial building service in markets where 230V is the grid standard.

For facilities using power and UPS systems alongside structured APC by Schneider Electric deployments, the Galaxy VS line integrates with APC's EcoStruxure IT ecosystem for monitoring and management — though specific software compatibility should be confirmed against your current management platform. Pair with appropriately rated power distribution units downstream to match the 208V output to your rack equipment.

If you are building out a larger network infrastructure environment, consider how this unit fits into your overall power architecture — specifically whether your switchgear and transfer switches are rated for the 20kW continuous load at the specified input voltage range. Consult APC's APC by Schneider Electric product family documentation for parallel redundancy options if N+1 or 2N topologies are required at this power tier.

Frequently Asked Questions

Q: What is the output voltage of the GVSUPS20K0B4FS?

A: The output voltage is 208V AC, three-phase — the standard for North American data center and commercial equipment.

Q: What input voltage does the GVSUPS20K0B4FS require?

A: The unit is rated for 230V AC three-phase input, with a minimum operating input voltage of 177V AC before switching to battery.

Q: What does the 0 nanosecond transfer time mean in practice?

A: A 0ns transfer time means this is a true online double-conversion UPS. Output power is continuously generated from the inverter, so connected equipment experiences no interruption during a utility outage or disturbance — there is no switching gap.

Q: How many battery strings does the GVSUPS20K0B4FS support?

A: It supports up to four internal 9Ah Smart Modular Battery Strings. Battery capacity can be scaled by adding strings inside the chassis without requiring external battery cabinets.

Q: Is the GVSUPS20K0B4FS suitable for generator-backed installations?

A: Yes. The unit accepts input frequencies up to 70 Hz, which provides tolerance for the frequency variation typical of diesel generators during startup and load stabilization, reducing nuisance transfers to battery.

Q: What applications is the GVSUPS20K0B4FS rated for?

A: The unit carries application ratings for business, data center, and industrial use — meaning it has been validated for the electrical conditions and environmental demands of all three deployment types.

Marty Allison

The GVSUPS20K0B4FS is the unit I'd specify when a customer needs three-phase protection at 20kW and cannot tolerate any transfer gap — the 0 nanosecond transfer time is what separates true online double-conversion from the line-interactive designs that still dominate lower-cost procurement conversations. If your load includes synchronous storage or any application that faults on even a 10ms power gap, the Galaxy VS architecture is the right call at this power tier.

Technical Highlights:

• 0ns Transfer Time: True double-conversion topology — the inverter is always online, so connected loads never switch to raw battery. This is the fundamental architectural difference from line-interactive UPS designs.
• 177V AC Minimum Input: The wide input voltage floor means the unit rides through most sag events on utility without touching battery, preserving battery cycle life in facilities with inconsistent grid quality.
• Up to 4 Internal 9Ah Battery Strings: Modular internal battery scaling avoids external cabinet costs in constrained equipment rooms — relevant when your floor plan is measured in square feet per kilowatt.

Deployment Considerations:

• Input is 230V AC three-phase. Confirm your facility's distribution voltage before procurement — if your switchgear delivers 208V or 480V three-phase, you will need a transformer upstream of this unit.
• The evidence does not specify output kVA at reduced power factor or battery runtime curves. Before finalizing this UPS for a specific load, request APC's runtime calculator output for your actual load profile and number of battery strings installed.

Best fit for a small-to-medium data center or industrial control room that already has 230V three-phase distribution in place, needs scalable internal battery capacity, and is running equipment that will not tolerate a transfer gap under any fault condition.
