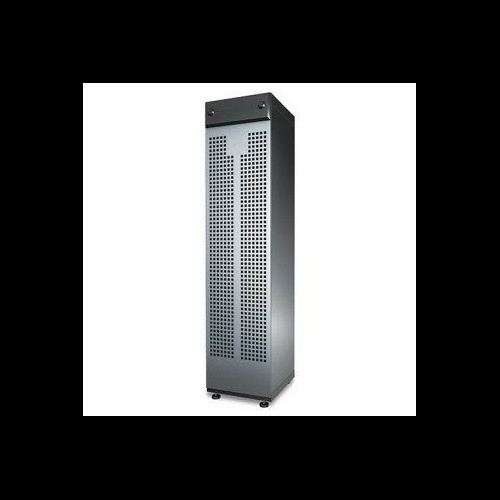

APC by Schneider Electric G35TSBP20K30F Galaxy 3500 Maintenance Bypass Cabinet 20-30kVA 208V
Overview
The APC by Schneider Electric G35TSBP20K30F is a floor-mount maintenance bypass cabinet purpose-built for MGE Galaxy 3500 series UPS units in the 20–30kVA range running on 208V infrastructure. If you need to perform UPS maintenance, firmware updates, or internal service without dropping power to your critical load — data center rows, network closets, or industrial control environments — this cabinet is what makes that possible without scheduling a downtime window.
Bypass cabinets are often underspecified in initial UPS deployments and added reactively after the first time a team faces a service event on a live system. The G35TSBP20K30F integrates directly with the Galaxy 3500 platform, providing a controlled, code-compliant path to bypass the UPS while maintaining continuous power delivery to downstream equipment. For facilities teams managing uptime SLAs, this is not optional equipment — it's what separates a serviceable UPS installation from one that requires a full shutdown to touch.
Key Features
- 20–30kVA bypass range: Covers the full power capacity tier of the MGE Galaxy 3500 series at this voltage class. A single cabinet handles both the 20kVA and 30kVA UPS variants, so procurement and spare-parts logistics are simplified if you're standardizing across multiple installations at the same site.
- 208V input voltage: Matched to standard North American three-phase distributed power infrastructure. No step-down transformers or voltage conversion hardware needed when integrating into a typical data center or industrial facility power distribution architecture.
- Floor-mount form factor: Designed to stand alongside the Galaxy 3500 UPS as a paired unit rather than being rack-mounted above or below it. Floor-mount placement is appropriate for the physical footprint and cabling architecture of the Galaxy 3500 platform — the cabinet height and depth align with the UPS chassis for a clean installation.
- Platform-specific compatibility: Engineered for the MGE Galaxy 3500 series — not a generic bypass enclosure. Platform-specific design means connector positions, control wiring paths, and switching logic are matched to the Galaxy 3500's internal architecture. Generic bypass solutions introduce integration risk that this unit eliminates.
- Maintenance bypass functionality: Allows the UPS to be safely isolated from the load path and powered down for servicing while utility power continues to feed downstream equipment directly through the bypass path. This is the core operational value: field service on a live UPS without a facilities outage.
- Commercial-grade enclosure construction: Cabinet-class build quality appropriate for data center and industrial environments where the bypass assembly may sit in service for a decade or more alongside the UPS it supports.
Integration and Compatibility
The G35TSBP20K30F is specified for the APC by Schneider Electric MGE Galaxy 3500 series UPS in the 20–30kVA capacity range at 208V. Verify your Galaxy 3500 model's rated kVA and input voltage against this cabinet's supported range before ordering — Galaxy 3500 units outside the 20–30kVA band or configured for different input voltages require a different bypass cabinet. This cabinet is not a cross-platform accessory and should not be paired with Galaxy 3500 units at other voltage configurations or with other UPS product families. Consult APC's Galaxy 3500 configuration documentation to confirm correct pairing with your specific UPS model number.
For installations where the APC by Schneider Electric UPS lineup is part of a broader power protection strategy — including parallel UPS configurations, extended battery modules, or network management cards — confirm that the bypass cabinet placement is accounted for in the physical layout and power distribution design before mounting. Facilities drawing and UPS accessory selection should treat the bypass cabinet as a required element of the service architecture, not an afterthought.
Frequently Asked Questions
Q: Which UPS models is the G35TSBP20K30F compatible with?
A: The G35TSBP20K30F is designed specifically for the APC MGE Galaxy 3500 series UPS units in the 20–30kVA capacity range at 208V input voltage. It is not intended for use with Galaxy 3500 units outside that kVA range or with other APC UPS product families.
Q: Does the G35TSBP20K30F allow the UPS to be serviced without powering down the connected load?
A: Yes. That is the primary purpose of a maintenance bypass cabinet. The G35TSBP20K30F provides a controlled bypass path so utility power continues feeding the downstream load while the Galaxy 3500 UPS is isolated and powered down for maintenance or service.
Q: Is this cabinet rack-mounted or floor-standing?
A: The G35TSBP20K30F is a floor-mount cabinet. It is designed to stand alongside the Galaxy 3500 UPS as a paired floor-standing unit, consistent with the physical installation architecture of the Galaxy 3500 platform.
Q: Can the G35TSBP20K30F be used with a 30kVA Galaxy 3500 at voltages other than 208V?
A: No. This bypass cabinet is specified for 208V input voltage. Galaxy 3500 installations at other input voltages require a bypass cabinet matched to that voltage configuration. Verify your UPS input voltage before selecting a bypass cabinet.
Q: Is a bypass cabinet required for Galaxy 3500 deployments, or is it optional?
A: It is technically optional at the point of initial installation, but facilities teams in environments with uptime SLAs typically treat it as required. Without a bypass cabinet, any internal UPS maintenance event requires a full load shutdown. In data center and critical infrastructure deployments, that is generally not acceptable.
The G35TSBP20K30F comes up in nearly every Galaxy 3500 deployment conversation I have with facilities engineers who have already had to tell their operations team that a UPS service event means a maintenance window. The 20–30kVA 208V bypass range covers the exact capacity tier where the Galaxy 3500 is most commonly deployed in mid-size data halls and network equipment rooms — and where downtime tolerance is lowest.
Technical Highlights:
- 20–30kVA supported range: Spans both the 20kVA and 30kVA Galaxy 3500 configurations at 208V, so a single SKU covers both capacity points in a standardized deployment — useful when a site has mixed 20kVA and 30kVA UPS units on the floor.
- 208V input match: Aligns directly with three-phase 208V distribution panels common in North American commercial data centers and industrial facilities. No voltage conversion hardware between the bypass cabinet and the power distribution architecture.
- Floor-mount form factor: The cabinet stands at floor level alongside the Galaxy 3500 chassis, which keeps cabling runs short and avoids the strain-relief and cable-management complications you'd get trying to route power cables up into a rack-mounted bypass assembly on a unit this size.
Deployment Considerations:
- Confirm your Galaxy 3500 model's rated kVA and input voltage explicitly before ordering — the Galaxy 3500 platform spans multiple kVA tiers and voltage configurations, and the bypass cabinet must be matched to both parameters, not just one.
- Plan floor space for the bypass cabinet as a discrete unit adjacent to the UPS in your initial facility layout. Retrofitting a bypass cabinet into a tight equipment room where the UPS was installed flush against a wall is a common headache that adds field labor cost to what should be a straightforward pairing.
The G35TSBP20K30F belongs in any Galaxy 3500 installation where the downstream load — server clusters, network core, security command infrastructure — carries an uptime obligation that cannot tolerate a service-induced power interruption. Specify it at initial deployment, not after the first service call.
