APC by Schneider Electric SBPSU10K30FC1M1-WP Maintenance Bypass Panel

Overview

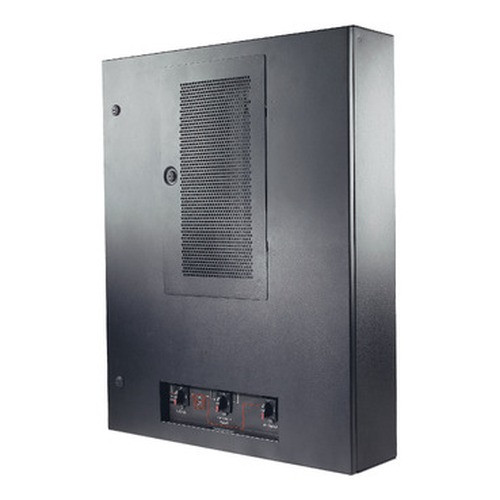

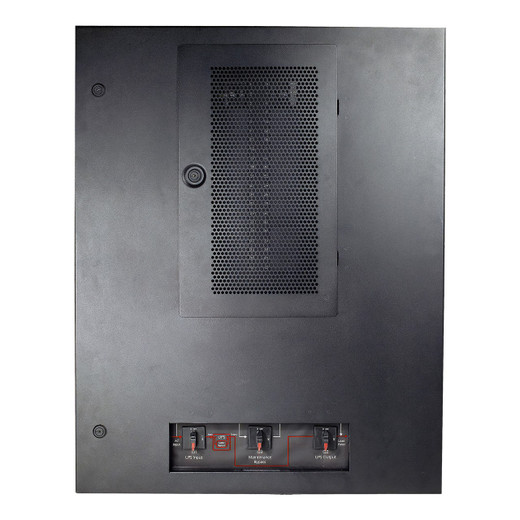

The APC Smart-UPS VT Maintenance Bypass Panel, model SBPSU10K30FC1M1-WP, provides a critical service path for UPS maintenance without disrupting connected equipment. This wall-mount unit is designed for seamless integration into infrastructure requiring high availability, ensuring continuous power to sensitive loads during UPS servicing or replacement. It handles 10-30KVA loads at 208V, featuring a 42-position disconnect for granular control.

Compatibility

This maintenance bypass panel is specifically designed for APC Smart-UPS VT 10-30KVA 208V UPS systems. It ensures a direct, secure connection for these UPS units, allowing for safe isolation and bypass during maintenance operations. Verify compatibility with your specific UPS model and configuration before installation.

Installation Notes

The SBPSU10K30FC1M1-WP requires wall mounting and is designed for use with 208V systems. Input frequency range is 50/60 Hz. The unit has a substantial weight of 130.27 lbs (59.09 kg) and dimensions of 29.49 inches (74.9 cm) in height, necessitating secure mounting by qualified personnel. Ensure adequate clearance for wiring and access. The 42-position disconnect offers precise load management during bypass operations.

Expert Analysis
Specifications
Weight: 130.000000
Color: Black
Color: Black
Dimensions: 29.49 in (74.9 cm)
Input Frequency: 50/60 Hz
Package 1 Weight: 130.27 lb (US) (59.09 kg)
Package 1 Height: 36.50 in (92.7 cm)
Package 1 Width: 11.73 in (29.8 cm)
Package 1 Length: 41.38 in (105.1 cm)
