APC by Schneider Electric SBPSU10K20HC1M1-WP Concise Descriptor
Overview

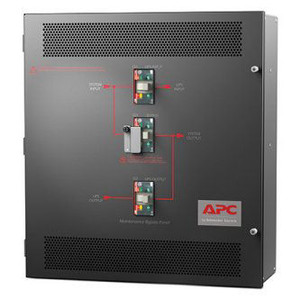

The APC Smart-UPS VT Maintenance Bypass Panel, model SBPSU10K20HC1M1-WP, provides a critical pathway for servicing your 10-20kVA 400V UPS system without interrupting power to connected equipment. This wallmount panel is designed for environments where continuous uptime is paramount, such as data centers, server rooms, and critical infrastructure facilities. It allows you to isolate the UPS for maintenance, battery replacement, or system upgrades while maintaining a direct power feed from the utility or generator.
Compatibility
This maintenance bypass panel is specifically designed for APC Smart-UPS VT 10kVA and 20kVA models operating on a 400V power system. Ensure your UPS model is within this range and voltage specification before integration. It is not compatible with other UPS lines or different voltage configurations.
Installation Notes
Installation requires qualified personnel familiar with electrical wiring and safety standards. The panel is designed for wall mounting and requires appropriate structural support. Operating temperature range is 0 to 40 °C (32 to 104 °F) and relative humidity should be kept between 0 and 95%, non-condensing. The unit weighs 7.01 kg (15.45 lbs). Ensure all connections are torqued to manufacturer specifications to prevent overheating and ensure reliable operation.
What's in the Box
- 1x APC Smart-UPS VT Maintenance Bypass Panel 10-20KVA 400V Wallmount (SBPSU10K20HC1M1-WP)
