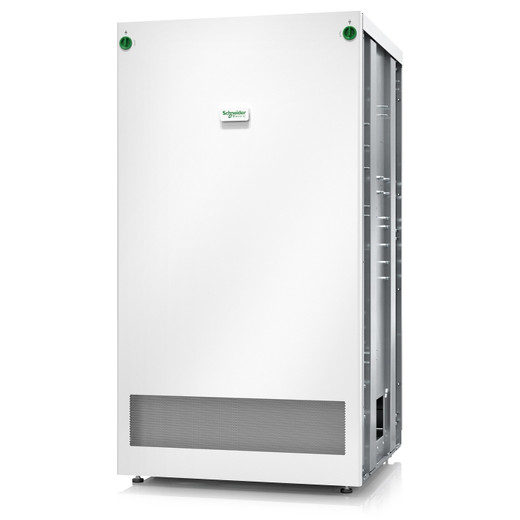

APC by Schneider Electric Galaxy vs Maintenance Bypass Cabinet with Output Transformer - GVSBPOT150

APC by Schneider Electric GVSBPOT150 Concise Descriptor

Overview

The APC by Schneider Electric GVSBPOT150 is a maintenance bypass cabinet designed to isolate a Galaxy VS UPS system for servicing without interrupting power to connected loads. This unit incorporates an output transformer, ensuring seamless power continuity during maintenance operations. It is critical for deployments where UPS uptime is paramount, such as in data centers or critical infrastructure environments.

Compatibility

This maintenance bypass cabinet is specifically designed for use with the APC by Schneider Electric Galaxy VS UPS series. It is compatible with the following UPS models: GVS100T, GVS150T, GVS200T, GVS300T, GVS400T, and GVS600T. Ensure your UPS model is listed before attempting integration.

Installation Notes

Installation requires qualified personnel familiar with electrical systems and UPS integration. The GVSBPOT150 must be installed in a clean, dry, and temperature-controlled environment, typically adjacent to the UPS unit it serves. Proper grounding and adherence to local electrical codes are mandatory. Wiring must be sized appropriately for the UPS system's maximum load capacity and the transformer's output rating.

What's in the Box

• 1x APC by Schneider Electric GVSBPOT150 Maintenance Bypass Cabinet with Output Transformer
• 1x Installation Guide
