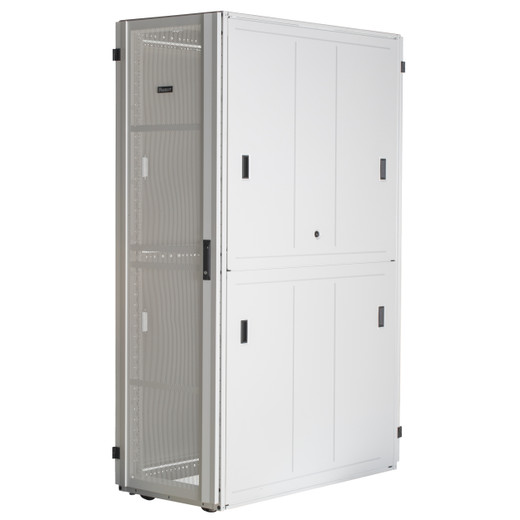

Panduit XGL64812W FlexFusion 48RU Server Rack Cabinet

The Panduit XGL64812W delivers 48RU of mounting capacity in a thermally-optimized 600mm-wide enclosure designed for high-density IP surveillance, network infrastructure, and UPS installations where floor space is limited but vertical equipment stacking runs deep. The 1070mm depth accommodates enterprise switches, patch panels, NVRs with drive expansion, and broadcast-quality UPS systems without front-to-back clearance issues. White powder-coated steel construction maintains a professional appearance in client-facing server rooms and control centers.

Key Features

• 48RU vertical mounting capacity supports full-height NVR builds, stacked PoE switches, and integrated UPS systems in a single enclosure
• 600mm width fits standard doorways and freight elevators while 1070mm depth clears deep equipment without rail extensions
• Perforated front door and split perforated rear doors maximize passive airflow for fanless switches and natural-convection cooling in climate-controlled rooms
• Included cage-nut rail hardware mounts any standard 19" rack equipment without tooling delays or field-drilled adapter plates
• Factory-installed PDU mounting brackets secure vertical power strips for per-device circuit monitoring and remote switching
• Lockable casters enable single-person repositioning during install and future expansions without lifting or tilting

The XGL64812W's perforated door design balances physical security with thermal performance. Front door perforation allows intake air to reach lower-mounted equipment — PoE switches, patch panels, environmental sensors — without forced-air fans, reducing noise in occupied spaces. The split rear doors open independently for service access to power distribution and rear-panel Ethernet without exposing the entire rack, critical when troubleshooting live surveillance or access-control systems where uptime cannot drop. Door perforations follow a hex pattern that blocks visual line-of-sight to indicator LEDs while passing air; integrators working in medical facilities and secure areas benefit from the privacy without sacrificing cooling. The hinged front door opens 180° and can be field-reversed for left or right swing depending on row orientation and aisle constraints.

The 600mm width (23.6") conserves floor space in retrofit projects where existing HVAC, cable trays, and door swings cannot shift. At 90.1" tall (2289mm), the 48RU capacity houses a complete surveillance infrastructure stack: top-mounted patch panel for incoming camera feeds, mid-rack NVR with RAID expansion, enterprise PoE switch delivering power to 48+ endpoints, fiber aggregation for building backbone, and bottom-mounted UPS with extended runtime batteries. The 1070mm depth clears deep NVRs (RAID expansion models running 16-24 surveillance drives) and long UPS modules without rear-door interference, eliminating the extended-depth tax that 800mm and 900mm racks impose. Integrators avoid the equipment-overlap issues and cable-bend-radius violations that plague shallow racks when surveillance NVRs, enterprise switches, and dual-conversion UPS systems share the same enclosure.

Deployment context: surveillance integrators install the XGL64812W in server rooms backing 64-128 camera systems where NVR chassis, 48-port PoE switches, fiber aggregation switches, and battery backup must coexist in a single supervised enclosure. Datacenter techs deploy these racks in edge micro-datacenters — retail chains, municipal facilities, manufacturing plants — where a single rack must house routing, switching, storage, compute, and backup power under a single key. The white finish integrates into office environments and avoids the industrial-black aesthetic that flags security infrastructure in lobbies and conference rooms. Medical facilities, corporate headquarters, and government offices specify white or light-gray racks to match architectural finishes; the XGL64812W's powder-coated white steel blends into climate-controlled IT closets and equipment rooms adjacent to occupied workspaces.

The included PDU bracket set mounts vertical power strips on either side rail, positioning outlets at equipment mid-height for short power cords and reducing cable sag that blocks airflow. Integrators mount dual PDUs for A/B power redundancy or single PDUs with remote switching and per-outlet monitoring. Cage-nut rails ship pre-installed with square-hole spacing that accepts any 19" rack device — no adapter plates, no proprietary tooling, no field modifications. The rails adjust forward and backward in 1/4" increments to accommodate equipment with non-standard depths or to create cable-management channels behind shallow patch panels. Casters lock individually and lift the base 100mm off the floor, allowing integrators to route cables under the rack during initial install and add/remove cables during MAC (moves, adds, changes) without rack teardown.

Steel construction carries equipment loads exceeding 1,000 lbs when the casters lock and the floor is level. Integrators load NVRs with 16+ surveillance drives (each drive adds 1-2 lbs, RAID controllers add heat and weight), stacked PoE switches (48-port models at 15-25 lbs each), fiber switches, and dual-conversion UPS systems (200-400 lbs depending on runtime) without deflection or stability concerns. The powder-coated finish resists scratches during transport and installation; the white coating does not yellow under fluorescent or LED lighting. Removable side panels allow cable entry from left, right, or bottom; integrators run power from raised-floor outlets, overhead cable trays, or wall-mounted circuits depending on site conditions. The split rear doors reduce the door-swing clearance requirement from 1070mm to 535mm per door, critical in narrow equipment rooms where a single full-width door cannot open without hitting opposing racks or walls.

This rack suits commercial security installations where a full-height NVR deployment must fit in a confined server room, IT/AV integration projects where network and surveillance infrastructure share a single rack to reduce cross-connects and failure points, and industrial control environments where a clean white enclosure, proven cable management, and field-proven thermal design eliminate the guesswork in rack selection. The FlexFusion series supports tool-free vertical cable managers, horizontal cable troughs, and top-exit cable routing accessories for integrators building structured deployments. The XGL64812W ships with the door, side panels, mounting rails, PDU brackets, and casters; integrators add equipment, power distribution, and cable management per project spec.
