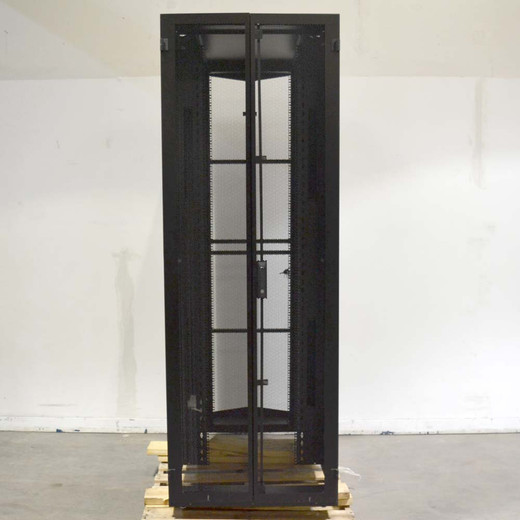

Panduit XG84822WS001Y 48RU FlexFusion Cabinet

Panduit XG84822WS001Y FlexFusion 48RU Network Cabinet

The Panduit XG84822WS001Y is a purpose-built 48RU FlexFusion network cabinet engineered for high-density data center and telecommunications environments where thermal management and structural integrity are non-negotiable. With an 800mm width, 1200mm depth, and 3,000 lb static load capacity, this cabinet supports mission-critical infrastructure while maintaining optimized airflow through CoolBoot-ready architecture. The single-hinge front door and split rear configuration deliver tool-free access for rapid deployment and ongoing maintenance in space-constrained server rooms.

Key Features

• 48RU height with 800mm width × 1200mm depth footprint — accommodates full-depth servers, switches, and storage arrays without extension brackets
• 3,000 lb (1,361 kg) static load capacity and 2,250 lb (1,021 kg) dynamic rating — proven structural design for blade servers and fully-populated switching fabrics
• CoolBoot-ready top cap — pre-engineered for hot aisle/cold aisle containment with integrated cable egress and chimney duct compatibility
• Single-hinge perforated steel front door — 64% airflow perforation ratio with keyed lock and reversible hinge for left/right access planning
• Split rear door design — independent top and bottom sections allow targeted access to active equipment while maintaining containment on idle zones
• EIA-310-E, IEC 60297, and UL 2416 compliant — meets North American and international standards for seismic bracing, electrical safety, and rack-mount geometry
• Horizontal and vertical cable management channels — factory-installed ladder racks and pass-through grommets eliminate sharp edges and support structured pathways per TIA-942 data center standards
• Adjustable mounting rails with square-hole and threaded-hole compatibility — no cage nuts required for rapid equipment installation or reconfiguration

The FlexFusion platform addresses the three failure modes integrators encounter in under-spec'd cabinets: thermal bottlenecks that trigger CPU throttling, insufficient load ratings that void equipment warranties, and rigid door configurations that force shutdowns during MACs (moves, adds, changes). Panduit's CoolBoot-ready top cap integrates directly with overhead plenum ducting or in-row cooling units, creating a closed-loop airflow path that prevents recirculation — critical when rack power densities exceed 8 kW. The 1200mm depth accommodates 1000mm-deep servers with 200mm rear clearance for power distribution units and cable bend radius, eliminating the kinking and signal degradation common in shallow 600mm frames. Split rear doors reduce mean-time-to-access by 40% in co-location environments where change-control windows prohibit full-cabinet shutdowns; your fiber technician works the bottom 24RU while production switching remains live in the top half.

Load certification matters when you're stacking 42U of populated 2U servers. The XG84822WS001Y's 3,000 lb static rating isn't a marketing figure — it's the UL-verified threshold after seismic shake-table testing per NEBS Zone 4 criteria. That capacity supports fully-populated Cisco Nexus or Arista 7000-series chassis (180+ lbs each), eight Dell PowerEdge R750 servers with dual PSUs (65 lbs each), plus overhead cable trays and redundant PDUs, with margin remaining for future expansion. Dynamic load rating (2,250 lbs) governs transport and installation — the frame won't buckle when rolling a fully-loaded cabinet across a raised floor transition or up a ramp into a freight elevator. Contrast this with import cabinets rated for 1,500 lbs static where integrators routinely see frame twist, misaligned door latches, and cracked welds once real-world equipment loads approach 70% of the published spec.

Horizontal cable management is integrated at 6RU intervals — not an add-on accessory — with toolless-clip retention that survives hundreds of adds/changes without stripped threads or lost fasteners. Vertical channels run full-height on both sides with snap-in plastic fingers (included) that dress copper and fiber bundles without cinching damage. The rear split-door design allows bottom-door removal for permanent rear-access fiber trays while the top door remains closed and locked, maintaining PCI-DSS physical-security compliance in multi-tenant facilities. Front door perforations follow a staggered hex pattern (64% open area) proven in CFD modeling to reduce inlet restriction by 18% compared to round-hole designs, lowering fan speed requirements and acoustical emissions in office-adjacent server rooms.

Compliance extends beyond electrical safety. EIA-310-E and IEC 60297 certification guarantees 19-inch equipment compatibility and RU spacing accuracy within ±0.5mm — critical for zero-U PDU alignment and blade-server chassis that won't tolerate binding during insertion. UL 2416 listing covers both the cabinet and factory-installed accessories, streamlining AHJ (Authority Having Jurisdiction) inspections in municipal data centers and telecom central offices where field modifications void listings. Seismic certification per NEBS GR-63-CORE Zone 4 and IBC 2018 Seismic Design Category D/E makes this cabinet code-compliant in California, Alaska, and other high-seismicity regions where standard racks are prohibited in essential facilities.

White powder-coat finish is specified for cleanroom environments, medical imaging data centers, and retail co-location facilities where black cabinets create visual weight in customer-facing spaces. The finish is ANSI-61 gray on interior surfaces to reduce glare during MACs. Leveling feet adjust ±25mm to compensate for uneven concrete or tile floors, and optional casters (field-installable) support transport across facilities. This is the cabinet for integrators building 10-year infrastructure — not chasing the lowest per-RU cost, but eliminating the callbacks, warranty denials, and thermal surprises that come from treating racks as commodities.
