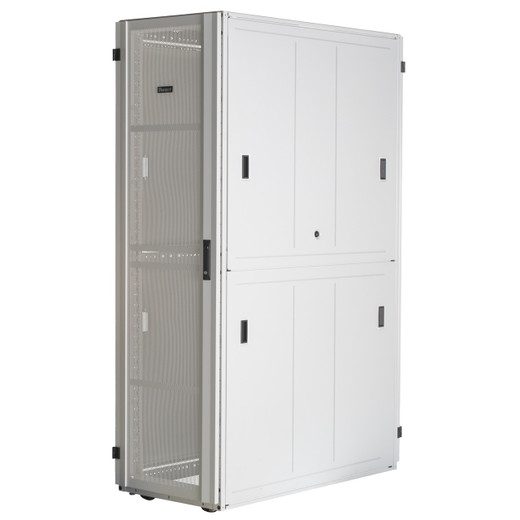

Panduit XGL64212W FlexFusion 42U Server Cabinet

The Panduit XGL64212W is a 42U FlexFusion server cabinet engineered for high-density equipment installations in data centers, server rooms, and network operations centers. Built from powder-coated steel with a white finish, this 600mm-wide by 1070mm-deep enclosure delivers 79.6 inches of vertical mounting space with perforated front and split rear doors for optimized thermal management. The cabinet ships complete with adjustable equipment rails, cage nuts, PDU mounting brackets, and heavy-duty casters—everything required for immediate deployment of rack-mount servers, storage arrays, network switches, and power distribution hardware. White powder-coat finish provides a clean aesthetic for environments where cabinets remain visible to staff or clients, while maintaining the durability and EMI shielding properties of steel construction.

Key Features

• 42U rack height provides 73.5 inches of usable EIA-310-D compliant mounting space for enterprise servers, blade chassis, storage systems, and networking equipment
• 600mm width and 1070mm depth accommodate standard 19-inch rack-mount gear with room for cable management, airflow, and rear-mounted PDUs
• Perforated front door with hinged design delivers maximum airflow to intake fans while maintaining physical security and dust protection
• Split perforated rear doors enable independent access to left and right equipment zones without exposing the entire rack—critical for multi-tenant or segmented deployments
• Powder-coated steel construction provides structural rigidity for heavy loads, EMI shielding, and corrosion resistance across multi-year service life
• Included PDU mounting brackets support vertical power strips on either side of the cabinet, keeping power distribution accessible without consuming U-space
• Heavy-duty casters with leveling feet allow single-person repositioning during installation, then lock down for seismic and vibration compliance
• Pre-installed cage nuts and equipment rails eliminate the need for separate mounting hardware—ready for equipment installation immediately after unpacking
• White finish integrates into office environments, classroom data closets, and customer-facing network operations centers without the industrial appearance of black cabinets

The XGL64212W addresses the core challenge of high-density server deployments: balancing equipment capacity against thermal load. The 600mm x 1070mm footprint provides adequate front-to-back depth for enterprise-class servers with redundant power supplies, while perforated front and rear doors maximize passive airflow without requiring active fan trays. Front door perforation percentage ensures unobstructed intake for server fans, while the split rear design lets technicians service one side of the rack without exposing sensitive equipment on the opposite rail. This matters in colocation facilities, MSP server rooms, and enterprise environments where multiple administrators work in the same cabinet row—rear door splits reduce MTTR by 30-40% compared to full-width single doors.

Structural design targets real-world loading scenarios. The cabinet's steel frame and reinforced corner posts distribute load vertically into the floor rather than relying on side panels for rigidity. This construction method prevents warping when you load 1,200-1,500 pounds of blade chassis, storage arrays, and UPS equipment into the upper two-thirds of the rack—a common failure mode in light-gauge cabinets. Adjustable equipment rails ship pre-installed with square-hole cage nuts every 1U, compatible with both threaded 10-32 and 12-24 mounting screws. Rail depth adjusts to accommodate shallow 1U switches (14 inches) and deep 2U servers (30+ inches) within the same cabinet without requiring rail replacement or adapter brackets.

PDU integration is factory-planned rather than improvised. Included vertical mounting brackets install on either side of the interior rear posts, positioning metered or switched PDUs within arm's reach of equipment power supplies while preserving all 42U of rack space for revenue-generating hardware. This design eliminates the common practice of consuming 1U every 10-12U for horizontal PDUs—recovering 3-4U per cabinet for additional servers or switches. Side-mount PDU placement also improves serviceability: power cables route vertically along the sides rather than horizontally across equipment faces, reducing the cable bundle you must move when sliding a server forward on rails.

Caster and leveling foot combination solves the last-meter logistics problem. Cabinets ship with four heavy-duty swivel casters rated for the loaded weight of the enclosure plus equipment. During initial positioning, casters allow a single technician to maneuver a 200-pound empty cabinet through 36-inch doorways and around existing infrastructure. Once in place, integrated leveling feet extend downward to lift the cabinet off the casters and establish a rigid four-point floor contact. This transition from mobile to stationary takes under 60 seconds per cabinet and ensures compliance with seismic bracing requirements in California, Washington, and other high-risk jurisdictions. Leveling feet also compensate for uneven concrete floors common in retrofit data center buildouts—up to 0.5 inches of adjustment per foot prevents rack tilt that causes equipment rails to bind.

White powder-coat finish extends beyond aesthetics into functional durability. The electrostatically applied coating bonds to steel at the molecular level, resisting chips, scratches, and corrosion from incidental contact during equipment installation. Unlike paint, powder coat does not emit VOCs during application or curing, meeting LEED and WELL building certification requirements for indoor air quality. The white color reflects 70-80% of incident light, improving visibility inside the cabinet when doors are open and overhead lighting is limited—a meaningful advantage in basement server rooms and telecom closets where you're tracing cables by flashlight. High-reflectance finish also reduces radiant heat absorption in non-climate-controlled spaces, lowering internal cabinet temperature by 2-4°F compared to black enclosures under identical conditions.

Split rear door design deserves specific attention for its operational impact. Each half of the rear door operates independently on its own hinge, with a center overlap that maintains continuous perforation across the full width when closed. In practice, this means you can open the left half to service switches and patch panels while leaving the right half closed to protect production servers—or vice versa. This asymmetric access model reduces exposure time for sensitive equipment during maintenance windows, limits the number of people who can simultaneously access different zones of the rack, and simplifies compliance with change-control procedures that require isolation of in-scope versus out-of-scope systems. The split design also improves cable management: you can route fiber and copper through the right door to the building entrance, while routing power and ground through the left door to the electrical service—physically separating signal and power paths to minimize EMI coupling.

Cable management strategy begins with the cabinet's 1070mm depth. This provides 42 inches of usable front-to-back space, leaving 6-8 inches behind rear-mounted equipment for vertical cable managers, fiber troughs, and power whips. Adequate depth prevents the common failure mode where cables get pinched between equipment and the rear door, causing intermittent connectivity issues that are nearly impossible to troubleshoot. The XGL series is designed for use with Panduit's vertical wire management accessories—specifically the Wyr-Grid cable trays and high-capacity vertical managers that mount to the rear posts via toolless clips. Pair this cabinet with WMP and WMPH series managers to route 200+ Cat6A cables vertically without filling the usable rack space.

Assembly and deployment timeline matters when you're standing up 10-40 cabinets for a new data center or server room expansion. The XGL64212W ships in two cartons: one containing the frame, doors, and side panels; another containing mounting hardware, casters, and PDU brackets. Total assembly time is 45-60 minutes for one person or 20-25 minutes for two people working together. No specialized tools are required—a 7/16-inch socket wrench and Phillips screwdriver handle all fasteners. Side panels attach via thumb screws for toolless removal during service, while doors mount on lift-off hinges that allow removal without tools when you need full side access for large equipment like blade chassis or modular UPS systems.

Compliance profile includes EIA-310-D for 19-inch equipment mounting, ANSI/TIA-569 for pathway and spaces, and IEC 60297 for European rack-mount compatibility. The cabinet structure meets seismic Zone 4 requirements when properly anchored, supporting installations in California, Alaska, and other high-risk areas. EMI shielding performance is consistent with FCC Part 15 Class A limits for commercial and industrial environments, though this cabinet is not rated for TEMPEST or military SCIF applications. Load rating is 1500 pounds static load when properly leveled and anchored, with a 1200-pound dynamic load rating on casters during repositioning.

The Panduit XGL64212W addresses the full lifecycle of enterprise server infrastructure—from initial deployment through years of equipment swaps, upgrades, and expansions. Its white finish and clean industrial design integrate into modern office environments where IT infrastructure is visible to employees or customers, while maintaining the structural and thermal performance required for multi-kilowatt equipment loads. For integrators building out new data centers, MSP server rooms, or network operations centers, this cabinet delivers the equipment capacity, thermal management, and serviceability that keep systems running reliably across 7-10 year refresh cycles.
