Panduit FROV4524X4LYL FiberRunner 45-Degree Outside Vertical Bend
Overview

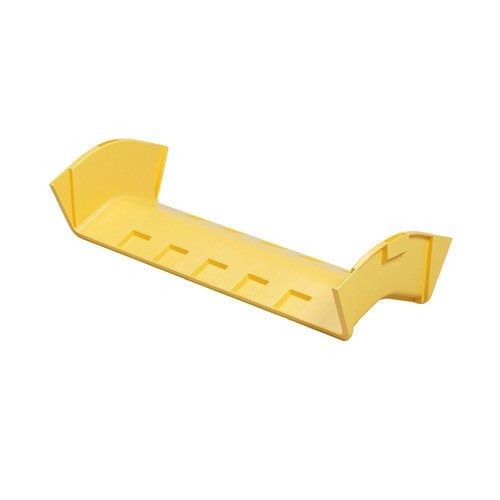

The Panduit FROV4524X4LYL is a 45-degree outside vertical angle fitting for the Panduit FiberRunner 24x4 system, designed specifically to route fiber downward from a horizontal tray run in data centers and telecom central offices. Measuring 9.93 in. wide and 7.28 in. tall, this yellow polycarbonate/ABS fitting creates a clean, controlled outside bend — the type of geometry you need when a horizontal run must transition to a vertical drop without stressing cable bend radius. It ships as a single unit (package quantity: 1), and pairs with the FRIV4524X4LYL inside vertical 45-degree connector to complete a full plane-change assembly.
Key Features
- 45-Degree Outside Vertical Geometry: Directs fiber from horizontal to a downward path along the outside of the bend arc. This is the correct fitting when your cable run exits horizontally and must descend — use the inside vertical (FRIV4524X4LYL) as the paired companion piece to complete the transition cleanly.
- 24x4 FiberRunner System Compatibility: Sized exclusively for the 4x4 FiberRunner channel. Mixing with other FiberRunner cross-sections (2x2, 4x6) will not work — verify your installed tray width before ordering.
- Polycarbonate/ABS Construction: The PC/ABS blend handles the mechanical load of a populated fiber tray without creep, and tolerates the temperature swings common in raised-floor and overhead data center environments.
- UL Listed (2024A) for Fiber Optic Raceway Assemblies: Listing under UL 2024A means the fitting has been independently tested as part of a raceway assembly — relevant for inspectors and commissioning sign-off in commercial and enterprise facilities.
- NEBS Level 3 / Telcordia GR-63-CORE Compliant: Meets seismic, thermal, and environmental stress requirements for telecom central office deployments. If your project has a NEBS requirement in the scope, this fitting satisfies it without a separate qualification step.
- RoHS Compliant: Meets EU RoHS restrictions on hazardous substances — relevant for projects with environmental compliance requirements or export to EU markets.
- Yellow Color Coding: The yellow finish follows standard color-coding for single-mode fiber pathways in structured cabling practice, reducing misrouting risk during moves, adds, and changes.
Integration and Compatibility
The FROV4524X4LYL is purpose-built for the FiberRunner 4x4 routing system. A complete outside-to-inside plane change requires the companion inside vertical fitting FRIV4524X4LYL — the outside fitting alone covers only half the bend. Route the pair together when transitioning from overhead horizontal runs to vertical drops at equipment racks or wall-mount panels. For horizontal direction changes in the same plane, look at the FiberRunner horizontal elbow and tee fittings in the same 24x4 family. This fitting is not designed for copper or coax — it is a fiber routing management component only.
Frequently Asked Questions
Q: What companion fitting is required to complete the 45-degree plane change?
A: The FROV4524X4LYL outside vertical angle must be paired with the Panduit FRIV4524X4LYL inside vertical 45-degree connector to complete a full plane-change transition on the FiberRunner 4x4 system.
Q: Is the FROV4524X4LYL compatible with FiberRunner 2x2 or 4x6 systems?
A: No. This fitting is sized exclusively for the 4x4 FiberRunner channel. It is not interchangeable with other FiberRunner cross-section sizes.
Q: Does the FROV4524X4LYL meet NEBS requirements?
A: Yes. It meets Telcordia GR-63-CORE relevant test requirements and is qualified to NEBS Level 3, making it suitable for telecom central office installations with NEBS compliance requirements.
Q: Is this fitting UL listed?
A: Yes. The FROV4524X4LYL is UL listed under standard 2024A for fiber optic raceway assemblies.
Q: What is the package quantity?
A: This fitting ships as a single unit (quantity: 1 per package).
The FROV4524X4LYL is a deceptively simple component that causes real problems when misspecified. It handles one geometric task — creating a 45-degree outside vertical bend in a FiberRunner 24x4 pathway — and it only works correctly when paired with its inside vertical counterpart, FRIV4524X4LYL. Miss that pairing and you have half a transition, which means fiber hanging unsupported through the bend arc.
Technical Highlights:
- NEBS Level 3: Meets Telcordia GR-63-CORE seismic and environmental test requirements — a hard prerequisite for most carrier and co-lo central office projects, and one less qualification step on your submittal checklist.
- UL 2024A Listing: Independent listing for fiber raceway assemblies covers the fitting as part of the system, not just the material — which is what AHJs and commissioning engineers actually ask for.
- PC/ABS Construction: The polycarbonate/ABS blend handles the mechanical load of a fully populated 24x4 fiber tray without deforming under sustained weight — relevant in high-density backbone runs where raceway fittings carry significant cable mass.
Deployment Considerations:
- The 9.93 in. width and 7.28 in. height of this fitting means it occupies meaningful overhead real estate — plan your ladder rack or cable tray routing clearances before committing to fitting placement, especially at congested rack-top transitions.
- Yellow color coding is the standard for single-mode fiber in TIA-598 practice. If your site runs OM3/OM4 multimode in aqua or orange pathways, verify your color-coding convention before installing yellow fittings — the visual segregation is part of the system's maintainability value.
Specify the FROV4524X4LYL for data center backbone fiber routing where NEBS compliance is a contract requirement and the cable pathway transitions from an overhead horizontal run to a vertical drop at the equipment row — the geometry this fitting was built to handle.
