Panduit FROV4512X4LBL FiberRunner 12x4 Outside Vertical 45-Degree Fitting

Overview

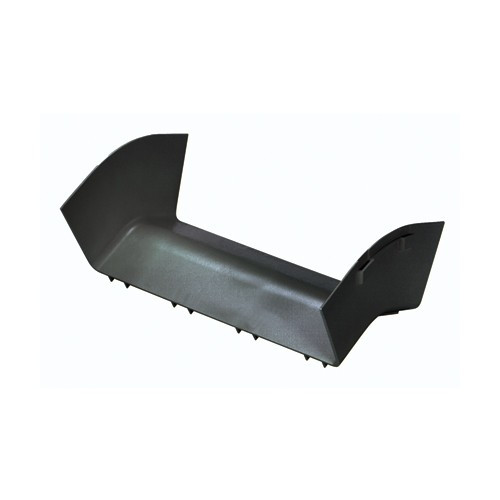

The Panduit FROV4512X4LBL is a 45-degree outside vertical angle fitting engineered for the Panduit FiberRunner 12x4 cable routing system. It creates a controlled downward bend from a horizontal fiber run — the specific geometry needed when a horizontal tray must transition to a lower elevation without kinking fiber or violating bend-radius minimums. This fitting is the outside half of a two-piece vertical plane change: it pairs with the inside vertical fitting FRIV4512X4LBL to complete the transition cleanly and symmetrically. If you're managing structured fiber cable management in a data center or telecom central office, this is the component that keeps your routing geometry honest at the bend.

Built from polycarbonate/ABS, the FROV4512X4LBL measures 6.08 in. (154.4 mm) tall and 7.47 in. (189.7 mm) wide, with an overall length of 13.91 in. Finished in black, it integrates visually and mechanically with the rest of the 12x4 FiberRunner channel system.

Key Features

• 45-Degree Outside Vertical Geometry: Designed specifically for downward plane changes out of a horizontal FiberRunner run. Without this piece, installers resort to improvised bends that risk fiber damage and non-compliance with minimum bend-radius standards — this fitting enforces the correct geometry every time.
• Polycarbonate/ABS Construction: The PC/ABS blend balances rigidity with impact resistance — relevant in active data centers where cable managers and equipment are frequently moved. It holds its shape under the sustained load of a fully populated 12x4 channel without creeping or cracking.
• Pairs with FRIV4512X4LBL Inside Fitting: The outside vertical fitting alone does not complete the bend. Specify FRIV4512X4LBL alongside the FROV4512X4LBL whenever you're changing the vertical plane of a horizontal run. Missing the inside piece is the single most common ordering error on this part — order both at the same time.
• UL Listed per UL 2024A for Fiber Optic Raceways: UL listing under the fiber raceway standard means the fitting has been evaluated for use in structured cabling assemblies — relevant when your project requires code-compliant fiber pathway documentation or AHJ sign-off on pathway assemblies.
• NEBS Level 3 / Telcordia GR-63-CORE Compliant: Telco central office environments impose seismic, thermal, and EMI requirements that general commercial cable management products do not meet. NEBS Level 3 compliance means this fitting is qualified for carrier-grade and central office deployments where GR-63 seismic zone testing is a procurement requirement — a spec that eliminates a large portion of competing products from consideration in those environments.
• RoHS Compliant: Meets EU RoHS requirements for restricted hazardous substances, supporting sustainability reporting and import compliance for projects with environmental procurement mandates.
• Sold as Single Unit: Package quantity is 1. For large-scale deployments with multiple vertical transitions, plan your bill of materials accordingly — each bend point requires one FROV4512X4LBL and one FRIV4512X4LBL.

Integration & Compatibility

The FROV4512X4LBL is designed exclusively for the FiberRunner 12x4 system. Do not attempt to use this fitting with 6x4, 4x4, or other FiberRunner channel widths — the geometry is specific to the 12x4 cross-section. For data center backbone runs and telecom main distribution frames where 12x4 is the standard channel size, this fitting slots into the existing system without additional adapters or hardware. Routing a full vertical transition in a structured cable management installation also requires planning the companion inside vertical fitting (FRIV4512X4LBL), horizontal fittings, and straight sections as a coordinated bill of materials rather than ordering individual pieces reactively.

What's in the Box

• 1x Panduit FROV4512X4LBL FiberRunner 12x4 Outside Vertical 45-Degree Fitting

Frequently Asked Questions

Q: What is the difference between the FROV4512X4LBL and the FRIV4512X4LBL?

A: The FROV4512X4LBL is the outside vertical fitting and the FRIV4512X4LBL is the inside vertical fitting. Both are required together to complete a 45-degree vertical plane change in a FiberRunner 12x4 horizontal run. The outside fitting handles the outer radius of the bend; the inside fitting handles the inner radius. Order both when specifying a vertical transition.

Q: Which FiberRunner channel size does the FROV4512X4LBL fit?

A: The FROV4512X4LBL is engineered specifically for the FiberRunner 12x4 system (12-inch wide by 4-inch deep channel). It is not compatible with other FiberRunner channel sizes such as 6x4 or 4x4.

Q: Is the FROV4512X4LBL NEBS Level 3 compliant?

A: Yes. The FROV4512X4LBL meets the requirements for relevant tests in Telcordia GR-63-CORE and qualifies as NEBS Level 3 compliant, making it suitable for carrier-grade telecom central office environments with seismic and environmental requirements.

Q: Is the FROV4512X4LBL RoHS compliant?

A: Yes. The FROV4512X4LBL is RoHS compliant, meeting EU restrictions on hazardous substances in electrical and electronic equipment.

Q: What are the overall dimensions of the FROV4512X4LBL?

A: The fitting measures 6.08 inches (154.4 mm) in height, 7.47 inches (189.7 mm) in width, and 13.91 inches in overall length.

Q: Is the FROV4512X4LBL sold individually or as a set?

A: It is sold as a single unit (package quantity of 1). If you need multiple vertical transitions, add one unit per bend point to your bill of materials, along with the corresponding FRIV4512X4LBL inside fitting for each location.

Jerry Tildsen

The FROV4512X4LBL is one of those parts that looks simple until you're mid-installation and realize you ordered only the outside fitting without the companion inside piece — or worse, specced the wrong channel size. This fitting is strictly for the 12x4 FiberRunner cross-section, and the 45-degree outside vertical geometry is purpose-built for one job: bending a horizontal fiber run downward at a controlled angle while keeping bend radius within spec. It's a structural component, not an afterthought.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE: Qualifies for carrier-grade central office deployments where seismic zone testing is a hard procurement requirement — eliminates the compliance risk of using general commercial cable management in a telco environment.
• UL Listed under UL 2024A: Fiber optic raceway listing covers the assembly, not just the material — relevant for AHJ inspections and structured cabling documentation on projects that require pathway compliance sign-off.
• PC/ABS Construction at 13.91 in. Overall Length: The polycarbonate/ABS blend holds its dimensional stability across the full 13.91-inch span without flex under load — important when the channel is fully populated with trunk cables that exert sustained lateral pressure at the bend.

Deployment Considerations:

• Always specify the FRIV4512X4LBL inside vertical fitting on the same PO. A vertical plane change in FiberRunner 12x4 is a two-piece assembly — the outside fitting alone leaves the bend incomplete and the fiber unprotected on the inner radius.
• Package quantity is 1 unit. On data center deployments with multiple MDA-to-HDA vertical drops, count each bend point separately and build your BOM accordingly before ordering — this is not a bulk-pack item.

The FROV4512X4LBL is the correct specification for telecom central offices and data center backbone routes using FiberRunner 12x4 where NEBS Level 3 compliance is a project requirement and a 45-degree downward transition is needed at the tray level.
