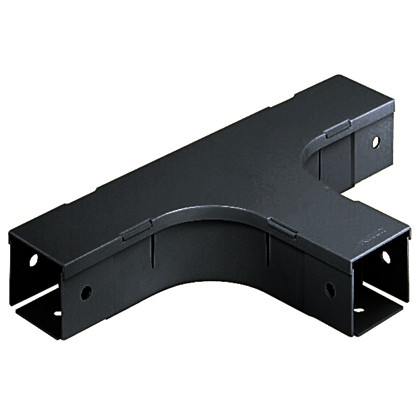

Panduit FT2X2LBL FiberRunner 2x2 Horizontal Tee Fitting
The Panduit FT2X2LBL is a horizontal tee fitting for the FiberRunner 2x2 cable routing system, designed to branch a horizontal fiber run 90 degrees without lifting cables out of the pathway. If you're laying out a fiber cable management grid in a data center or central telecom office and need a clean T-junction that keeps bend radius in check, this is the component that makes the corner without improvisation.
Overview
Built from polycarbonate/ABS for the rigidity structured cabling environments demand, the FT2X2LBL spans 12.16 inches wide and 2.08 inches tall — sized specifically for the FiberRunner 2x2 channel. The horizontal tee creates a 90° branch off a straight horizontal run, and Panduit's design accommodates multiple drop-out options including overflow fittings, vertical tees, three-face trumpets, corrugated conduit transitions, and connections back into the broader FiberRunner system. That flexibility matters when your pathway layout shifts mid-rack row or you need to feed a secondary cabinet from the main run.
Key Features
- 90° Horizontal Branch: Creates a clean T-junction in a horizontal fiber pathway without disrupting cables already routed through the main channel — no re-pulling required when adding branch runs later.
- Polycarbonate/ABS Construction: The material blend provides impact resistance alongside the dimensional stability needed to maintain consistent bend radius under a loaded channel — important when fiber counts climb and cable weight increases.
- 12.16-Inch Width Footprint: At 308.9mm across, the fitting matches the FiberRunner 2x2 channel width exactly, so alignment to adjacent fittings and straight sections is straightforward without shimming or adapter pieces.
- Multiple Drop-Out Compatibility: Supports overflow fittings, vertical tees with three-face trumpets, corrugated conduit transitions, and direct FiberRunner system connections — giving you routing options at the junction rather than forcing a single exit path.
- RoHS Compliance: Meets RoHS requirements, which satisfies procurement restrictions in enterprise and government environments where restricted substances documentation is a contract requirement.
- UL-Listed Optical Cable Guide Assemblies: UL certification for optical cable guide assemblies to 2024A means the installation can be documented against a recognized safety standard — relevant for facilities inspections and insurance reviews.
- Telcordia GR-63-CORE / NEBS Level 3: Tested to Network Equipment Building Systems Level 3 seismic and environmental standards. For telecom central offices and carrier-grade data centers where NEBS compliance is a baseline requirement, this fitting qualifies without substitution.
Integration & Compatibility
The FT2X2LBL is designed exclusively for the Panduit FiberRunner 2x2 system. It does not cross-fit with FiberRunner 4x4 or 6x4 channels — verify your installed channel size before ordering. The fitting ships as a single unit (package quantity: 1) with a carton quantity of 5, so plan procurement in multiples of 5 for project-volume pricing efficiency. For larger network cable management deployments requiring multiple junction types, pair with compatible FiberRunner straight sections, 90-degree bends, and end caps from the same family to maintain system continuity.
What's in the Box
- 1x Panduit FT2X2LBL FiberRunner 2x2 Horizontal Tee Fitting
Frequently Asked Questions
Q: What cable routing system is the FT2X2LBL compatible with?
A: The FT2X2LBL is designed specifically for the Panduit FiberRunner 2x2 system. It is not interchangeable with FiberRunner 4x4 or 6x4 channels.
Q: What certifications does the FT2X2LBL meet?
A: The FT2X2LBL is RoHS compliant, UL-listed for optical cable guide assemblies to 2024A, and tested to Telcordia GR-63-CORE and NEBS Level 3 standards.
Q: How many units come in a carton?
A: Each carton contains 5 units. The FT2X2LBL is sold individually (package quantity of 1).
Q: What are the overall dimensions of the FT2X2LBL?
A: The fitting measures 12.16 inches wide (308.9mm), 2.08 inches tall (52.8mm), and 7.29 inches in overall length.
Q: Is the FT2X2LBL suitable for telecom central offices?
A: Yes. The FT2X2LBL is tested to NEBS Level 3 (Telcordia GR-63-CORE), which is the standard baseline for carrier-grade telecom central office environments.
Q: What material is the FT2X2LBL made from?
A: Polycarbonate/ABS — a blend that provides both impact resistance and the dimensional stability needed to maintain consistent fiber bend radius under load.
The FT2X2LBL is one of those fittings that sounds straightforward until you're mid-project and realize you specced the wrong junction type. This is the horizontal tee — it branches 90 degrees within the same horizontal plane. At 12.16 inches wide and built to NEBS Level 3, it's the right call for carrier-grade data center and central office builds where both the seismic rating and the bend-radius discipline of a closed pathway matter.
Technical Highlights:
- NEBS Level 3 / Telcordia GR-63-CORE: Not every fiber fitting carries this certification. For telecom central offices where NEBS compliance is contractually required, the FT2X2LBL satisfies the standard without requiring a variance or substitution approval.
- 12.16-inch (308.9mm) Width: Exact match to the FiberRunner 2x2 channel — no adapter, no shimming. Mismatched fittings introduce stress points on fiber; exact-fit eliminates that risk at the junction.
- Multiple Drop-Out Options: Overflow fittings, vertical tees with three-face trumpets, corrugated conduit transitions — the junction doesn't lock you into one exit path, which is the difference between a flexible layout and one that requires rework when the cabinet footprint shifts.
Deployment Considerations:
- The FT2X2LBL is exclusively 2x2 — confirm your installed FiberRunner channel size before ordering. A 4x4 run requires the 4x4 horizontal tee; mixing sizes will leave you with a fitting that physically cannot mate to the channel.
- Package quantity is 1, carton quantity is 5. If your BOM shows 8 tee fittings, order 10 (two cartons) to avoid a partial-carton reorder delay mid-installation.
For a structured data center cable management grid in a carrier-grade central office or high-density enterprise MDF — where NEBS certification is non-negotiable and fiber pathway continuity across junction points is documented — the FT2X2LBL is the correct component, not a substitute.
