Panduit FBC2X2LYL FiberRunner 2x2 QuikLock Fiber Routing Coupler

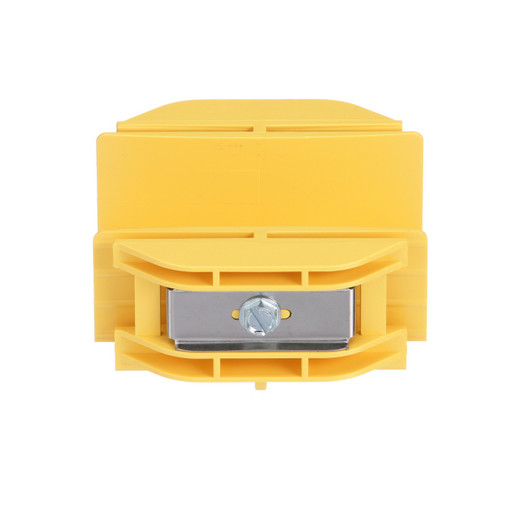

The Panduit FBC2X2LYL is a yellow polycarbonate/ABS coupler designed to connect two sections of FiberRunner™ 2x2 (50mm x 50mm) fiber routing channel and/or fittings using the QuikLock™ tool-free snap interface. Targeted at data centers and central telecommunications offices, this coupler eliminates the need for hand tools at splice points — a small detail that adds up when you're extending runs across a structured cabling project with dozens of connection points.

Key Features

• QuikLock™ Tool-Free Connection: The snap-fit QuikLock mechanism lets installers join channel sections without screwdrivers or fasteners. On large-scale rack-and-cable-management buildouts, reducing per-connection time at each coupler keeps labor on track — no loose hardware to drop into open trays below.
• Polycarbonate/ABS Construction: The PC/ABS blend delivers the rigidity to hold channel alignment under cable weight while resisting the impact and temperature swings common in active data center environments. You're not getting a flimsy plastic clip — this is the same material class used throughout the Panduit FiberRunner catalog.
• Yellow Color Coding: Yellow is the industry convention for single-mode fiber pathways. Installing the FBC2X2LYL in a yellow FiberRunner run makes it visually obvious at a glance which channel carries SM fiber — useful when techs are tracing routes months after initial installation without documentation in hand.
• 41.6mm (1.64 in) Profile Height: The coupler's 41.6mm height matches the 2x2 (50mm x 50mm) FiberRunner channel profile, so spliced runs maintain a flush, continuous outer surface. A mismatched coupler that sticks up or narrows the interior creates stress points on fiber bend radius — this one preserves channel geometry.
• RoHS Compliant: Compliance with RoHS restrictions on hazardous substances is required for data center builds in the EU and increasingly demanded by enterprise procurement in North America. The FBC2X2LYL ships RoHS-compliant out of the box — no substitution required to satisfy that checkbox on your materials list.
• UL-Listed Fiber Routing Assemblies (through 2024): UL certification on the fiber routing assembly means the coupler has been independently tested as part of the FiberRunner system. For projects with AHJ sign-off requirements or corporate compliance audits, this matters — self-certified claims don't satisfy the same documentation trail.
• Telcordia GR-63-CORE / NEBS Level 3 Tested: NEBS Level 3 is the benchmark for physical and environmental durability in telecom central offices — covering seismic zone 4, temperature cycling, vibration, and airborne contaminants. If you're deploying in a carrier-grade CO or any facility requiring NEBS compliance, the FBC2X2LYL meets that bar without a waiver conversation.
• Single-Piece Package Quantity: Sold individually (package quantity: 1), with a carton quantity of 5. You can buy exactly what a run requires without committing to large bulk packs — practical for project-specific pulls or maintenance stock.

Integration & Compatibility

The FBC2X2LYL is purpose-built for the FiberRunner 2x2 system — the 50mm x 50mm channel format used in overhead ladder rack runs, wall-mounted pathways, and raised-floor distribution in data centers and telecom offices. The QuikLock interface is proprietary to the FiberRunner line, so this coupler is not interchangeable with generic cable tray connectors or other manufacturers' fiber duct systems.

When planning your fiber routing infrastructure, pair FiberRunner channels with compatible Panduit cable management accessories — end caps, splice covers, and mounting brackets in the same 2x2 series — to maintain consistent bend-radius protection throughout the pathway. For structured cabling projects that also require copper pathway management, review the network infrastructure planning guide to coordinate fiber and copper routing without crossover conflicts.

Frequently Asked Questions

Q: Is the FBC2X2LYL compatible with FiberRunner channels from other size families (e.g., 4x4 or 2x4)?

A: No. The FBC2X2LYL is designed specifically for the FiberRunner 2x2 (50mm x 50mm) channel size. FiberRunner couplers are not interchangeable across different channel dimensions — using a 2x2 coupler on a 4x4 or 2x4 run will not provide a secure mechanical connection or maintain channel geometry.

Q: Does the FBC2X2LYL require any tools to install?

A: No tools are required. The QuikLock™ snap-fit mechanism connects two FiberRunner channel sections or fittings with a direct push-to-lock action. This is one of the primary design advantages of the FiberRunner system for fast-deploy data center buildouts.

Q: What does the yellow color indicate on the FBC2X2LYL?

A: Yellow is the standard color designation for single-mode fiber (SMF) pathways per common industry practice. The FBC2X2LYL yellow coupler is intended for use in yellow FiberRunner runs carrying single-mode fiber cables, making pathway identification straightforward during moves, adds, and changes.

Q: Is the FBC2X2LYL RoHS compliant?

A: Yes. The FBC2X2LYL meets RoHS (Restriction of Hazardous Substances) requirements, as confirmed in the product standards documentation.

Q: What certifications does the FBC2X2LYL carry?

A: The FBC2X2LYL is RoHS compliant, part of UL-listed fiber routing cable assemblies (certified through 2024), and has been tested to Telcordia GR-63-CORE and NEBS (Network Equipment Building Systems) Level 3 standards — the physical and environmental durability benchmark for carrier-grade telecom central office equipment.

Q: How many couplers come in a carton?

A: The FBC2X2LYL has a package quantity of 1 (sold individually) and a carton quantity of 5. Order the individual quantity you need for your specific run.

Ted Perry

The FBC2X2LYL gets overlooked because it's a coupler — but get the wrong one and you'll have channel misalignment, stressed bend radii, and a splice point that fails inspection. The QuikLock™ tool-free snap-fit on this particular part means you're not improvising with cable ties or zip-strip workarounds when extending a 2x2 FiberRunner run mid-project.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE: Meeting NEBS Level 3 means this coupler has passed seismic zone 4, temperature cycling, and vibration testing — not just a desk-tested plastic part. If you're spec'ing for a carrier CO, this certification is often a non-negotiable line item in the site acceptance test document.
• PC/ABS Material: Polycarbonate/ABS provides meaningful impact resistance without adding brittleness at low temperatures, which matters in raised-floor environments where ambient temps can drop significantly during cooling system maintenance windows.
• 41.6mm Profile Height: At 41.6mm, the coupler matches the 2x2 FiberRunner channel height exactly — no step-up or step-down at the joint. A flush exterior profile keeps cable management looking intentional and avoids creating snag points during future fiber pulls through the same pathway.

Deployment Considerations:

• The QuikLock interface is specific to Panduit FiberRunner — if you're mixing channel brands on a retrofit project, verify the existing channel uses the same interface before ordering. This coupler will not adapt to non-FiberRunner channel systems.
• Yellow signifies single-mode fiber by convention. If your run carries multimode, you'd normally use an aqua (OM3/OM4) or orange (OM1/OM2) channel — deploying yellow couplers on a multimode run creates identification confusion for anyone working the plant later.

For a NEBS-compliant telecom central office buildout or a data center structured cabling project where fiber pathway documentation and color discipline are part of the acceptance criteria, the FBC2X2LYL is the correct part — not a generic substitute.
