Panduit FRDDS6X4LYL FiberRunner Dual Downspout Fitting 6x4
Overview

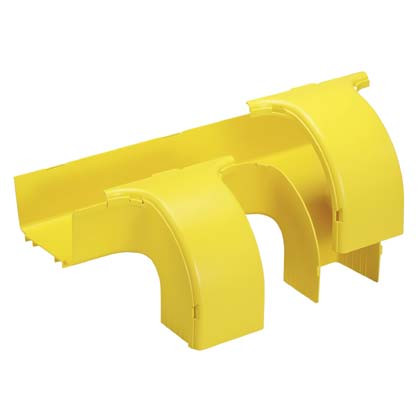

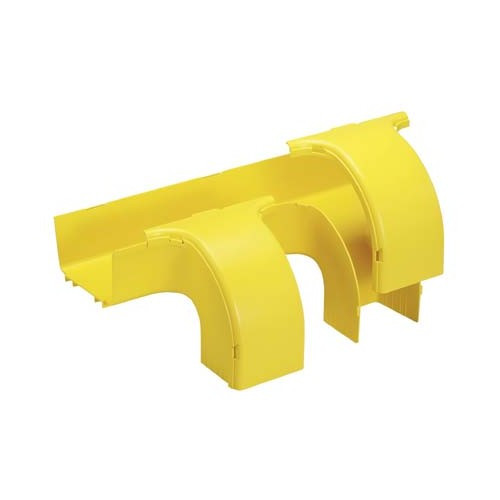

The Panduit FRDDS6X4LYL is a FiberRunner™ dual downspout fitting designed to transition a single 6x4 horizontal fiber runway segment into two independent 90° vertical downspout runs — each sized at 4x4. This fitting installs directly into a 6x4 FiberRunner channel or splice, making it the structural answer when a horizontal trunk route needs to split and drop to equipment at two different rack positions or cable management points simultaneously. Constructed from polycarbonate/ABS in the FiberRunner™ signature yellow, the FRDDS6X4LYL is sized at 23.5 inches wide by 8.25 inches tall — a footprint that reflects the dual-path geometry it manages.
This fitting is intended for telecommunications central offices and data centers where structured fiber routing is critical and bend radius violations translate directly into signal degradation or fiber strand damage. The fitting is sold individually (package quantity of 1), so quantity planning aligns with the actual number of dual-drop transition points in the run.
Key Features
- Dual 90° Downspout Transitions in One Fitting: Instead of managing two separate single-downspout fittings at adjacent positions, the FRDDS6X4LYL consolidates both vertical transitions into a single component. This reduces hardware count at the point where horizontal-to-vertical transitions are most crowded — directly above active equipment rows.
- 2-Inch Minimum Bend Radius Control Throughout: The splice and channel interface maintains a 2-inch bend radius through the entire transition from horizontal to vertical. For single-mode fiber, violating bend radius is a permanent performance liability — this fitting enforces the geometry mechanically so the cabling doesn't depend on technician discipline at the drop point.
- 6x4 to Dual 4x4 Geometry: The fitting accepts the full 6x4 FiberRunner channel cross-section and fans it into two 4x4 downspout paths. This is the right configuration when your horizontal trunk capacity exceeds what a single 4x4 drop can handle, or when two physically separate vertical runs need to originate from the same horizontal segment.
- Quick-Snap Covers on Both Downspout Openings: Two snap-close covers are included for the downspout openings. This matters in active data center environments where unused openings accumulate dust and debris — keeping the fiber pathway clean without requiring tools to access or reseal.
- Polycarbonate/ABS Construction: The material combination provides the dimensional stability needed in data center environments with variable thermal loads and the impact resistance expected in high-density cabling areas. The ABS content aids machinability for any field trimming; the polycarbonate content handles higher-temperature zones.
- UL Listed to Standard 2024A: Listed under UL 2024A for Optical Fiber Raceways, which is the governing standard for fiber routing assemblies in commercial construction. This UL listing supports AHJ approval in jurisdictions that enforce the NEC for cable management products — relevant for any new build or renovation requiring permit sign-off.
- RoHS Compliant and NEBS Level 3 Tested: RoHS compliance covers deployments in the EU and any organization with environmental procurement requirements. NEBS Level 3 (Telcordia GR-63-CORE) testing validates performance under the seismic, thermal, and environmental stress conditions defined for carrier-grade network equipment — required for telecom central office installations and relevant for any mission-critical facility applying carrier standards.
Integration & Compatibility
The FRDDS6X4LYL is engineered specifically for the FiberRunner™ 6x4 system. It installs into a 6x4 channel or a 6x4 splice — not a direct-mount standalone fitting. Before ordering, confirm your horizontal run is built on 6x4 FiberRunner infrastructure; fitting a 6x4 downspout to a 4x4 or 2x4 trunk requires a different part number. The two resulting downspout paths output at 4x4 cross-section, so downstream vertical cable management must be sized for 4x4 FiberRunner or compatible products.
The yellow colorway identifies this as a FiberRunner™ component in mixed-system environments where color coding differentiates fiber pathways from copper cable management. If your facility uses a different color scheme for zone identification, confirm color availability in the FiberRunner product family before specifying.
This fitting works in conjunction with the full Panduit FiberRunner catalog, including straight sections, horizontal bends, T-fittings, and cover systems. For complete fiber cable management infrastructure planning, pair this fitting with appropriately sized vertical sections and mounting hardware rated for your rack or wall-mount configuration. Consult a fiber optic installation guide when specifying bend radius requirements across long runs with multiple transition points.
Frequently Asked Questions
Q: What channel size does the FRDDS6X4LYL connect to?
A: The FRDDS6X4LYL installs into a FiberRunner™ 6x4 channel or 6x4 splice. The two resulting downspout exits are each 4x4 in cross-section. It is not compatible with 2x4 or 4x4 trunk sizes on the inlet side.
Q: What is the minimum bend radius maintained by this fitting?
A: The fitting maintains a 2-inch minimum bend radius throughout the full horizontal-to-vertical transition. This is enforced by the fitting geometry itself, not dependent on cable dressing technique.
Q: Is the FRDDS6X4LYL UL listed?
A: Yes. It is UL listed to Standard 2024A for Optical Fiber Raceways (fiber routing cable assembly standard). It also meets RoHS directive requirements and has been tested to applicable NEBS Level 3 requirements per Telcordia GR-63-CORE.
Q: How many downspout covers are included?
A: Two quick-snap covers are included — one for each of the dual downspout openings. These snap closed without tools to keep the fiber pathway enclosed when not fully populated.
Q: What is the overall footprint of the FRDDS6X4LYL?
A: The fitting measures 23.5 inches wide (596.9 mm) by 8.25 inches tall (209.6 mm), with an overall length of 13.12 inches. Plan overhead clearance accordingly when installing above active equipment.
Q: Is this fitting appropriate for carrier-grade central office environments?
A: Yes. The FRDDS6X4LYL has been tested to applicable NEBS Level 3 requirements (Telcordia GR-63-CORE), which covers the seismic and environmental stress thresholds defined for telecommunications central office infrastructure.
The detail I want integrators to pay attention to on the FRDDS6X4LYL is the enforced 2-inch bend radius through the full transition arc — not just at the entry point. On long horizontal FiberRunner 6x4 runs serving two adjacent vertical drops, it's tempting to use two single downspout fittings installed close together, but that approach introduces alignment variables at both fittings and doubles the hardware touchpoints. This fitting eliminates both problems by handling both transitions in one rigid polycarbonate/ABS assembly.
Technical Highlights:
- Dual 4x4 downspout outputs from a single 6x4 inlet: Handles trunk-to-vertical fan-out in one component — no field-fabricated transitions, no custom bracket work at the drop point.
- NEBS Level 3 tested (Telcordia GR-63-CORE): This is not a marketing label — it means the fitting has been subjected to seismic zone 4 shock and vibration testing. If you're specifying for a carrier central office or any facility that adopts NEBS as an internal standard, this is the tier you need and most generic cable management does not carry it.
- UL 2024A listing: Required by many AHJs for fiber raceways in commercial construction. If your project requires a permit inspection, this listing prevents a last-minute substitution order.
Deployment Considerations:
- At 23.5 inches wide and 13.12 inches long, this fitting occupies meaningful overhead real estate. Measure your ladder rack or channel support spacing before finalizing placement — you need unobstructed mounting points on both sides of the fitting's full width.
- The fitting is designed for 6x4 FiberRunner channel or splice only. If your horizontal trunk is 4x4, this part does not apply — you need the 4x4 dual downspout variant. Confirm the trunk cross-section before ordering; this is the most common specification error on multi-tier fiber infrastructure projects.
For telecommunications central office builds and enterprise data center spine-to-row drops where a single horizontal 6x4 trunk needs to serve two vertical cable runs simultaneously, the FRDDS6X4LYL is the correct structural component — particularly on any project where NEBS Level 3 or UL 2024A compliance is a contract requirement.
