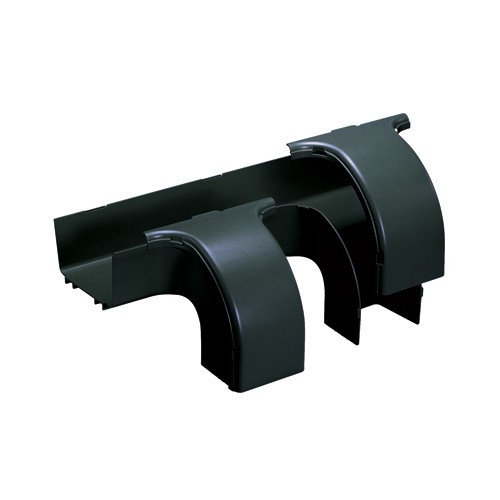

Panduit FRDDS6X4LBL FiberRunner Dual Downspout
The Panduit FRDDS6X4LBL solves a critical fiber-routing challenge in datacenters and telco central offices: transitioning horizontal overhead pathways to vertical drops without violating minimum bend radius. This dual downspout fitting attaches to 6×4-inch FiberRunner channel or fittings and splits into two independent 4×4-inch vertical downspouts at 90°, maintaining a controlled 2-inch bend radius throughout both transitions. Each downspout includes a snap-on throat cover that secures cables during and after installation, preventing slippage while preserving accessibility for adds and moves.
Key Features
- Dual 90° downward transitions from 6×4-inch horizontal pathway to two 4×4-inch vertical runs
- 2-inch minimum bend radius control throughout both transition paths
- Two snap-on throat covers included for cable retention and pathway protection
- Polycarbonate/ABS construction for impact resistance and dimensional stability
- UL Listed to 2024A Optical Fiber Cable Routing Assemblies
- Telcordia GR-63-CORE Level 3 compliant for network equipment building systems
- RoHS compliant
Maintaining bend radius is non-negotiable in fiber installations — violations cause signal loss, increase attenuation, and can permanently damage cable jackets or internal fiber strands. The FRDDS6X4LBL enforces the 2-inch radius mechanically, eliminating installer error during both initial pulls and subsequent cable additions. The dual-downspout design is particularly valuable at row ends or above cabinet clusters where you need to drop to two separate racks or zones without running duplicate overhead pathways. The polycarbonate/ABS blend resists impact during install and provides the rigidity needed to support fully loaded pathways without sagging or deformation over time. The snap-on throat covers aren't cosmetic — they create a positive stop that prevents cables from migrating back up into the horizontal run under their own weight, a common failure mode in unsecured transitions.
In data center deployments, this fitting typically mounts at the transition from overhead ladder rack or ceiling-mounted FiberRunner to vertical cabinet pathways. In telco central offices, it bridges between elevated cable trays and equipment frames. The 23.5-inch width accommodates the 6×4 trunk pathway, while the 13.12-inch projection and 8.25-inch height keep the fitting compact enough for installations with limited vertical clearance above racks. Because it's part of the FiberRunner system, it integrates directly with Panduit's full line of 6×4 and 4×4 channels, fittings, and mounting hardware — no field modification or adapter plates required. The fitting ships as a single unit with both throat covers included.
UL 2024A listing and Telcordia GR-63-CORE Level 3 compliance aren't just checkboxes — they confirm this fitting meets fire-resistance, load-bearing, and seismic performance standards required in mission-critical facilities. The UL 2024A standard specifically addresses optical fiber cable routing assemblies, validating that the fitting won't contribute to flame spread or generate excessive smoke in a fire event. Telcordia GR-63-CORE Level 3 testing subjects the assembly to earthquake simulation, office vibration, and temperature cycling that replicate decades of service in carrier-grade environments. These certifications let you install with confidence in facilities with strict compliance requirements and give you defensible documentation during AHJ inspections or insurance audits.
