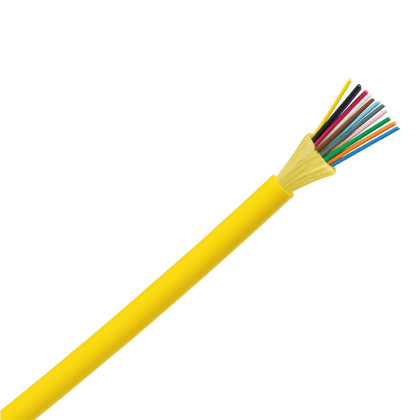

Panduit FSDL912 12-Fiber OS2 Indoor Distribution Cable

The Panduit FSDL912 delivers 12 strands of OS2 single-mode fiber in a compact, LSZH-rated indoor distribution cable engineered for datacenter backbone runs, campus building interconnects, and structured cabling installations where flame-spread restrictions prohibit traditional PVC jackets. Each fiber carries 900µm tight buffering—thick enough for direct termination without fanout kits, yet small enough to maintain bend-radius compliance in high-density pathways. OS2 single-mode specification supports 10G/40G/100G transmission over distances exceeding 10 kilometers, making this cable the backbone choice for inter-building links, storage-area networks, and future-proofed horizontal runs in enterprises planning multi-decade infrastructure lifecycles.

Key Features

• 12-strand OS2 single-mode fiber (9µm core) rated for 10G+ transmission beyond 10km
• 900µm tight-buffered construction enables direct connector termination without breakout assemblies
• LSZH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 and IEC 60754 flame & toxicity standards
• Yellow PVC outer jacket provides instant visual identification in mixed-fiber environments
• Indoor-rated design optimized for riser, general-purpose, and LSZH-mandated installations
• Opti-Core® sub-brand heritage: Panduit's laser-optimized fiber platform for consistent insertion loss

Single-mode OS2 fiber solves the distance problem that kills OM3/OM4 multimode deployments. Where 10GBASE-SR multimode tops out at 300–400 meters, OS2 carries 10GBASE-LR beyond 10 kilometers on the same glass—critical for campus networks spanning multiple buildings, datacenter pods separated by long cable trays, or metropolitan-area links that can't justify leased dark fiber. The 9-micron core diameter and 1310nm/1550nm wavelength windows deliver <0.4 dB/km attenuation, meaning a 2km building-to-building run incurs less than 1 dB loss before connector penalties. For integrators designing 40G/100G futures on today's infrastructure, OS2 is the only fiber type that supports both current 10G optics and future QSFP28/QSFP-DD modules without a forklift upgrade.

The 900µm tight buffer is the install-speed differentiator. Standard 250µm bare fiber requires fanout kits, furcation tubing, or breakout boxes to protect individual strands during termination—adding 20–40 minutes per cable end and consumable cost per connection. Panduit's 900µm buffer is thick enough to strip, cleave, and terminate directly into LC, SC, or ST connectors using standard single-mode termination procedures, cutting termination labor by half and eliminating the fanout-kit failure point where loose buffer tubes snag or kink during pulls. The tight buffer also stiffens each strand, preventing the fiber-spaghetti tangles that plague 250µm loose-tube cables in crowded patch panels. In vertical riser shafts and horizontal j-hooks where cables stack 20–30 deep, the 900µm buffering maintains individual strand integrity even when the cable bundle gets compressed during subsequent pulls.

LSZH compliance is the code requirement that catches U.S. integrators off-guard in three scenarios: international deployments (EU/UK mandate LSZH in occupied spaces per CPR Euroclass), healthcare facilities (many U.S. hospitals specify LSZH even when not code-required to limit surgical-suite contamination during fire), and datacenters pursuing LEED or ISO 14001 certifications where halogen-free materials earn sustainability points. Traditional PVC and plenum-rated FEP jackets release hydrochloric acid gas when burned—corrosive to electronics and toxic to occupants. LSZH formulations produce <0.5% hydrogen chloride and generate white smoke (not the black petroleum smoke of PVC), giving occupants visibility during egress and reducing post-fire equipment loss in server rooms. The FSDL912's LSZH jacket meets IEC 60332-1 (single-cable flame test) and IEC 60754-1 (halogen acid gas measurement), satisfying the most common international and specialty-facility requirements without requiring plenum (CMP) rating for U.S. air-handling spaces.

The yellow jacket is Panduit's single-mode fiber standard, aligning with TIA-598-C color-code recommendations (yellow = single-mode OS2, aqua = multimode OM3/OM4, orange = OM1/OM2). In mixed-fiber plants where 10G-SR multimode and 10G-LR single-mode coexist, the yellow outer jacket prevents the $800 mistake where a technician terminates aqua OM4 patch cord onto yellow OS2 infrastructure—a mode-mismatch that either won't link or runs at 1G fallback, burning hours of troubleshooting. The color-coding also future-proofs documentation: even if asset-management labels fade or fall off, the yellow jacket tells the next-generation integration team this is long-haul single-mode infrastructure, not short-reach multimode.

Panduit's Opti-Core sub-brand indicates factory acceptance testing per IEC 61300-3-35 (IL/RL specifications) and TIA-568.3-D geometry standards. Every production lot undergoes insertion-loss verification at 1310nm and 1550nm wavelengths, ensuring <0.35 dB average connector loss when field-terminated with Panduit's OptiCam or standard epoxy/polish methods. For integrators building fiber networks under design-build contracts with guaranteed end-to-end loss budgets (e.g., <2.5 dB building-to-building including six connections), the Opti-Core lot testing removes the glass-quality variable—you're designing around connector/splice loss only, not compensating for out-of-spec fiber attenuation that might surface during final acceptance testing.
