Panduit FODLZ12 12-Fiber OM4 LSZH Indoor Cable

Panduit FODLZ12 12-Fiber OM4 Indoor LSZH Cable

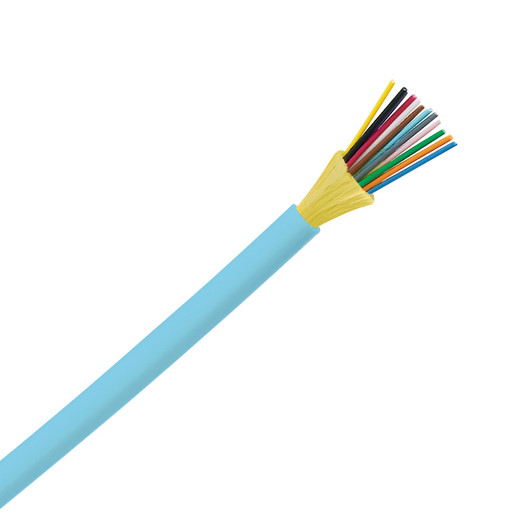

The Panduit FODLZ12 delivers 12 fibers of OM4 multimode performance in a compact, LSZH-rated indoor distribution cable. Each fiber features 900µm tight buffering for simplified termination and connector assembly, while the aqua jacket provides instant visual identification of OM4 laser-optimized fiber. Designed for horizontal and backbone runs in commercial buildings, data centers, and educational campuses, this cable supports 10/40/100 Gigabit Ethernet applications at distances up to 550 meters (10G) or 150 meters (40G/100G) over 850nm VCSEL optics. The Low Smoke Zero Halogen construction meets international fire safety standards for enclosed spaces where PVC combustion products pose evacuation risks, making it the code-compliant choice for installations in Europe, Asia-Pacific, and increasingly in North American healthcare and transportation facilities. With 12 fibers in a small-diameter package, you get six duplex channels for backbone trunks, redundant links, or future expansion without the bulk of higher-count cables.

Key Features

• OM4 laser-optimized 50/125µm multimode fiber supports 10GBASE-SR to 550m, 40GBASE-SR4 and 100GBASE-SR10 to 150m over 850nm optics
• 900µm tight buffered fiber construction simplifies stripping, cleaving, and connector termination compared to 250µm designs
• LSZH (Low Smoke Zero Halogen) jacket meets IEC 60332-1, IEC 60754-1/2, and IEC 61034 for low flame propagation, minimal corrosive gas, and reduced smoke density
• Aqua jacket color follows TIA-598-D industry standard for OM4 fiber identification
• 12-fiber count provides six duplex channels for structured backbone trunks, redundant uplinks, or staged deployment
• Indoor-rated construction optimized for horizontal cable trays, vertical risers, and intra-building distribution
• Small cable diameter and flexible design enable tight-radius pulls through conduit and cable management pathways
• Panduit Opti-Core® quality—factory-tested fiber meets or exceeds TIA-492AAAD (OM4) attenuation and bandwidth specifications

OM4 multimode fiber is the industry workhorse for short-reach datacenter and campus networks. The 50µm core diameter and laser-optimized refractive index profile deliver 4700 MHz·km effective modal bandwidth at 850nm, enabling 10 Gigabit Ethernet links to 550 meters—double the reach of OM3—and 40/100 Gigabit links to 150 meters. This headroom matters when you're designing tiered network architectures: a 12-fiber backbone from your telecom room to an intermediate distribution frame (IDF) on the fifth floor stays within OM4's distance budget even if structured pathways add 50–100 meters of slack and service loops. The FODLZ12's laser-optimized fiber also future-proofs your infrastructure for 25G/50G/100G-per-lane optics emerging in 200G/400G applications, where OM3 cable would force costly electronics upgrades or additional fiber strands.

The 900µm tight buffer is a field termination advantage. Each fiber's primary 250µm acrylate coating is over-extruded with a secondary 900µm thermoplastic buffer, creating a robust, easy-to-handle element that strips cleanly with standard buffer strippers and accepts direct termination with Panduit's Opti-Crimp, Opti-Core, and Pre-Polished connectors. Contrast this with 250µm distribution cable or loose-tube designs that require furcation kits, breakout legs, or fan-out assemblies—extra components, extra labor, extra failure points. When you're terminating a 12-fiber backbone in a cramped IDF or a wall-mount enclosure, the FODLZ12's 900µm buffered fibers go straight into LC duplex connectors or MTP® trunk assemblies without intermediate hardware. You save 15–20 minutes per cable end and eliminate the slack management headaches of breakout tails.

LSZH jacketing is a regulatory and safety requirement in many environments. Low Smoke Zero Halogen compounds produce minimal visible smoke (IEC 61034 light transmittance >60%) and negligible halogen acid gases (IEC 60754 HCl <0.5%) during combustion, reducing toxic hazard and corrosive damage to electronics in fire scenarios. European Union construction codes mandate LSZH for public buildings; transportation authorities require it in rail tunnels and airports; healthcare facilities specify it to protect patient evacuation routes. Even in North America, where plenum (CMP) and riser (CMR) ratings dominate, LSZH is gaining traction in hospitals, universities, and high-rise offices as building owners adopt stricter life-safety standards. The FODLZ12 meets IEC 60332-1 vertical flame propagation limits, ensuring that a localized ignition source won't propagate fire along the cable run. If your AHJ (authority having jurisdiction) references IEC standards or if you're working on a project with international design specifications, LSZH is the code path—and the FODLZ12 delivers it without sacrificing Panduit's fiber quality or termination ease.

A 12-fiber count fits the sweet spot for small-to-medium backbone trunks. Six duplex channels cover a typical switch stack uplink (2× 10G redundant), a storage network path (2× 10G iSCSI or Fibre Channel), and two spare pairs for future services or failover links. In structured cabling terms, this is a single 12-fiber backbone from your main distribution area (MDA) to a horizontal distribution area (HDA), supporting 10–20 edge switches or access points downstream without the cost and bulk of 24- or 48-fiber cables. The compact diameter also matters in congested pathways: the FODLZ12 occupies roughly half the tray width of a 24-fiber equivalent, leaving room for power cables, copper categories, and future additions without exceeding the 50% fill ratio that triggers heat de-rating or code violations. When you're retrofitting fiber into an existing building with limited conduit capacity, every millimeter counts.

Panduit Opti-Core® fiber optic systems deliver end-to-end quality from cable to patch cords to cassettes and enclosures. The FODLZ12 cable integrates seamlessly with Panduit's FZ6 and FMT cassette modules (LC to MTP® breakouts), FAP fiber adapter panels, and FRME rack-mount enclosures, ensuring consistent performance and simplified inventory. Each reel ships with factory test results documenting attenuation and length per TIA-568 and IEC standards, giving you the traceability required for LEED, BICSI, and warranty documentation. For commercial integrators and datacenter installers managing multi-building campuses or phased build-outs, the FODLZ12 is the go-to 12-fiber backbone—OM4 bandwidth, 900µm termination ease, LSZH compliance, and Panduit reliability in one SKU.
