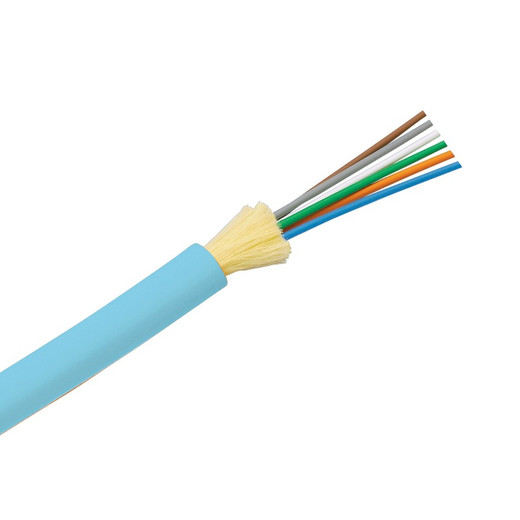

Panduit FODLZ06 Opti-Core 6-Fiber OM4 Indoor Distribution Cable
The Panduit FODLZ06 is a 6-fiber OM4 multimode distribution cable engineered for high-speed indoor network infrastructure. Built on Panduit's Opti-Core platform, this cable combines laser-optimized 50/125µm fiber with tight 900µm buffering and a Low Smoke Zero Halogen (LSZH) jacket rated for international fire safety standards. The aqua jacket provides immediate visual identification of OM4 performance class, supporting 10/40/100 Gigabit Ethernet deployments across horizontal distribution, equipment room breakouts, and riser pathways where flame-retardant, low-toxicity materials are required by code or preferred for occupant safety.
Key Features
- OM4 Laser-Optimized Multimode Fiber: 50/125µm core/cladding supports 10GbE to 550m, 40GbE to 150m, and 100GbE to 150m over duplex or parallel optics, meeting TIA-492AAAD and IEC 60793-2-10 A1a.3 performance standards for bandwidth-intensive data center and enterprise backbone applications
- 900µm Tight-Buffered Construction: Each fiber individually buffered to 900µm provides mechanical protection and direct termination capability without fanout kits, simplifying breakout assembly in equipment rooms and telecom closets while maintaining flexible bend radius for tight routing
- LSZH Jacket Compliance: Low Smoke Zero Halogen thermoplastic compound meets IEC 60332-1 flame propagation and IEC 61034-2 smoke density requirements, reducing toxic gas and particulate emissions during fire events—critical for occupied spaces, international installations, and facilities where plenum pathways are unavailable
- Aqua Jacket Visual Coding: TIA-598-D compliant aqua outer jacket enables instant fiber type identification during installation and maintenance, preventing cross-connection errors between OM3/OM4 infrastructure and ensuring proper cleaning/testing protocols
- Panduit Opti-Core Quality Assurance: Factory-tested to ≤0.20dB/km attenuation at 850nm and ≤2.0 dB/km at 1300nm, with ≤-20dB return loss across the band, backed by Panduit's ISO 9001-certified manufacturing process and comprehensive technical support for large-scale deployments
The FODLZ06 leverages OM4 fiber chemistry to deliver 4,700 MHz·km effective modal bandwidth at 850nm—more than double OM3's 2,000 MHz·km—enabling 40/100 Gigabit Ethernet over significantly longer spans than OM3 while maintaining headroom for future 200/400G migration paths using parallel optics (40GBASE-SR4, 100GBASE-SR4, 100GBASE-SR10). Tight-buffered construction surrounds each 250µm coated fiber with a protective 900µm thermoplastic layer, absorbing microbending stress from cable pulls and stationary bends while providing a robust platform for direct connectorization with standard 900µm mechanical splice or fusion splice assemblies. This eliminates the need for breakout kits required by loose-tube designs, reducing equipment room congestion and splice enclosure counts in distributed antenna systems (DAS), IP camera backhaul aggregation points, and access layer switch uplinks. The 900µm buffer also accommodates color-coded identification per fiber (typically 1-6 as blue, orange, green, brown, slate, white per TIA-598-D), simplifying pair identification during testing and troubleshooting without referencing buffer tube position or requiring specialized extraction tools.
The FODLZ06 fits horizontal distribution runs up to 90 meters in structured cabling systems (TIA-568.3-D), riser pathways between equipment rooms and intermediate distribution frames, and short equipment room jumpers where six discrete fibers terminate to different patch panels or splice enclosures. For IP surveillance, this cable supports three duplex camera-to-switch links at 1/10GbE, ideal for aggregation points serving multiple building floors or perimeter zones where a single 6-fiber riser feeds breakout fanouts at each level. In data center contexts, the cable provides cost-effective 40GbE connectivity via MPO-to-LC breakout modules (1 cable = 2× 40GbE duplex links) or six independent 10/25GbE server uplinks using LC duplex connectors and standard OM4-rated transceivers (10GBASE-SR, 25GBASE-SR). The indoor rating and flexible tight-buffered design also make FODLZ06 suitable for equipment rack interconnects, underfloor or overhead tray routing, and conduit pulls in controlled environments, though it is not rated for direct-burial, outdoor aerial, or plenum air-handling spaces without additional raceway protection. Pair this cable with Panduit's LC, SC, or MPO connectivity (OptiCam cassettes, FX panels, or field-installable connectors) for complete Opti-Core end-to-end system integration and centralized testing via Panduit's PanView iQ infrastructure management platform.
LSZH jacket formulation addresses IEC and international building codes that restrict PVC-based cables in occupied areas, public transport, and marine/offshore installations where smoke toxicity and opacity during fire events pose greater life-safety risk than flame propagation alone. While not a substitute for plenum-rated (CMP/OFNP) cable in North American air-handling spaces per NEC Article 770, LSZH provides an alternative compliance path in retrofit projects where plenum pathways are inaccessible and conduit or surface raceway is employed, and it is the preferred—often mandated—solution in European, Middle Eastern, and Asia-Pacific markets operating under EN 50575 CPR (Construction Products Regulation) classifications. Panduit's Opti-Core manufacturing integrates continuous factory testing of insertion loss, return loss, and bandwidth across 100% of production fiber, with statistical process control that holds attenuation to <0.20 dB/km at 850nm (well below the 3.0 dB/km TIA maximum), ensuring margin for future link upgrades and consistent performance across all six fibers in the cable. This quality commitment reduces field testing rework, lowers long-term maintenance costs, and provides the reliability integrators expect when spec'ing Panduit connectivity end-to-end—from copper infrastructure and industrial Ethernet to fiber backbones and zone cabling architectures.
