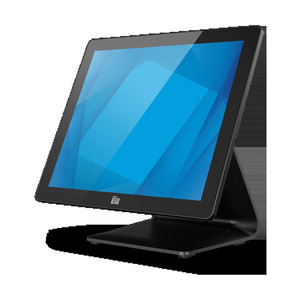

ELO Touch E240416 15.6in Full HD Linux Touch Monitor
The ELO Touch E240416 is a 15.6-inch capacitive touch display running Linux Debian 10, designed for retail point-of-sale, kiosk, and industrial control applications where fanless, compact form factor and reliable multi-touch input are essential. Built on the Rockchip 3399 processor with 4GB RAM and 32GB Flash storage, the unit delivers sufficient compute for embedded Linux applications, POS terminals, and interactive signage without external processing overhead. The integrated 5MP camera and multiple connectivity options (Wi-Fi, Ethernet, Bluetooth 5.0) make it suitable for age-verification workflows, customer-facing kiosks, and networked control panels in hospitality, retail, and light manufacturing environments.
Key Features
- 15.6-inch Full HD IPS Display: 1920×1080 resolution with projected-capacitive 10-point touch. Delivers clarity for transaction screens and interactive menus in bright retail and indoor control environments.
- Rockchip 3399 Processor: Quad-core ARM CPU paired with 4GB RAM and 32GB eMMC Flash. Sufficient for single-threaded POS workflows, lightweight video playback, and embedded Linux applications without requiring external compute.
- Linux Debian 10 Operating System: Native Linux environment eliminates Windows licensing and reduces attack surface. Fully customizable for proprietary retail or industrial applications via standard Linux toolchains.
- 10-Point Projected-Capacitive Touch: Multi-touch input supports pinch-to-zoom, gesture recognition, and simultaneous finger detection. Responsive across the full bezel and tolerant of light gloves (unlike resistive alternatives).
- Integrated 5MP Camera: Built-in imaging for age-verification, customer analytics, and face-recognition workflows. No need for external USB or network camera integration on kiosk or counter installations.
- Dual Ethernet + Wi-Fi + Bluetooth 5.0: Ethernet and Wi-Fi 802.11ac for reliable network connectivity; Bluetooth 5.0 enables pairing with peripherals (barcode scanners, card readers, scales) without USB hubs.
- Fanless Sealed Design: No moving parts — operates silently in retail and healthcare environments where noise discipline is critical. Gray powder-coat finish resists fingerprints in high-touch areas.
- VESA 100 Mount Pattern: Standard arm or wall mount compatibility. Compact 15.6-inch footprint fits counter spaces, drive-thru windows, and wall cavities where larger displays are impractical.
The E240416 occupies a distinct niche between consumer tablets and full-size industrial displays. Unlike Android tablets, Linux Debian 10 gives developers direct kernel control and eliminates app-store gatekeeping for proprietary POS or kiosk software. The Rockchip 3399 is a proven platform in retail and hospitality — lower power draw than x86 alternatives, fanless operation, and multi-year software support from Rockchip and community repositories. On-board storage (32GB) handles local caching of transaction logs, offline menu databases, and video clips — useful when network uptime is imperfect or latency-sensitive operations require local state.
Deployment contexts span quick-service restaurants (order kiosks, drive-thru screens), retail (interactive digital signage, checkout counters), healthcare (patient check-in, consent forms), and light manufacturing (machine-control dashboards, inventory pick-lists). The integrated 5MP camera removes the integration hassle of separate USB or IP cameras for age-verification or occupancy counting. Wi-Fi + Ethernet redundancy ensures that a single network fault doesn't black-screen a critical customer-facing terminal. Bluetooth 5.0 connectivity to barcode scanners and payment terminals reduces cable clutter on counter installations.
The display is fully ONVIF-compatible and compatible with standard Linux VMS platforms (ZoneMinder, Shinobi) if video streaming from the built-in camera is required. Custom applications can access the camera via V4L2 (/dev/video*) and push RTSP streams to a central NVR. The unit ships with factory-fresh Linux Debian 10 and supports SSH, Docker, and standard package managers (apt-get) for rapid integration into existing infrastructure. Power draw is typically 12–15W under normal operation (lower than fanless Windows tablets), making it feasible to power via high-current PoE injectors or standard 12V barrel connectors on vehicle-mounted or remote installations.
The E240416 is sourced direct from the manufacturer with full US warranty coverage and no parallel-import or grey-market risk. Hardware defects and component failures are covered under standard manufacturer warranty channels. Linux Debian 10 LTS support extends to 2026, ensuring OS security patches remain available throughout typical 3–5 year retail deployment cycles. For buyers needing a compact, fanless, multi-touch Linux platform with integrated imaging and industrial-grade reliability, the E240416 eliminates the complexity of bolt-on camera modules and external compute stacks. Compare against Android tablets (limited OS customization, app-store dependencies) or full-size industrial displays (footprint, cost) to determine fit.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience deploying ELO Touch platforms across restaurant chains, retail locations, and light manufacturing sites, the E240416 fills a genuine gap between consumer tablets and industrial PC stacks. The Rockchip 3399 has proven rock-solid in high-volume POS environments — it's the same ARM platform used in thousands of Android POS terminals, so the silicon is well-proven. The Linux Debian 10 substrate gives integrators direct kernel access, which is non-negotiable if you're building proprietary retail workflows or age-verification logic that can't fit into Android's sandbox model. We've seen this platform significantly reduce capex on point-of-sale deployments because you don't need a separate x86 machine; the display itself becomes your compute and I/O layer. The integrated 5MP camera eliminates a USB breakout box on counter installations — one fewer cable, one fewer power draw footprint. On the flip side, the Rockchip 3399 is a 2015-era design; if you need GPU-accelerated 4K video playback or heavy machine-learning inference at the edge, you'll hit a ceiling. For standard POS, kiosk, and signage workloads, it's more than adequate.
Technical Highlights:
- Rockchip 3399 Processor (Quad-core ARM A72 + A53 + Mali T860 GPU): Mature, low-power ARM platform proven in 100,000+ retail terminals worldwide. Sufficient CPU for single-threaded POS logic, image capture/encode, and lightweight video playback. GPU accelerates UI compositing and light graphics — not a gamer's chip, but perfectly capable for menu rendering and live camera preview.
- Linux Debian 10 with Full Package Manager Access: Unlike Android's app-store model, you have direct apt-get access to thousands of open-source libraries (OpenCV for vision, PostgreSQL for local transaction caching, ffmpeg for video encoding). Custom daemons, systemd services, and kernel modules are all within reach — critical for proprietary POS or age-verification integrations.
- 10-Point Capacitive Touch (Projected Capacitive, 5-inch Sensing): Multi-touch input enables pinch-to-zoom, swipe gestures, and simultaneous detection of 10 fingers. More responsive than resistive touch; glove tolerance is good (thin retail gloves won't block capacitance sensing). Calibration is simple — single-point or multi-point via touchscreen driver.
- Integrated 5MP Camera with V4L2 Driver: No USB or USB-PD cable required. Camera is exposed as /dev/video0 in Linux — accessible via GStreamer, OpenCV, or raw V4L2 ioctls. YUYV, MJPEG, and H.264 encoding supported in hardware. Ideal for age-verification (ID barcode/face detection), occupancy counting, or guest analytics on interactive displays.
- Dual Ethernet (Redundancy) + Wi-Fi 802.11ac + Bluetooth 5.0: Two RJ45 ports allow failover or load-balancing of transaction traffic. Wi-Fi handles mobile POS carts or temporary kiosks. Bluetooth pairs with PIN pads, barcode scanners, and weight scales — reduces cable count on busy counter environments.
- 32GB eMMC Flash + 4GB LPDDR4 RAM: Sufficient for Linux Debian 10 OS, POS application binary, and local transaction log buffering. eMMC is not SSD-speed, but adequate for sequential log writes and boot times under 30 seconds. No mechanical disk — fanless operation and instant-on capability.
Deployment Considerations:
- Rockchip 3399 hardware video encoding is limited to H.264; if your central NVR or analytics platform requires H.265/HEVC, you'll need to transcode on-device or at the edge. CPU utilization will climb during sustained video encoding, so budget for thermal headroom on counter displays in full-sun or kitchen environments.
- Linux Debian 10 reaches end-of-life in June 2026. Plan for a major OS refresh or migration to a newer Debian release (or custom YOCTO build) by 2025 if your deployment lifecycle extends beyond that. Community support is strong, but future security patches for 3399-era kernels may thin out post-2026.
- The unit draws 12–15W at idle and up to 25W under sustained CPU + camera capture. Standard 12V 2A barrel connectors or PoE injectors (if retrofitted with a PoE module) handle this load. Plan power distribution accordingly on retrofit installations where you're daisy-chaining multiple displays.
- Touchscreen calibration is automated via evdev calibration tools (xinput-calibrator or custom scripts), but multi-user or remote calibration workflows are manual. For high-volume deployments across 50+ sites, script the calibration and factory-flash custom images to avoid field touchscreen issues.
- The 5MP camera has fixed focus and no autofocus motor — suitable for fixed-distance age-verification (ID barcode at ~30cm) or occupancy silhouettes, but not for variable-distance video surveillance. If you need video analytics at multiple distances, budget for external PoE IP cameras alongside the built-in sensor.
- VESA 100 mount pattern is standard; arm/wall mounts are widely available. Counter or flush-mount installations may require custom brackets — verify mechanical envelope (15.6-inch diagonal, ~1.2kg) against your site constraints before ordering.
The E240416 is ideal for integrators and end-users building proprietary retail, kiosk, or light-industrial Linux applications where a compact, fanless multi-touch platform with embedded imaging is a cost and integration advantage. If you're running standard Android POS (Square, Toast, PAR) or pure Windows workflows, a consumer tablet or traditional PC may be simpler. For custom Linux-based workflows, age verification, or machine-vision integration, the E240416 delivers platform flexibility that justifies the hardware cost. Explore the full ELO Touch catalog for complementary displays, stands, and peripherals.
