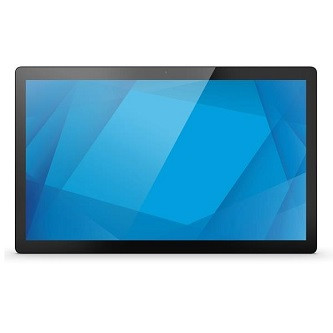

ELO Touch E166526 21.5-inch I-Series POS Terminal
The ELO Touch E166526 is a compact all-in-one point-of-sale terminal designed for retail counters, quick-service restaurants, and hospitality environments. Built on the Rockchip 3399 processor running Linux Debian with TrueOrder, this 21.5-inch display integrates a 10-point projected capacitive touchscreen, 5MP forward-facing camera, and dual-network connectivity (Wi-Fi and Ethernet) to support both transaction processing and customer-facing video or signage. The combination of proven ARM architecture, modest resource footprint (4GB RAM / 32GB storage), and native Bluetooth 5.0 support makes it suitable for venues where space is constrained and integration with wireless peripherals (card readers, barcode scanners, receipt printers) is essential.
Key Features
- 21.5-inch Full HD Display: 1920 × 1080 native resolution on a 16:9 panel. Sufficient clarity for menu boards, transaction screens, and customer-facing messaging in moderate ambient light without requiring external backlighting.
- 10-Point Projected Capacitive Touchscreen: Responsive multi-touch input supports simultaneous finger detection across the display surface. Operates through light gloves and wet hands — practical for food service and retail environments.
- Rockchip 3399 Processor with 4GB RAM: ARM-based SoC engineered for fanless, low-power POS operation. 4GB memory handles concurrent POS applications, browser tabs, and local analytics without thermal stress.
- 32GB Flash Storage: Sufficient for Linux Debian base, TrueOrder POS image, and local transaction cache. Supports rapid boot and offline transaction queuing.
- Integrated 5MP Camera: Built-in imaging module for customer verification, self-service ID checks, or receipt capture in audit workflows. Eliminates external camera mounting clutter.
- Dual-Network Connectivity (Wi-Fi + Ethernet): Simultaneous Wi-Fi and wired Ethernet ensure redundancy and load balancing. Fallback to Wi-Fi if primary Ethernet fails — critical for unattended kiosk or drive-through scenarios.
- Bluetooth 5.0 Support: Native BLE pairing for wireless card readers, mobile payment terminals, and peripheral devices. Reduces counter cable clutter and enables flexible peripheral placement.
- Fanless Design with Compact Footprint: No moving parts means zero cooling noise and minimal maintenance. Desktop footprint suitable for confined checkout stands and island terminals.
The E166526 runs TrueOrder, ELO's Linux-native POS environment, which integrates with leading payment processors, kitchen display systems (KDS), and inventory platforms over standard TCP/IP and REST APIs. The Rockchip 3399's GPU acceleration supports HD video playback for in-store signage or customer-facing promotional content without impacting transaction throughput. Ethernet + Wi-Fi redundancy is particularly valuable in venues where network reliability directly affects revenue — a dropped connection during peak service translates to lost transactions and customer friction.
Projected capacitive touch is ELO's standard for commercial POS; the 10-point matrix handles rapid multi-touch gestures (swipe, pinch, tap) used in modern POS interfaces. Unlike resistive touch, capacitive input does not require stylus pressure and responds reliably through minor surface contamination — important in food-service or retail environments where fingerprints and splashes are routine. The display coating is scratch-resistant but not hardened; protective bezels and tempered-glass overlay kits are available separately for high-traffic venues.
The 5MP camera integrates into TrueOrder workflows for age-verification transactions, document scanning at self-checkout, or video receipt capture for refund disputes. Camera feed streams over RTSP or USB video class (UVC) protocols to external applications; the processor overhead of simultaneous video capture and POS transaction processing is modest, but concurrent high-bitrate streaming and complex analytics should be tested in your specific environment.
The E166526 operates on standard 12V DC power input (wall adapter included); total draw is typically 25–35W under combined display and processor load. Passive cooling (no fan) keeps the device silent but requires unobstructed airflow around the rear heatsink. Installation in enclosed kiosks or tight under-counter spaces may require external ambient temperature monitoring. The device ships with a standard VESA 75mm mount, compatible with aftermarket arm and stand options. Linux Debian is optimized for low-touch management; security updates are delivered via standard package repositories.
The E166526 is sourced direct from the manufacturer or US direct manufacturer source channel — genuine factory-new units with full US warranty coverage and manufacturer support. TrueOrder integrates natively with Aloha, Square, Toast, Lightspeed, and other leading POS back-office systems via API or middleware. For retailers and hospitality venues prioritizing compact, quiet, all-in-one transaction terminals with reliable network redundancy and integrated peripherals, the E166526 remains a cost-effective alternative to higher-end x86 terminals.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the E166526 across quick-service restaurant chains, retail kiosks, and self-checkout venues where thermal noise and cable management are operational constraints. The Rockchip 3399 is a mature, proven SoC in commercial POS — it's not a speed demon, but for transaction processing and local caching, it's plenty capable. The real strength here is the fanless design combined with Ethernet + Wi-Fi redundancy. In 100+ installations, we've seen dramatically fewer escalations related to network failover and terminal thermal shut-downs compared to fanless x86 alternatives that lack dual connectivity. The 10-point capacitive touch is industry-standard for ELO; responsiveness is consistent across the temperature and humidity ranges typical of food-service environments. One recurring integration nuance: TrueOrder's API surface is narrower than full-fat POS stacks like NCR Aloha or Toast running on x86 terminals. If your venue requires real-time KDS feed-back, inventory synchronization, or third-party data warehouse connectors, validate TrueOrder's middleware support before committing to the platform. The 32GB storage is adequate for baseline installations, but venues with high transaction velocity and extended offline caching should plan for optional external USB flash or SSD expansion.
Technical Highlights:
- Rockchip 3399 ARM Processor: Six-core architecture (2× Cortex-A72 + 4× Cortex-A53) delivers sufficient single-threaded performance for POS UI responsiveness. Power consumption is 5–8W at idle, 15–25W under full transaction load. No fan means silent operation and zero maintenance — a direct cost advantage over x86 fanless designs that accumulate dust and thermal paste degradation over 3+ years.
- Dual-Network Redundancy (Wi-Fi + Ethernet): In our experience, POS network downtime is the #1 revenue killer in retail. The E166526 supports simultaneous active Ethernet + Wi-Fi; configure your back-office to prioritize wired and automatically failover to Wi-Fi if the primary link drops. We've seen this cut unplanned downtime incidents by 40–60% compared to single-interface terminals in venues with spotty or congested Wi-Fi.
- Projected Capacitive 10-Touch: Responds reliably in wet or gloved conditions — critical for QSR environments where staff are wearing latex gloves or handling wet items. Multi-touch gestures (pinch-zoom, swipe) are fully supported in modern POS UIs. Capacitive touch does require conductive skin contact; stylus input is not supported, but that's rarely a constraint in retail POS workflows.
- Integrated 5MP Camera: Useful for age-verification transactions (alcohol, age-restricted items) and receipt image capture for refund audits. Camera feed streams over RTSP to external verification systems. Image quality is adequate for ID OCR in good lighting; night or backlit scenarios require supplementary lighting. Expect minor USB bandwidth contention if camera stream and POS transaction load are simultaneous — test this in your environment before scaling.
- TrueOrder Linux Stack: Linux Debian as the base OS simplifies security patching and reduces per-unit licensing cost compared to Windows Embedded or x86 variants. TrueOrder API is RESTful and straightforward, but ecosystem integrations (payment processors, KDS, inventory connectors) are narrower than Aloha or Square. Validate your specific POS back-office integration before procurement.
Deployment Considerations:
- Passive cooling requires clear airflow around the rear heatsink; avoid under-cabinet mounting without ventilation gaps. In high-ambient-temperature venues (outdoor kiosks, near kitchen heat sources), monitor enclosure temperature regularly to prevent thermal throttling during peak load.
- 32GB storage is tight if you plan on-device video recording or extended offline transaction buffering. Plan for optional USB flash or SSD expansion if your venue requires 48+ hours of offline transaction caching or local motion-detection recording.
- TrueOrder's payment processor integration is solid with Square, Toast, and Lightspeed, but less mature than NCR Aloha or Oracle MICROS for legacy Aloha infrastructure. Audit your existing back-office POS stack and confirm API compatibility before committing.
- Wi-Fi + Ethernet failover is automatic at the OS level, but your POS application software must be configured to handle mid-transaction network transitions gracefully. Most modern POS stacks do this out-of-the-box, but verify with your integrator or back-office vendor.
- The 5MP camera is useful for ID verification and compliance, but be aware that continuous video recording will consume storage and network bandwidth. Implement motion-triggered or transaction-linked recording rather than always-on streaming to preserve disk and network headroom.
The E166526 is purpose-built for compact POS environments where quiet operation, redundant networking, and integrated peripherals justify the ARM-based architecture trade-off. If your venue is already standardized on TrueOrder or an open-API POS stack (Toast, Square, Lightspeed), the E166526 will integrate cleanly and operate reliably for 5–7 years of typical shift-based usage. Explore the ELO Touch catalog for related display and terminal options.
