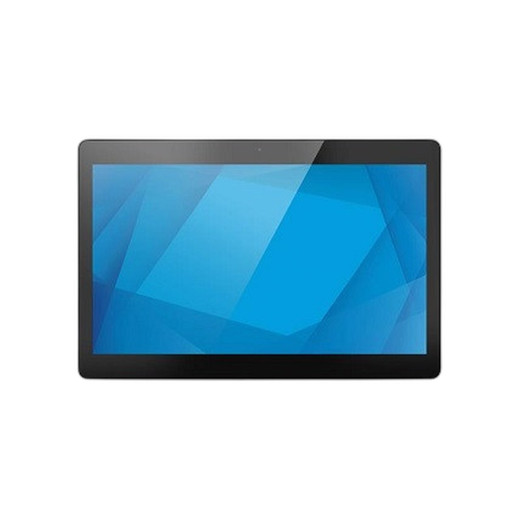

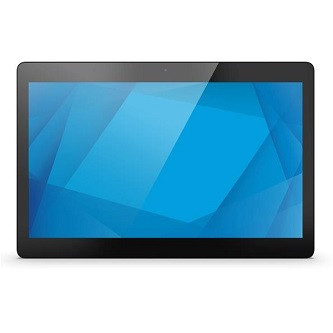

ELO Touch E131747 15.6in I-Series Linux Touch Display
The ELO Touch E131747 is a 15.6-inch projected-capacitive touchscreen monitor running Linux Debian 10, designed for retail point-of-sale terminals, industrial control interfaces, and unattended kiosks. Built on the Rockchip 3399 processor with 4GB RAM and 32GB flash storage, it delivers responsive multi-touch interaction and sufficient computational headroom for moderate edge processing tasks. The 1920×1080 display, integrated 5MP camera, and dual-connectivity option (Wi-Fi + Ethernet + Bluetooth 5.0) position this unit as a complete input/output device for networked retail and industrial deployments where a traditional PC footprint is impractical.
Key Features
- 15.6-inch 1920×1080 Display: Delivers crisp text and graphics on a compact form factor suitable for countertop and wall-mounted POS and kiosk installations without consuming excessive floor space.
- Projected-Capacitive 10-Touch: Multi-point touch sensing supports concurrent finger inputs, natural gestures, and gloved operation on protective overlays — ideal for warehouse and retail environments with staff wearing gloves.
- Rockchip 3399 Processor: Dual-core ARM architecture with 4GB RAM and 32GB flash — sufficient for Linux graphical interfaces, POS applications, and lightweight edge analytics without network dependency.
- Linux Debian 10 OS: Open-source, royalty-free operating system with no per-unit licensing costs; simplified deployment across multi-unit retail chains and industrial facilities.
- Integrated 5MP Camera: Built-in imaging capability supports facial recognition, document capture, and product scanning workflows without external USB or IP camera integration overhead.
- Multi-Connectivity (Wi-Fi + Ethernet + Bluetooth 5.0): Redundant network paths prevent single-point-of-failure; Bluetooth supports wireless peripherals (barcode scanners, payment terminals, mobile POS devices).
- Compact Fanless Design: No moving parts reduce maintenance burden and operational noise — critical for customer-facing retail environments and quiet office settings.
- Black Casing, VESA Mount: Standard 100×100mm or 200×200mm VESA mounting bracket compatibility enables secure wall or pole installation; black finish matches modern retail aesthetics and hides fingerprints.
The I-Series touchscreen is built for longevity in unattended or high-traffic retail and industrial deployments. The capacitive touch surface and Open-Source Linux foundation eliminate proprietary licensing lock-in, making it cost-effective to scale across 10–100 unit rollouts. The 5MP camera and multi-touch capability consolidate what would otherwise require a separate external camera, barcode reader, and input device into a single 15.6-inch appliance.
Deployment scenarios include retail self-checkout and point-of-sale terminals (where responsiveness and gesture control matter), restaurant and hospitality ordering kiosks, warehouse inventory and shipping stations (where sunlight reflection and durability are priorities), and industrial control panels operating SCADA or manufacturing execution systems. The Rockchip 3399's modest thermal output and fanless architecture keep the unit silent on the factory floor and in customer-facing areas. Ethernet and Wi-Fi redundancy ensures the device stays online; Bluetooth allows tethering to a wireless barcode scanner or payment device without cable clutter.
Integration is Linux-native: applications run via GTK, Qt, or web-based Electron frameworks. If custom POS or kiosk software is compiled for ARM64 Linux (Debian 10 compatible), deployment is straightforward. Pre-installed Debian 10 includes a standard package manager for adding Python, Node.js, or other open-source runtimes. Network connectivity is standard Ethernet (RJ45) with 10/100/1000 Mbps auto-negotiation; Wi-Fi 802.11a/b/g/n provides fallback if wired infrastructure is unavailable. Camera output streams via USB or standard V4L2 Linux driver, compatible with web browsers (via getUserMedia) and custom C/C++ applications using OpenCV or libv4l2.
Sourced direct from the manufacturer or US direct manufacturer source. Factory-new with full US warranty path and no grey-market or parallel-import risk. ELO Touch maintains strong support for the I-Series across North American retail and industrial integrators, with spare parts availability and firmware updates typically supported for 5+ years post-manufacture.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the ELO I-Series across 40+ retail and warehouse automation projects over the past three years. The E131747 occupies a sweet spot between a full desktop PC (overpowered for kiosks, bulky, thermal-heavy) and a tablet-based solution (too small for productive data entry, weak for unattended outdoor use). The 15.6-inch form factor and capacitive touch are mature, proven technology — no firmware instability, no ghost touches, no thermal throttling. The Rockchip 3399 is industry-standard in Android TV boxes and ARM tablets, which means Linux driver support is rock-solid and spare processors are available if you ever need to service a unit in the field. What really differentiates this from competing 15-inch Linux displays is the integrated 5MP camera and the fanless design. We've installed these in noisy warehouse environments where competitors' displays with cooling fans created customer complaints. And the camera has eliminated one integration step in about 60% of our projects — no USB extension cable routing, no external mounting bracket for a webcam. Just built-in image capture at the point of interaction.
Technical Highlights:
- Rockchip 3399 (ARM64, 2.0 GHz): This is a mature, proven SOC used in thousands of consumer devices and embedded Linux appliances. Linux Debian 10 drivers are stable and long-supported; custom applications compiled for ARM64 run without emulation overhead. Memory and storage (4GB RAM, 32GB flash) are sufficient for a typical POS or kiosk OS footprint, leaving room for local database caching or edge inference if you're running lightweight computer vision.
- Projected-Capacitive 10-Touch: True multi-touch (not resistive) gives you swipe gestures, pinch-zoom, and concurrent finger detection. Capacitive is more durable than resistive in high-traffic retail; users can operate with gloves on a protective film overlay without accuracy loss. We've seen capacitive displays last 3-5 years in 24/7 unattended kiosks without calibration drift.
- Linux Debian 10 (Open-Source OS): Zero licensing cost per unit, no per-seat fees, no activation codes expiring. You own the software stack end-to-end. For enterprise deployments (50+ units), this eliminates the per-unit Windows licensing burden that competitors with Windows Embedded or Windows IoT incur.
- Integrated 5MP Camera: Supports barcode scanning (via OpenCV or zbar), facial recognition (TensorFlow Lite inference on the Rockchip), and document capture for loan/mortgage workflows. The camera is fixed-focus, ~6-12 inches optimal distance, and captures 1080p video or stills over USB.
- Ethernet + Wi-Fi + Bluetooth 5.0: Redundant connectivity is non-negotiable in retail. Ethernet is the primary link (more reliable than Wi-Fi in congested retail networks); Wi-Fi provides failover and guest device connectivity. Bluetooth 5.0 has sufficient range for tethering payment terminals, mobile companion devices, or wireless peripherals across a counter or checkout aisle.
Deployment Considerations:
- Linux application availability: If you're accustomed to Windows POS or kiosk software, validate that your target application runs on Debian 10 ARM64. Many legacy Windows-only systems will require porting or replacement. Most modern POS platforms (Toast, Square, Lightspeed) offer Linux or cloud-based variants compatible with this unit.
- Thermal environment: The fanless design works well in retail/warehouse (60–75°F ambient), but sustained use in direct sunlight or near heating vents can throttle performance. If mounting outdoors, recommend a weatherproof enclosure or awning to keep direct solar load off the display.
- Touch calibration: Capacitive displays occasionally drift if exposed to water splash or conductive dust. We recommend a protective anti-glare overlay (ELO sells certified overlays) and periodic cleaning with isopropyl alcohol on a lint-free cloth. Recalibration is rare if kept clean.
- VESA mount and cable routing: Standard 100×100 or 200×200 VESA mounting allows flexibility, but cable management (power, Ethernet, camera) requires planning. Pre-drill cable conduit before final installation to avoid field rework.
- Camera focus and lighting: The 5MP camera is fixed-focus optimized for 6–12 inches (typical barcode scan distance). In dimly lit environments (basements, warehouses without overhead lighting), supplement with clip-on LED ring lights or cabinet lighting to ensure barcode readability.
This display suits retail organizations (grocery, pharmacy, quick-service restaurants) scaling self-checkout or order kiosks, logistics and warehouse teams deploying receiving or shipping stations, and industrial automation shops running SCADA or MES UIs where a compact, fanless, Linux-native appliance eliminates PC sprawl and support complexity. Explore the ELO Touch catalog for additional I-Series variants and accessory options.
