Middle Atlantic Essex Power Strip 16 Outlet - PWR-16-V

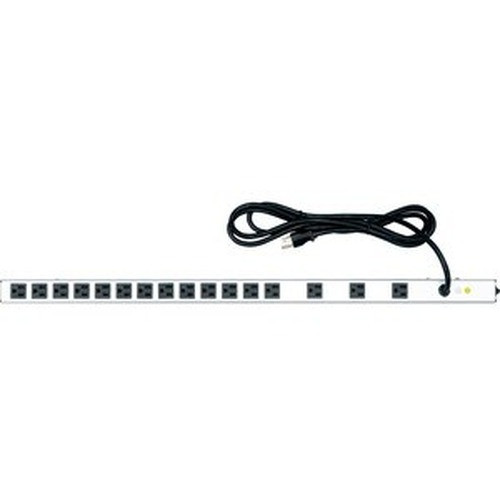

Middle Atlantic PWR-16-V Essex Vertical Power Strip, 16 Outlet

Overview

The Middle Atlantic PWR-16-V is a 16-outlet vertical power strip built for rack-mount power distribution in AV, security, and IT enclosures. At 33.47 inches tall and just 1.62 inches wide, the PWR-16-V occupies a single vertical rack rail position while delivering 16 NEMA 5-15R outlets — the straightforward answer when you need to power a dense shelf of NVRs, encoders, switches, and peripherals without burning U-space on a dedicated power management unit. The 5-15P plug connects directly to a standard 15-amp circuit, keeping the install simple and the bill of materials short.

Key Features

• 16 NEMA 5-15R Outlets: Sixteen individually spaced outlets along a 33.47-inch housing — enough to provision every device in a fully loaded NVR rack plus ancillary gear without daisy-chaining power strips or hunting for available receptacles mid-install.
• 15-Amp / 120VAC Rating: The 15A circuit rating handles the combined draw of low-to-mid-power devices typical in surveillance and AV racks — think PoE switches on separate circuits, NVRs, workstations, and monitors. Know your load: 15A at 120V gives you 1,800W of headroom at 100% utilization; standard practice is to stay under 80%, or 1,440W, for continuous operation.
• Vertical Form Factor (33.47 in × 1.62 in × 1.63 in): The slim vertical profile mounts along the side rail of most standard rack enclosures, preserving horizontal U-space for equipment. At under 1.63 inches deep, it clears standard rack depths without interference from neighboring hardware.
• Corded Design with 5-15P Plug: The hardwired cord terminates in a standard NEMA 5-15P plug — no hardwire connection, no licensed electrician required for most commercial installs. Plug directly into any standard 15A outlet or UPS output receptacle for added surge and battery protection upstream.
• Silver Finish: The silver anodized finish aligns visually with Middle Atlantic rack enclosures and open-frame rails, keeping the installation presentable in client-facing equipment rooms and NOC environments.
• Compact Shipping Profile (3.4 lbs): At 3.4 lbs shipping weight, the PWR-16-V is easy to handle solo during rack builds — no second set of hands needed just to position the strip before securing it to the rail.
• TAA Status: Not Compliant: The PWR-16-V is not TAA compliant. If your project requires TAA-compliant power distribution — federal, DoD, or GSA schedule work — confirm compliance requirements before specifying this unit and evaluate TAA-designated alternatives in the Middle Atlantic power lineup.

Integration & Compatibility

The PWR-16-V (often searched as PWR 16 V) is designed to mount vertically inside Middle Atlantic rack enclosures and is broadly compatible with standard 19-inch rack systems from other manufacturers. The NEMA 5-15P plug works with any standard 15A/120VAC wall outlet or UPS receptacle — no proprietary connectors, no special inlet requirements. When pairing with a UPS, verify the UPS output capacity covers your total rack load; the PWR-16-V itself adds no surge suppression or filtering, so upstream protection is the installer's responsibility. For installations requiring remote monitoring, outlet-level switching, or metered power distribution, this is a passive strip — evaluate a managed PDU if those features are needed for your rack infrastructure.

Frequently Asked Questions

Q: What circuit does the Middle Atlantic PWR-16-V require?

A: The PWR-16-V requires a standard 15-amp, 120VAC circuit. It uses a NEMA 5-15P plug, compatible with standard commercial wall outlets and most UPS output receptacles.

Q: Is the PWR-16-V TAA compliant?

A: No. The PWR-16-V is not TAA compliant per the product specifications. For federal, DoD, or GSA schedule projects with TAA requirements, you will need to specify a compliant alternative.

Q: How many outlets does the PWR-16-V provide, and what type are they?

A: The PWR-16-V provides 16 outlets. Outlet type is consistent with the NEMA 5-15P plug configuration — standard 15A/120VAC receptacles suitable for typical rack-mount equipment.

Q: Does the PWR-16-V include surge suppression or power filtering?

A: The available specifications do not indicate built-in surge suppression or EMI/RFI filtering. It is a passive power strip. For surge and power conditioning, install an appropriate UPS or line conditioner upstream.

Q: What are the physical dimensions of the PWR-16-V?

A: The PWR-16-V measures 33.47 inches tall, 1.62 inches wide, and 1.63 inches deep — designed for vertical mounting along a rack rail without consuming horizontal U-space.

Q: Can the PWR-16-V be used with a UPS?

A: Yes. The standard NEMA 5-15P plug connects to any compatible UPS output receptacle rated for 15A/120VAC. Confirm the UPS output capacity covers the total connected load before installation.
