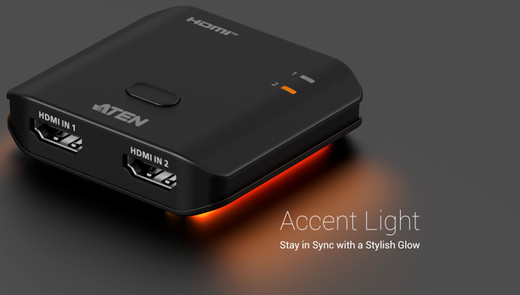

ATEN VS5821 2-PORT 8K HDMI Switch
Overview
The ATEN VS5821 is a 2-port HDMI switch designed to route high-resolution video signals up to 8K. It allows a single HDMI display to connect to two different HDMI sources, enabling quick switching between devices. This is useful in presentation rooms, control centers, or any environment where multiple video sources need to be presented on a single screen without physical cable swapping. The VS5821 model supports 7680x4320 resolution at 60Hz with 4:2:0 chroma subsampling, ensuring compatibility with the latest high-definition content and displays.
Compatibility
This HDMI switch is compatible with any HDMI source device and display that supports 7680x4320 @ 60Hz (4:2:0) resolution. It utilizes standard HDMI Type A female connectors for output and requires an HDMI source connection. The included 1m USB Type-C to Type-A cable is used for power, ensuring broad compatibility with standard USB power sources or computer ports.
Installation Notes
The ATEN VS5821 supports a maximum HDMI cable length of 1.5 meters for the 7680x4320 @ 60Hz (4:2:0) signal to maintain integrity. For optimal performance, use certified HDMI cables of appropriate length. The device requires power via its USB Type-C port, which can be supplied by a computer or a standard USB power adapter (not included). Environmental operating conditions are 0-80% RH, non-condensing humidity.
