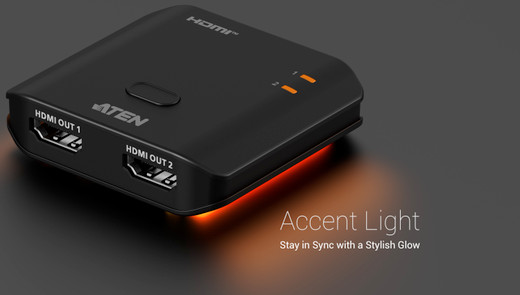

ATEN VS5812 2-PORT 8K HDMI Splitter

Overview

The ATEN VS5812 is a 2-port HDMI splitter designed to duplicate a single HDMI source signal to two displays, supporting resolutions up to 7680x4320 @ 60Hz (4:2:0). This device is crucial for scenarios requiring high-resolution video distribution, such as digital signage, control room monitoring, or conference room presentations where identical, high-fidelity video feeds are necessary. The VS5812 ensures that critical visual information is presented on multiple screens without degradation, making it suitable for professional AV installations. It requires USB-C power, supplied via the included cable.

Compatibility

This splitter is compatible with any HDMI source device capable of outputting a 7680x4320 @ 60Hz (4:2:0) signal. It is designed to work with standard HDMI Type A displays. For optimal performance at maximum resolution and refresh rate, it is recommended to use certified HDMI 2.1 cables up to 1.5 meters in length. The unit is powered via USB-C, requiring a 5V/1A power source.

Installation Notes

The ATEN VS5812 operates within a humidity range of 0 - 80% RH, non-condensing. For resolutions up to 7680x4320 @ 60Hz (4:2:0), the maximum cable length between the source and the splitter, and between the splitter and the displays, is limited to 1.5 meters. Exceeding this length may result in signal degradation or loss. The unit requires a USB-C connection for power, utilizing the included 1m USB Type-C to Type-A cable.
