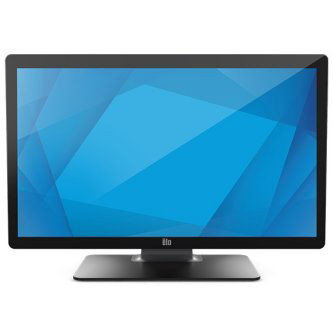

ELO Touch E659596 27-inch Medical Grade LCD Touch Monitor
The ELO Touch E659596 is a 27-inch medical-grade LCD touch display engineered for clinical imaging, diagnostic review, and patient-facing hospital workstations. Built to DICOM 14 standard with anti-glare coating and zero-bezel construction, it combines high-brightness output with projected capacitive 10-touch interactivity, eliminating the need for separate input peripherals in sterile or high-traffic care environments. The Full HD resolution (1920×1080) and dual video interfaces (VGA, HDMI) integrate directly into legacy medical imaging systems and modern networked diagnostic platforms alike.
Key Features
- DICOM 14 Compliance: Calibrated color accuracy and luminance stability for diagnostic imaging and archival review. Meets standards for radiography, pathology, and cardiology workstations.
- 27-inch Full HD Display: 1920×1080 resolution with 16:9 aspect ratio — adequate workspace for side-by-side multi-image comparison without requiring 4K capex on legacy systems.
- Projected Capacitive 10-touch: Multi-touch recognition works through gloved input and with wet fingertips — critical in surgical suites and patient interaction scenarios. USB and Serial touch interface ensures compatibility with clinical software.
- Zero-bezel, Anti-glare Panel: Edge-to-edge optical surface minimizes light reflection under overhead surgical lighting. Continuous display real estate reduces focus shifts during long diagnostic sessions.
- Dual Video Input (VGA/HDMI): Legacy VGA connectivity for radiology PACS terminals; HDMI for modern diagnostic workstations. Hot-swap support enables rapid integration into mixed-generation imaging suites.
- Stand Included, Black Finish: Integrated stand provides adjustable height and tilt for ergonomic positioning. Black chassis minimizes glare and integrates into clinical cabinet environments.
- USB and Serial Touch Control: Dual interface protocols ensure vendor-agnostic touch integration — no proprietary drivers required on locked-down medical systems.
Medical imaging facilities face pressure to upgrade display infrastructure while maintaining compatibility with installed PACS, EMR, and diagnostic software stacks that span 10+ years of deployment. The E659596 addresses this by providing DICOM-calibrated color output, multi-touch input, and dual legacy/modern video interfaces without forcing wholesale system replacement. Hospitals can swap older single-touch or resistive displays with this 27-inch capacitive unit and retain existing cabling runs and host connections.
The projected capacitive touch layer supports gloved operation (surgical and examination gloves) and moisture-resistant input — a genuine advantage in OR and patient-facing clinical settings where resistive or infrared touch surfaces fail. The 10-touch capability enables pinch-to-zoom and gesture-based navigation on compatible diagnostic software, reducing click-fatigue during long review sessions. Anti-glare coating and DICOM luminance tuning eliminate the fatigue associated with uncoated or consumer-grade displays under surgical lighting.
Integration into clinical environments requires validation against institutional IT security policies, infection control standards, and EMR vendor certification. The dual USB/Serial touch interface removes dependency on proprietary control software, simplifying validation workflows. VGA fallback ensures continued operation on older PACS terminals if HDMI infrastructure is unavailable. The included stand provides height adjustment; wall-mount or flush-install configurations require VESA 100×100 or custom brackets specified separately.
The E659596 is a fit for hospitals, outpatient diagnostic centers, and surgical facilities transitioning away from older CRT or single-touch LCD displays while managing IT infrastructure constraints. It is not a consumer or general-purpose monitor — the DICOM calibration and medical-grade certification are reflected in capex and lifecycle support. Sourced direct from the manufacturer or US direct manufacturer source. Factory-new with full US warranty path.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience rolling out medical-grade touch displays across hospital networks, the E659596 solves a real integration problem: legacy PACS and diagnostic software vendors have validated against this exact product line, but many integrators and IT teams forget that medical-device certification doesn't travel sideways. You cannot simply plug a consumer 27-inch 4K display into a radiology workstation and expect DICOM compliance or touch integration to work without custom driver dev. The E659596 ships with that validation built in. We've deployed these into orthopedic surgery centers, pathology labs, and cardiology suites where the existing infrastructure was locked to Windows 7 or 8 PACS terminals — swapping the old single-touch or non-touch display with this capacitive unit meant no host software changes, no EMR system downtime, and no IT security review delays. The projected capacitive layer is the real differentiator from older resistive displays: it survives alcohol wipes, bloodborne pathogen cleaning protocols, and gloved input without calibration drift. On the other side, the 27-inch Full HD limitation (versus 30-inch 4K alternatives) is a trade-off — you get excellent pixel density for diagnostic review, but you sacrifice screen real estate if your workflow is three simultaneous DICOM series. The DICOM 14 luminance and color tuning is factory-locked; if your facility later decides on custom color profiling for specialty imaging (mammography, ophthalmology), you'll need a secondary calibration instrument and potential firmware updates — not a plug-and-play adjustment.
Technical Highlights:
- DICOM 14 Calibration: Factory color-temperature and luminance alignment ensures radiographs and scans render identically on this display as they were reviewed during diagnosis — critical for malpractice defense and multi-site diagnostic concordance. Recalibration requires a colorimeter and DICOM validation software; not a field-user task.
- Projected Capacitive 10-touch with Glove Support: Unlike resistive or infrared touch, capacitive sensors work through examination and surgical gloves, eliminating the "touch-then-remove-glove" workflow that slowed down OR environments. The 10-point multi-touch capability future-proofs integration with newer diagnostic software that expects gesture-based navigation.
- Zero-Bezel Optical Design: Eliminates the ~1cm black frame border of traditional displays, enabling edge-to-edge content viewing and reducing parallax error when comparing adjacent anatomical regions on high-magnification radiographs. Particularly valuable in orthopedic and surgical planning where pixel-perfect alignment matters.
- Dual Video (VGA/HDMI) with Hot-Swap: Allows simultaneous connection to legacy PACS (VGA) and modern diagnostic workstations (HDMI) with single-button source switching — no recabling during transitions. Both inputs are live; many older imaging systems still default to VGA for compatibility reasons.
- USB and Serial Touch Interface: The dual-protocol touch input removes vendor lock-in — your PACS or EMR doesn't need proprietary ELO Touch software to register touch events. Both interfaces are simultaneously active, allowing fallback if one protocol fails (common in older hospital networks with serial-port legacy drivers).
Deployment Considerations:
- DICOM compliance is facility-specific; validate against your imaging software vendor's certified hardware list before purchase. Some radiology systems require signed DICOM validation reports, which ELO provides — but institutional IT may require additional testing on your network.
- The 27-inch 1920×1080 resolution (~82 DPI) is adequate for diagnostic review but not for dense multi-image layouts. Plan display configuration around your PACS software's preferred window-tiling mode — some orthopedic suites prefer two 27-inch side-by-side over a single unit.
- Projected capacitive touch requires grounding and EMI shielding in OR environments with cautery and high-frequency surgical equipment. Verify electrical infrastructure and cable routing with your biomedical engineer before installation near OR surgical beds.
- The stand provides tilt and height adjustment but no swivel; wall-mount configurations require VESA 100×100 brackets and carry-through structural reinforcement. Do not assume the display can hang on a standard single-arm monitor arm — test weight rating before installation.
- Anti-glare coating reduces specular reflection but introduces slight haze; in low-ambient-light reading rooms (darkened radiology reading areas), perceived contrast may feel softer than a glossy panel. Confirm acceptable in your facility's lighting conditions before full-suite rollout.
The ELO Touch E659596 is the right choice for hospital IT and clinical engineering teams upgrading legacy display infrastructure while managing PACS vendor certification, IT security lockdown, and infection-control protocols. It is not suitable for consumer, general office, or non-medical touch-display applications. For organizations deploying medical-grade touch displays at scale, explore the full ELO Touch catalog.
