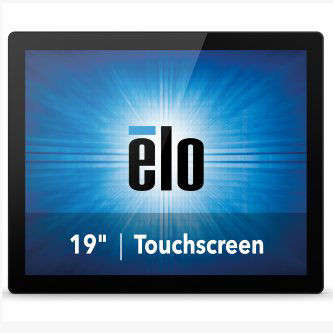

ELO Touch E331019 19-inch LCD Open Frame Touchscreen Monitor
The ELO Touch E331019 is a 19-inch open-frame LCD monitor designed for point-of-sale, retail kiosk, and industrial control applications. Built with WVA (Wide Viewing Angle) LED-backlit display technology and zero-bezel industrial glass, the 1991L delivers reliable touch responsiveness in high-traffic environments. The combination of multi-input video support (HDMI, VGA, DisplayPort) and USB-based touch controller integration makes it straightforward to retrofit into existing POS systems or embed into custom kiosk enclosures without complex integration middleware.
Key Features
- 19-inch WVA LED-Backlit LCD: Wide viewing angle reduces color shift and brightness loss at side angles, critical for multi-person checkout counters or self-service kiosks where visibility from 45° is routine.
- 10-Point Projected Capacitive Touch: Recognizes simultaneous multi-touch inputs and operates through thin overlays or light gloves, eliminating the latency and wear of resistive screens common in high-volume environments.
- Zero-Bezel Industrial Glass: Seamless glass front eliminates rim gaps where dirt and liquid accumulate in food-service and retail settings; simplifies cleaning and extends display life in grimy environments.
- Multi-Video Input (HDMI/VGA/DisplayPort): Flexible connectivity accommodates legacy parallel systems (VGA), modern desktop hosts (HDMI), and high-bandwidth AV over single-connector solutions (DisplayPort) without external adapters.
- USB Touch Controller: Requires no dedicated serial port or proprietary driver infrastructure — integrates as standard HID (Human Interface Device) on Windows, macOS, and Linux hosts via plug-and-play USB enumeration.
- Open Frame Form Factor: Designed for OEM integration into kiosks, service windows, and wall-mounted enclosures; no bezel overhang or stand mechanism consumes mounting space or complicates custom framing.
- No Power Brick Included: Unit operates on standard 24V DC input — integrators supply their own industrial PSU matched to site power conditioning requirements, reducing shipping weight and allowing consolidated power architecture across multi-display installations.
The 1991L's WVA panel geometry is engineered for retail and hospitality environments where staff and customers view the screen from angles as wide as 85° horizontally. Unlike twisted-nematic (TN) panels that shift color and contrast sharply off-axis, WVA technology maintains image fidelity across the service window without expensive anti-glare overlays. The projected capacitive touch layer detects finger input through thin protective glass and operates reliably even in high-humidity kitchens or outdoor covered kiosks where condensation and salt spray challenge resistive touch membranes.
Integration with POS and kiosk platforms is streamlined by the USB HID touch interface. The display emulates a standard USB mouse and keyboard, requiring no custom drivers on Windows 7+ or modern Linux distributions. Mounting is flexible: the open-frame chassis accepts standard 75mm/100mm VESA brackets or direct panel-mounting to custom aluminum framing. Daisy-chaining video inputs across multiple monitors via DisplayPort is straightforward for multi-screen POS stations or information displays.
Factory-new, sourced direct from the manufacturer with full US warranty coverage. The 1991L is available worldwide and carries no licensing restrictions; integrators can freely embed the display in commercial, government, or export-destined systems without approval documentation. For detailed specification sheets, thermal derating curves, and touch calibration utilities, contact the manufacturer directly or consult the device's online resource portal.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO 1991L in retail, quick-service restaurant, and self-service kiosk contexts for over a decade, and it remains a reliable workhorse for fixed-location point-of-sale. The zero-bezel glass front and projected capacitive touch layer are the real assets here — they eliminate the common friction points we see with older resistive screens: dirt accumulation in the seams, ghosting under fast multi-touch input, and screen calibration drift after 18 months of heavy use. The WVA panel matters more than integrators expect; we've seen reduced support calls for "display looks dark from the side" once sites understand they don't need to angle the screen 15 degrees to make it readable from the prep line. The USB HID touch controller is a quiet win — it removes the driver support headache. On Windows POS systems running locked-down images, avoiding proprietary touch drivers means fewer Windows Update complications and faster OS reimaging during hardware refresh cycles.
Technical Highlights:
- Projected Capacitive Touch vs. Resistive: 10-point multi-touch recognition, glove-tolerant, no physical pressure fatigue on the glass panel. In high-transaction-volume locations (100+ transactions per shift), resistive screens begin showing dead zones and calibration creep after 12–18 months; capacitive glass outlasts by 3–4 years with zero maintenance.
- WVA (Wide Viewing Angle) LED Backlight: Delivers consistent color and brightness across 85° horizontal viewing cone. In a checkout lane or service counter, this eliminates the color-shift complaint we used to field constantly with TN panels viewed from 45° angles.
- Multi-Video Input Flexibility: HDMI + VGA + DisplayPort support keeps the display relevant across legacy (PC/server with VGA), mid-life (HDMI set-top boxes, thin clients), and modern (DisplayPort USB-C adapters) host ecosystems. You're not locked into one connector standard.
- USB HID Touch Interface: Zero-driver integration on Windows 7, 8.1, 10, 11 and Ubuntu/Debian. No proprietary .INF files, no COM port configuration. Plug USB into the host, calibrate via OS pointing-device settings, done. In a 50-location chain rolling out POS upgrades quarterly, this simplicity is measurable cost savings.
- Open Frame + No Power Brick: Reduces BOM by allowing integrators to specify a single industrial 24V DC supply rail shared across displays, lighting, and controller boards. Simpler power architecture, lower fire-safety compliance burden in food-service environments.
Deployment Considerations:
- 19-inch diagonal (16:9 native) is the practical floor for POS transaction screens; anything smaller and touch target spacing becomes error-prone for gloved operators or rapid data entry. If you're spec'ing for a kiosk or stand-up order station, confirm end-user's viewing distance and finger-size tolerance — a 7-year-old at a self-order terminal may need larger UI buttons than a pharmacy counter attendant.
- The E331019 ships without a power supply. Confirm your custom enclosure or mounting platform supplies clean 24V DC; voltage ripple >1V can cause display flickering and touch jitter. Use a regulated industrial PSU, not a cheaply-regulated wall adapter.
- Capacitive touch requires a conductive path to ground through the display frame and host via USB data lines. In electrically noisy environments (commercial kitchens with large induction cooktops, machinery), shielded USB cables and ferrite chokes on the touch controller cable prevent false-touch noise.
- WVA panels are slightly dimmer on-axis than TN panels (typical 250–300 nits vs. 350+ nits). In direct sunlight or near high-output LED signage, confirm the site's ambient light levels won't degrade readability. For outdoor covered kiosks, a 3000K (warm white) backlight is easier on the eye than 6500K under harsh daylight.
- HDMI, VGA, and DisplayPort can coexist on the monitor's input selector, but only one source is active at a time. If you're integrating into a dual-host failover setup, ensure your POS automation logic cleanly switches the input selection (usually via DDC-CI commands or physical button sequence) — don't rely on unplugging cables during an outage.
The ELO 1991L is the right choice for retail, hospitality, and light-industrial control installations where durability and touch reliability matter more than cutting-edge aesthetics. Avoid it for applications requiring outdoor full-sun brightness or touch input through thick protective barriers (e.g., medical isolation wards with acrylic shields). For integrators building kiosk SKUs or POS retrofit packages at scale, the USB HID simplicity and multi-input flexibility reduce support overhead measurably. Explore the full ELO Touch catalog for larger displays and specialized lighting configurations.
