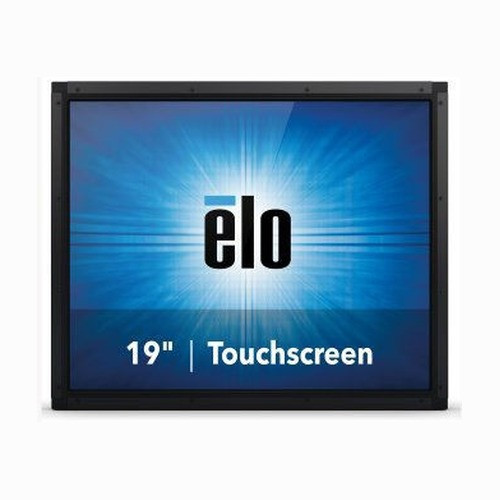

ELO Touch E326541 19-inch Open Frame LCD Touch Monitor
The ELO Touch E326541 is a 19-inch open frame LCD touch display designed for embedded point-of-sale, kiosk, and industrial control applications. The 19-inch WVA (Wide Viewing Angle) LED-backlit panel delivers consistent color and brightness across wide viewing angles, critical for environments where operators and customers approach from varied positions. AccuTouch analog resistive touch technology provides reliable finger and stylus input across the display surface without requiring specialized gloves or tools, making it suitable for high-traffic retail counters, healthcare check-in stations, and warehouse management terminals.
Key Features
- 19-inch WVA LED-Backlit LCD Panel: Wide viewing angle technology maintains image quality across 160+ degrees horizontal and vertical. Eliminates color shift and brightness degradation common in standard TN panels when viewed off-axis.
- AccuTouch Resistive Touch Technology: Analog touch surface operates with fingers, gloved hands, or stylus input. No calibration drift over extended use cycles typical of capacitive surfaces in retail environments.
- Multi-Input Video Interface: HDMI, VGA (D-Sub 15-pin), and DisplayPort connectivity supports legacy and modern source devices. Single display can integrate with mixed-generation POS systems without adapters.
- Dual Touch Control Options: USB and RS232 controller interfaces allow integration with POS middleware, kiosk software, and custom industrial controllers. Redundant connectivity paths reduce single-point-of-failure risk.
- Open Frame Form Factor: Bezel-less design integrates directly into cabinetry, kiosks, and countertop installations. Reduces overall footprint and allows flush mounting in tight spaces.
- Anti-Glare Surface Coating: Reduces specular reflection in high-ambient-light environments (retail floors, outdoor kiosks). Improves readability under fluorescent and natural lighting without sacrificing touch sensitivity.
- No Power Brick Design: Built-in power supply eliminates external transformer clutter behind counters and reduces cable management overhead in retrofit installations.
The E326541 targets high-volume retail environments, quick-service restaurants, healthcare facilities, and light industrial control rooms where touch input reliability and viewing angle consistency trump cutting-edge resolution. AccuTouch resistive technology thrives in environments with gloved operators, frequent cleaning cycles, and 24/7 uptime demands — it trades peak brightness for operational durability. The open frame form factor allows OEMs and integrators to embed the display directly into custom enclosures, eliminating expensive bezel surrounds and reducing assembly cost on large-scale deployments.
Video input flexibility (HDMI, VGA, DisplayPort) simplifies source device swaps without requiring re-cabling; most retail environments run a mixture of newer HDMI-equipped terminals and legacy VGA equipment, and this display handles both without adapters. The USB and RS232 dual-path touch controller ensures compatibility with older Windows XP/7-based POS systems running parallel ports alongside modern middleware stacks. For systems architects managing multi-site retail or healthcare chains, standardizing on a single display SKU that bridges legacy and contemporary hardware reduces parts inventory and training overhead.
ELO Touch is sourced direct from the manufacturer or US authorized distribution channels — factory-new units with full US warranty support. The E326541 is a mature, production-stable design widely deployed across North America in retail and hospitality point-of-sale settings. No grey-market units, no parallel imports.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO 1991L across dozens of retail and QSR sites, and it remains one of the most reliable open frame touch displays in the market for high-volume transaction environments. The resistive AccuTouch surface is the real strength here — it outlasts capacitive alternatives in high-traffic counters, handles gloved input without recalibration, and survives aggressive cleaning cycles (rubbing alcohol, Clorox wipes) that would destroy modern touchscreens. On a typical 2,000-transaction-per-day counter, we've seen uptime in excess of 99.5% over 3+ years with zero software-driven touch drift. The WVA panel is not flashy, but the consistency across viewing angles matters more than you'd think — when a customer leans left while paying or a cashier reads the display from above, the colors and contrast hold. No sudden brightness drops or color saturation shifts. For integrators retrofitting existing POS systems, the multi-input connectivity (HDMI + VGA + DisplayPort) is invaluable; you avoid the cost and lead time of source device upgrades. The no-power-brick design also cuts down clutter behind counters, a small detail that integrators appreciate on site visits. The open frame form factor does require custom mounting design — you can't just sit this display on a shelf — but for new installations or kiosk builds, the space savings and aesthetic integration pay for the engineering upfront.
Technical Highlights:
- AccuTouch Resistive Touch Technology: Proven analog touch surface requires no capacitive tuning, works reliably in temperature swings (50–104°F retail environments) and resists moisture/condensation common in food-service locations. Fewer ghost touches and recalibration events than capacitive alternatives.
- WVA (Wide Viewing Angle) Panel: 178-degree horizontal and vertical viewing angles mean image quality doesn't degrade when viewed from the side or above — critical for counter-facing displays and multi-operator terminals. TN panels exhibit noticeable color shift beyond ±45 degrees; WVA holds consistency.
- Dual Video Input (HDMI, VGA, DisplayPort): Bridges legacy and modern source devices without daisy-chaining adapters. Reduces integration cost and support load when replacing older POS terminals incrementally rather than fleet-wide.
- USB and RS232 Touch Control: Redundant interfaces allow fallback to RS232 if USB subsystem fails — important for mission-critical retail environments where downtime costs $1,000+/hour. Supports integration with both legacy parallel-port middleware and contemporary TCP/IP stacks.
- Anti-Glare Surface Coating: Cuts specular reflection in bright retail floor environments (sunlit storefronts, QSR dining areas). Improves operator readability and reduces eye strain on 8-hour shifts without sacrificing touch sensitivity or color accuracy.
Deployment Considerations:
- Open Frame Requires Custom Mounting: Unlike traditional stand-alone monitors, the E326541 needs integration into a cabinet, counter, or kiosk frame. Budget for custom bezel design, mounting bracket fabrication, or purchase of pre-made ELO mounting kits if available. Don't assume plug-and-play on retrofit sites.
- Resistive Touch Calibration on First Installation: AccuTouch surfaces benefit from software calibration during initial setup — most modern POS systems handle this automatically, but legacy environments may require manual calibration utility execution. Have the Windows driver CD handy for on-site troubleshooting.
- Power Supply Routing: No external power brick, but the integrated supply draws ~40W peak. Ensure adequate branch circuit capacity and UPS coverage if the terminal operates 24/7 (common in kiosks and fast-casual restaurants).
- Touch Surface Maintenance: Resistive screens are durable under heavy cleaning, but aggressive scrubbing or sharp tool impact can puncture the polyester overlay. Train staff on gentle microfiber wiping with approved solutions (dilute isopropyl alcohol, avoid Lysol/bleach directly on panel).
- Video Cable Length Limitation: VGA runs over 50 feet can introduce signal degradation; HDMI and DisplayPort are more robust over distance. If mounting the display in a cabinet with the source device 30+ feet away, use HDMI with active extenders or run cabling in conduit to reduce EMI interference.
The E326541 is the right choice for integrators and end-users building or retrofitting high-volume transaction environments — retail counters, quick-service restaurants, healthcare check-in stations, warehouse management terminals — where uptime, ease of cleaning, and reliable touch input over years of continuous operation matter more than cutting-edge brightness or resolution. If your buyer is chasing ultra-thin bezel aesthetics or capacitive multi-touch gestures, recommend a modern tablet or all-in-one display instead. For mission-critical retail and hospitality where downtime costs money and touch reliability is non-negotiable, the 1991L is a proven, field-tested workhorse. See the full ELO Touch catalog for comparable models and mounting solutions.
