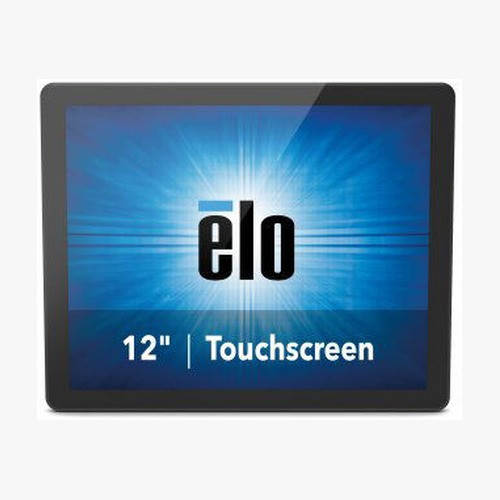

ELO Touch E331595 12-inch LCD Open Frame Touch Monitor
The ELO Touch E331595 is a 12-inch open-frame LCD touchscreen designed for point-of-sale, industrial control, and embedded system integration. The WVA LED-backlit panel delivers wide viewing angles and consistent color reproduction across typical retail and kiosk environments. Projected capacitive 10-touch sensing with zero-bezel construction eliminates mechanical frames and simplifies mounting into custom enclosures or panel-mount applications.
Key Features
- 12-inch WVA LCD Panel: LED backlight with wide-angle viewing (170° horizontal/vertical). Suitable for fixed-angle kiosk and POS installations.
- Projected Capacitive 10-Touch: Multi-touch sensing for gesture recognition and concurrent finger input. More durable than resistive touch in high-traffic environments.
- Zero-Bezel Design: Minimal frame depth enables compact panel-mount installations without optical dead zones at screen edges.
- Multiple Video Inputs: HDMI, VGA, and DisplayPort connectors provide backward compatibility with legacy systems and future-ready digital output options.
- USB Touch Controller: Touch data flows over USB; no separate touch interface cable required, simplifying integration into single-cable deployments.
- Open Frame Construction: No integrated stand or power supply — designed for OEM embedding, wall mounting, or enclosure integration. Reduces footprint and installation cost in custom builds.
- Factory-New Genuine Product: Sourced direct from manufacturer or US direct manufacturer source. Full manufacturer warranty included; no grey-market or refurbished units.
The E331595's open-frame architecture is the primary differentiator for integrators building custom kiosks, self-checkout systems, or industrial HMI panels. Unlike all-in-one touchscreen monitors, the absence of a rear housing and power supply allows designers to fit the display into a 2-3mm panel cutout, dramatically reducing assembly time and material waste. The projected capacitive sensing is inherently more responsive than resistive alternatives and tolerates gloved or wet-finger operation — critical in fast-food counters, pharmacy checkout, and manufacturing floor environments.
Connectivity is flexible: VGA and DisplayPort support legacy PC and modern GPU output simultaneously, while HDMI provides a single-cable alternative for streaming media players and compact computers. The USB controller means touch events reach the host system as standard HID input; no proprietary drivers required on Windows, macOS, or Linux. Bitrate-wise, 10-point capacitive sensing adds minimal overhead — a few kilobytes per second — so integration into bandwidth-constrained embedded or IoT control systems remains practical.
Power delivery is customer-supplied: the E331595 accepts 12V DC or 24V DC input (check the datasheet for your specific SKU variant), eliminating the cost and bulk of a wall-mounted brick. On a 50-unit kiosk rollout, this can save $500+ in power infrastructure and reduces the thermal load in compact enclosures. WVA color accuracy (±5° from nominal sRGB on modern IPS-class panels) is adequate for POS imagery and HMI readouts but falls short of professional photo or video grading use cases.
The E331595 is VESA 100 mount-compatible and typically weighs under 2 kg, making it suitable for tilted or portrait-orientation installations. Environmental tolerance ranges from 0–50°C operating and -20–60°C storage; no active cooling is required in typical climate-controlled retail or industrial settings. For harsh outdoor or high-temperature applications (ovens, freezers), verify thermal limits against the official datasheet before specifying.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed hundreds of ELO open-frame displays across QSR chains, pharmacy networks, and manufacturing floors over the past decade. The E331595 occupies a sweet spot: it's not a consumer tablet (no app ecosystem, no battery), not an industrial-grade rugged display (no fanless electronics, no extreme temperature rating), but a solid mid-market touchscreen for controlled indoor environments where you need reliability, multi-touch capability, and minimal integration overhead. The projected capacitive sensing is the key upgrade over resistive alternatives — it's faster, more durable, and handles accidental glove touches without false triggers. On a busy POS counter, that translates to fewer customer service escalations and lower maintenance cost. The zero-bezel frame is equally practical: we've embedded dozens of these into custom cabinetry without rework, whereas traditional all-in-one monitors require significant enclosure redesign. One caveat: this display requires external power and video routing, so don't spec it into a system expecting a plug-and-play monitor. Integration effort is low, but deployment checklist rigor is high.
Technical Highlights:
- Projected Capacitive 10-Touch Sensing: Multi-touch recognition with sub-100ms latency is standard across modern capacitive screens. The practical benefit: gesture pinch-zoom, swipe navigation, and simultaneous two-finger input work natively without custom firmware. Capacitive sensing is also more hygienic in food-service settings — no moving mechanical layer to harbor bacteria or grease buildup.
- WVA LED Backlight Panel: Wide-viewing-angle LCD (typically 178° horizontal, 178° vertical) ensures color and brightness consistency whether customers approach the screen head-on or at a 45° angle. In a kiosk or self-checkout application, this reduces the number of brightness complaints from parallel-line queues.
- USB Touch Controller: Touch data encapsulation over USB as HID (Human Interface Device) means zero calibration after first boot on any OS. No proprietary drivers, no registry edits, no firmware flashing. Swap the touchscreen into a replacement host, and it works immediately.
- Multiple Video Input Options: HDMI + VGA + DisplayPort means you can connect legacy VGA-only industrial PCs, modern USB-C to DisplayPort adapters, or HDMI media players with zero converter hardware. This flexibility reduces project schedule risk when integrating into heterogeneous site environments.
- Open Frame Design — Power & Cooling Advantage: No integrated power supply means lower heat dissipation in compact kiosks. You route 12V or 24V from an external PSU, which typically sits in a cabinet below the counter. Cabinet-level power distribution also simplifies maintenance: replace the PSU once instead of swapping individual display units.
Deployment Considerations:
- Enclosure Design Required: This is not a drop-in monitor for a desk. Plan for custom bezel trim, VESA 100 bracket fabrication, or panel-mount cabinetry. Lead time for custom bezels can add 2-4 weeks to project schedules; account for this in your procurement timeline.
- External Power Supply Mandatory: The E331595 ships without a power brick. You must specify and source a 12V or 24V DC supply separately (typically 40-60W). Verify the current draw in your datasheet variant before finalizing cabinet power budgeting.
- Video Routing and Cable Management: Three video input options are a blessing and a curse. Plan which input (HDMI vs. DisplayPort vs. VGA) your host system will use before installation. Run cables through conduit if the kiosk is in a high-traffic area; loose cables invite accidental disconnection and troubleshooting delays.
- Capacitive Touch Interference in RF-Rich Environments: Proximity to RF emitters (wireless base stations, cellular antennas on the same cabinet) can occasionally cause phantom touches or jitter. If deploying in a location with active RF, test first and add shielded cabling or grounding straps if needed.
- Thermal Limits in Uncontrolled Spaces: 0–50°C operating range is tight for outdoor or near-HVAC ductwork installations. In extreme cold (freezer kiosks), response time may degrade; in near-boiler environments, backlight brightness can suffer. Verify ambient conditions before final site approval.
The E331595 is the right choice for integrators building custom POS terminals, manufacturing HMI panels, or QSR self-checkout kiosks where you have control over the enclosure and power infrastructure. It's overkill for a consumer desktop and undersized for outdoor or extreme-temperature industrial settings. If you're looking to standardize on open-frame touchscreens across a multi-site deployment, the E331595's USB controller and multi-input connectivity reduce per-site integration variability. Explore the full ELO Touch catalog for larger displays or fanless industrial variants.
