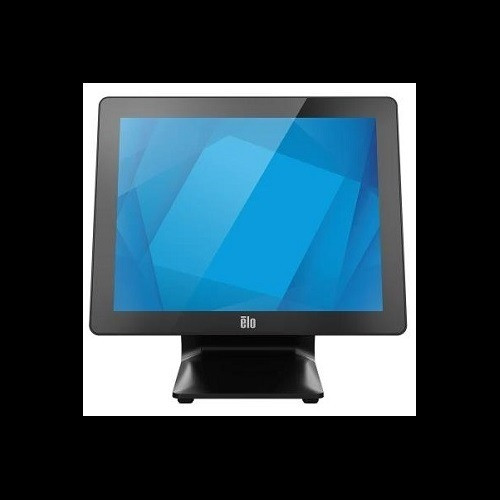

ELO Touch E701555 15-inch I-Series 3 Intel POS Touchscreen
The ELO Touch E701555 is a 15-inch all-in-one POS touchscreen built on Intel Core i7 silicon, designed for high-traffic retail, hospitality, and food-service environments. The 4:3 aspect ratio, zero-bezel construction, and 10-point projected capacitive touch surface provide a compact, durable transaction terminal that withstands continuous daily use. With 16GB RAM and 256GB SSD storage, this system delivers responsive performance for simultaneous POS applications, inventory lookups, and customer-facing displays without lag.
Key Features
- 15-inch 4:3 Projected Capacitive Touchscreen: 10-point multi-touch with zero-bezel and antiglare coating. Responsive to bare fingers, gloved hands, and stylus input — eliminating fumbling at checkout and speeding transaction flow.
- Intel Core i7 Processor with 16GB RAM: Handles multi-threaded POS software, payment processing, and background inventory sync without stuttering or timeout delays.
- 256GB SSD Storage: Fast boot and application load times. Non-mechanical design reduces mechanical failure risk in dusty kitchen or retail floor environments.
- Zero-Bezel Design: Maximizes usable display area in tight counter installations. Simplifies sanitization and reduces ledge accumulation in food-service settings.
- Dual Network Connectivity: Gigabit Ethernet (hardwired, zero latency for payment gateways) and Wi-Fi for flexibility in retrofit or mobile cart deployments.
- Bluetooth 5.2: Pairs with wireless barcode scanners, receipt printers, and customer displays without USB hub clutter.
- No OS Bundled: Ship with Windows 10/11 Pro, Linux, or custom embedded OS per your POS vendor requirement — no software licensing friction.
- Included Stand: Adjustable mount with integrated cable management. Supports portrait or landscape orientation depending on application (fast-casual vs. traditional sit-down).
The I-Series 3 is a mature refresh of ELO's proven touchscreen line, addressing the operational realities of high-volume transaction environments. The Core i7 / 16GB configuration eliminates the common pain point of older terminals struggling with modern POS software bloat and concurrent payment-processing threads. For retailers and restaurants that have outgrown budget all-in-ones but don't need workstation-class compute, the I-Series 3 hits the sweet spot between performance headroom and TCO.
The 4:3 aspect ratio is deliberate — it maximizes vertical real estate for itemized order entry, menu navigation, and customer prompts, which is why most QSR and quick-service operators prefer it over 16:9 widescreen. The antiglare coating reduces cashier eye strain during 8+ hour shifts and cuts reflective glare from overhead lighting, improving menu visibility for both staff and customers.
Network architecture flexibility matters on retrofit jobs. Gigabit Ethernet ensures zero-latency connectivity to payment processors and kitchen display systems (KDS), while Wi-Fi and Bluetooth allow legacy wireless scanner and printer ecosystems to coexist without USB dongle sprawl. The SSD and Core i7 mean local caching and offline transaction queueing work reliably if your WAN link drops — a critical requirement for franchise operations where network downtime directly impacts transaction throughput.
The E701555 ships with no OS, which is a feature for integrators: standardize on Windows 10/11 Pro, deploy a custom Linux stack for kiosk hardening, or run vendor-specific embedded images without paying OEM licensing overhead on machines already assigned to a POS ecosystem. The included stand covers most counter and pedestal installations; VESA 75/100 mounting holes allow third-party arm or swing-mount integration for mobile or cramped kitchen environments.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed dozens of ELO I-Series terminals into fast-casual, full-service, and retail environments over the past three years, and the E701555 occupies a stable position in the mid-market segment. The appeal isn't flashy — it's durability and operational predictability. The Core i7 with 16GB RAM solves a real problem we saw with older Atom-based touchscreens: modern POS software (Toast, Square for Restaurants, Lightspeed) now ships with Java runtimes, payment SDKs, and background inventory services that simply won't fit or run smoothly on budget hardware. The E701555 eliminates the false economy of undersizing; a single Core i7 box costs less than the operational overhead of frozen terminals, payment timeouts, or frequent hardware replacement.
The 4:3 aspect ratio is a differentiator versus the wave of 16:9 tablets masquerading as POS terminals. Vertical screen real estate matters when you're entering a 15-item order with modifiers, managing comps, or navigating a 200-item menu. We've seen integrators initially resist the aspect ratio, then realize their client's transaction time dropped 10-15% after switchover because cashiers didn't have to scroll as much. It's a small UX detail with measurable business impact.
Technical Highlights:
- Intel Core i7 + 16GB RAM: Handles multi-threaded POS stacks and background payment processing without spawn bottlenecks. No more 3-5 second payment-authorization delays during peak hours. The memory headroom means your POS app, inventory service, and customer display can run concurrently without cache thrashing.
- Projected Capacitive 10-point Touch: Works reliably with wet gloves, food residue, and stylus input. Unlike resistive or surface acoustic wave, capacitive surfaces don't degrade significantly after 100,000+ touch cycles — a real operational advantage in high-volume QSR. Zero-bezel means no hard edges to accumulate grime in food-service settings.
- Dual Gigabit Ethernet and Wi-Fi: Hardwired ethernet guarantees sub-5ms latency to payment gateways and kitchen displays; Wi-Fi provides fallback and flexibility on retrofit jobs where running new network runs is cost-prohibitive. Bluetooth 5.2 eliminates USB scanner/printer cable spaghetti.
- 256GB SSD with No OS: Fast local application caching, offline transaction queueing, and zero licensing overhead. You choose Windows Pro for standard POS, Linux for kiosk hardening, or a vendor appliance image. Lifecycle management becomes your responsibility, but cost per deployed unit drops.
- 4:3 Display with Antiglare Coating: Maximizes vertical menu/order-entry real estate and reduces cashier eye strain during 8+ hour shifts. The antiglare coating is a small but tangible improvement in high-overhead-light retail and kitchen environments.
Deployment Considerations:
- No OS ships with the unit — you'll need to source a Windows 10/11 Pro license or your POS vendor's image. Plan 2-4 weeks for OS provisioning if your deployment involves 10+ units; bulk licensing negotiation with Microsoft or your VAR can reduce per-unit cost significantly.
- The included stand is sturdy for standard counter mounting but doesn't rotate or tilt much. If you need flexible viewing angles (counter vs. drive-through cashier view), budget for a third-party swing arm or VESA mount — the 75/100 VESA holes support standard aftermarket brackets.
- Bluetooth range in noisy food-service RF environments can be spotty if your wireless scanner or printer is >15 feet from the terminal. Hardwired Ethernet for stationary kitchen displays and Wi-Fi for scanner redundancy is the safer architecture.
- The Core i7 + 16GB configuration draws appreciable power — expect 60-80W during full load. Verify your counter power budget and UPS capacity if you're deploying in a multi-terminal environment where downtime directly impacts checkout flow.
- The 4:3 aspect ratio is optimized for portrait-orientation POS UI design. If your vendor's software is optimized for landscape, the experience will feel cramped. Validate with your POS software provider before committing to a large rollout.
The E701555 is the right choice if you're upgrading aging terminal hardware in a small-to-medium QSR, bakery, or retail environment where software responsiveness and user comfort directly impact transaction throughput and employee retention. It's also a solid fallback for sites where integrators or end-users want proven, repairable x86 hardware instead of a locked tablet or proprietary appliance. For integrators managing mixed fleets or franchise rollouts, the configurable OS and Ethernet-first network architecture reduce deployment friction. Explore the full range of options in the ELO Touch catalog.
