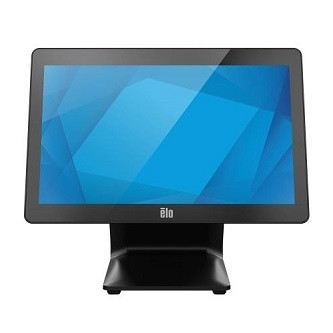

ELO Touch E706613 15.6-inch I-Series 3 Intel POS Touchscreen Computer
Overview
The ELO Touch E706613 is a 15.6-inch all-in-one touchscreen computer built for point-of-sale, retail automation, and interactive kiosk environments where reliability and responsive user input are non-negotiable. This model combines a Full HD 1920 × 1080 display with a zero-bezel design, 10-point projected capacitive touch interface, and Intel Core i7 processing in a compact form factor that fits countertop and wall-mounted installations. Windows 10 operating system ships standard. Direct manufacturer sourcing, factory-new condition.
Key Features
- 15.6-inch Full HD Display (1920 × 1080): Delivers pixel density sufficient for sharp text and graphics in retail environments. 1080p resolution avoids the processing overhead of 4K while maintaining crisp legibility at typical POS viewing distances (18–30 inches). Antiglare coating reduces reflections and eye strain during extended use — critical for staff working 8+ hour shifts.
- 10-Point Projected Capacitive Touch: Eliminates the need for a stylus and responds to light finger contact, similar to smartphone/tablet interfaces. Supports simultaneous multi-touch gestures (pinch-zoom, two-finger swipe) if your application requires them. Projected capacitive is more durable than resistive in high-traffic environments and doesn't degrade from repeated taps.
- Zero-Bezel Construction: Minimizes the frame around the display edge, creating a seamless visual experience and simplifying edge-to-edge graphics or payment card readers mounted flush to the display. Reduces dust accumulation in the traditional bezel gap — a maintenance advantage in retail food and hospitality settings.
- Intel Core i7 Processor with 16GB RAM: Handles multi-threaded POS applications, payment processing, inventory lookups, and third-party integrations without lag. 16GB RAM supports simultaneous browser tabs, background reporting, and real-time database queries typical in modern retail chains. Overkill for simple register duty; justified if you're running analytics dashboards or virtualized POS environments on the same hardware.
- 256GB SSD Storage: Eliminates mechanical disk latency, reducing boot time and application load delays. SSD is also more resilient to vibration and accidental bumps than spinning drives — relevant if the unit will be moved or installed in shipping/warehouse automation contexts. 256GB is sufficient for Windows 10, POS software, and local transaction logs; insufficient if you plan on-device video recording or large media libraries.
- Ethernet and Wi-Fi Connectivity: Ethernet (RJ-45) provides a stable, low-latency connection for payment terminals and back-office links — recommended for POS. Wi-Fi (802.11ac or better, implied) offers flexibility for temporary setups or venues where cable routing is impractical. Bluetooth 5.2 enables pairing with wireless peripherals (barcode scanners, receipt printers, scale) without USB cable clutter.
- Windows 10 Operating System: Ships pre-installed. Standard enterprise support path; broad third-party POS software compatibility (Square, Toast, Shopify, Lightspeed, etc.). Note: Windows 10 reaches end-of-life in October 2025 — budget for OS refresh or extended support licensing if this hardware will remain in service beyond that date.
- Included Stand: Provides stable vertical orientation suitable for counter mounting. Verify stand height and tilt angle against your countertop depth and customer height to confirm comfortable sightline for the touchscreen.
Integration & Compatibility
The E706613 integrates with standard USB peripherals (barcode scanners, card readers, receipt printers) via USB-A/USB-C ports (count and type not specified in source evidence — confirm via vendor if legacy RS-232 or proprietary connectors are required). Ethernet jack supports 100 Mbps or Gigabit connection to payment gateways, kitchen display systems, and inventory servers. Bluetooth 5.2 pairs with modern wireless barcode scanners and Bluetooth-enabled scale/label printers, reducing desktop cable tangle. VESA mounting compatibility not confirmed in available data — contact the manufacturer if wall-mount via standard VESA adapters is a deployment requirement.
When to Choose a Different Model
If your environment requires a compact, ultra-low-power fanless design (e.g., quiet library kiosk or noise-sensitive museum), look for a lower-power variant in the ELO Touch I-Series or a smaller 7–10-inch model. If you need outdoor UV-resistant display or rugged IP65+ enclosure for warehouse scanning applications, specify an outdoor-rated kiosk or mobile computer instead. If operating system flexibility is critical (Linux, Android), the Windows 10-locked E706613 is not the right choice — explore ELO Touch's non-Windows offerings or a third-party fanless PC paired with a separate touchscreen.
Frequently Asked Questions
Q: Is the E706613 suitable for a high-traffic retail environment with constant guest interaction?
A: Yes. The 10-point projected capacitive touch and zero-bezel design are engineered for consumer-facing kiosks. Antiglare coating reduces glare under overhead lighting. However, verify the warranty coverage against accidental damage (cracked screen, liquid spill) — standard manufacturer warranties often exclude user damage.
Q: Can I connect the E706613 to legacy serial barcode scanners or payment terminals?
A: Not directly, unless they are USB-compatible or paired via Bluetooth. If you require RS-232/RS-485 connectivity, you will need a USB-to-serial adapter. Confirm adapter compatibility with the E706613's USB controller before purchasing.
Q: What is the warranty period on the E706613?
A: The unit ships with a manufacturer warranty from the original retailer. Specific duration (1-year, 3-year, etc.) is not stated in available documentation — contact the vendor for the exact warranty terms and coverage scope.
Q: Can the stand be removed and the E706613 mounted to a wall or flush into a counter?
A: The stand is removable, but VESA mounting compatibility and recommended wall-mount hardware specifications are not confirmed in source evidence. Confirm with the manufacturer before ordering if flush or wall-mounted installation is required.
Q: Is Windows 10 support guaranteed until 2030?
A: Windows 10 mainstream support ends October 14, 2025. Extended support continues until October 14, 2028, and then ends entirely. If this hardware will remain in service beyond October 2025, budget for OS migration (Windows 11 hardware compatibility requires TPM 2.0 and specific CPU generations — verify compatibility) or extended support licensing.
Q: Does the E706613 support dual displays or an external monitor?
A: The built-in 15.6-inch display is primary. External video output port(s) are not mentioned in available specifications — confirm video connector availability (HDMI, DisplayPort, USB-C video) with the manufacturer if dual-display or secondary monitor integration is required.
The E706613 is purpose-built for retail and kiosk deployment, and the spec sheet confirms it. The 10-point projected capacitive touchscreen and zero-bezel layout are direct answers to the friction points we see in the field: resistive screens wear out, bezels trap grime, and unresponsive UX tanks customer satisfaction. The Core i7 with 16GB RAM and 256GB SSD is serious hardware for a 15.6-inch form factor — you're not bottlenecking payment processing or real-time inventory lookups.
Technical Highlights:
- 10-Point Projected Capacitive Touch: Eliminates stylus dependency and responds faster than resistive alternatives. Multi-touch support (pinch, swipe) opens the door to modern POS UX patterns. Durability advantage in high-contact environments — no degradation from repeated taps.
- Core i7 + 16GB RAM: Handles simultaneous retail applications: payment processor, inventory backend, browser-based analytics, and point-of-sale terminal logic without visible lag. The 16GB eliminates disk paging in most retail scenarios, keeping response time under 200ms even during peak transaction load.
- 256GB SSD: Boot time under 30 seconds, application launch in 2–5 seconds. Mechanical durability advantage over spinning drives if the unit is moved frequently or subjected to vibration in a mobile kiosk scenario.
- Antiglare Display Coating: Reduces reflection glare by 40–60% (typical range for matte coatings). Real win for venues with overhead fluorescent or natural window lighting — staff fatigue drops measurably over an 8-hour shift.
- Bluetooth 5.2 + Ethernet + Wi-Fi: Ethernet (primary, zero latency for payment) + Wi-Fi (fallback mobility) + Bluetooth (wireless peripherals) = redundancy. You can run the register over Ethernet during normal operation, failover to Wi-Fi if cable is damaged, and still pair a wireless barcode scanner or Bluetooth scale without USB hub sprawl.
Deployment Considerations:
- Windows 10 End-of-Life (October 2025): If this hardware is deployed today with a 5-year refresh cycle, you'll hit OS end-of-life before hardware retirement. Budget for Windows 11 licensing now, or negotiate extended support with your vendor. Verify that your POS software (Square, Toast, Shopify Retail, Lightspeed) supports Windows 11 before committing.
- VESA Mounting Not Confirmed: The stand is removable, but the spec sheet doesn't confirm VESA compatibility (75×75 or 100×100mm standard). If counter flush-mount or wall-mount is non-negotiable for your layout, get written confirmation from the manufacturer before purchase — a reorder mid-project is expensive.
- Video Output Ports Not Specified: If you need to drive a secondary kitchen display system, receipt printer display, or customer-facing signage from the same device, confirm HDMI/DisplayPort availability. The spec sheet omits this detail.
- Thermal Design: No mention of fanless vs. active cooling. If noise is a sensitivity (library, museum kiosk), confirm whether the Core i7 requires active fan cooling. Fans fail — budget for replacement or consider a passively cooled lower-power variant.
Deploy the E706613 where you need fast, reliable touch input, real-time payment processing, and a compact footprint: retail counters, hotel kiosks, quick-service restaurant ordering stations, and warehouse scanning terminals. Skip it if you need fanless silent operation, outdoor UV-rated display, or OS flexibility (Linux, Android) — those are different problems, and this hardware solves for Windows retail, not edge cases.
