DSC PC4204 Access Control Panel

DSC PC4204 Access Control Panel

Overview

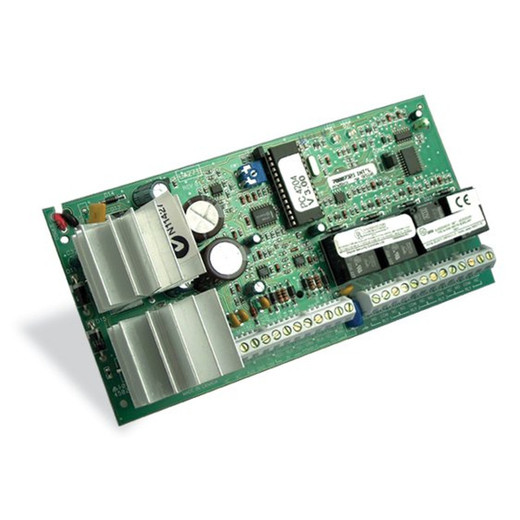

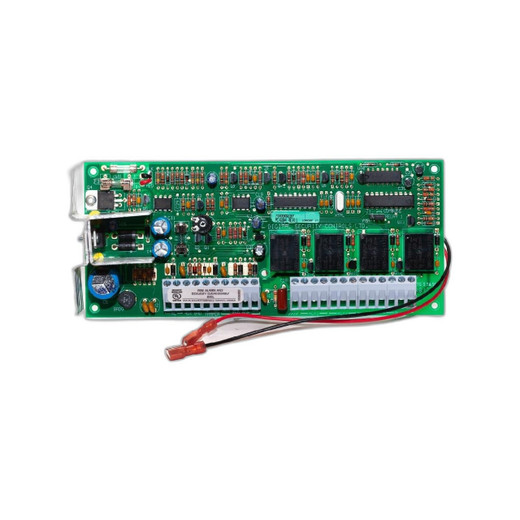

The DSC PC4204 is a metal cabinet-mounted access control panel engineered for integrated security installations requiring reliable door and reader management. Built to operate across standard industrial temperature ranges, the PC4204 delivers consistent performance in demanding deployment environments. This panel functions as a centralized processing unit for credential verification, door strike control, and multi-reader coordination in multi-door access control architectures.

The panel operates on 28VDC power delivery, a standard voltage across professional security infrastructure that simplifies integration with existing backup power and transformer systems. The metal cabinet construction provides thermal management and electromagnetic shielding suitable for permanent installation in equipment rooms, security control centers, or distributed network nodes.

Key Features

• 28VDC Power Supply: Direct 28-volt DC operation compatible with standard security power distributions and UPS integration
• Metal Cabinet Mount Design: Durable steel enclosure rated for indoor mounting with integrated cable management and mounting rails
• Operating Temperature Range: Rated 0°C to 49°C (32°F to 120°F), enabling reliable performance across seasonal and climate-controlled facility environments
• Multi-Reader Support: Architecture supports integration of multiple credential readers and door strike mechanisms
• Industrial-Grade Construction: Purpose-built for security integration rather than consumer-grade electronics, ensuring long-term field reliability
• Centralized Control Hub: Processes access decisions and coordinates door lock activation across multiple controlled points

Integration & Compatibility

The DSC PC4204 operates as a dedicated access control processor within professional security networks. Integration typically involves wired reader connections carrying credential data (proximity, magnetic stripe, or smart card formats depending on reader selection), door status sensors monitoring lock position and forced-entry attempts, and strike control outputs managing electronic lock actuation. The 28VDC bus supplies power to readers, solenoid strikes, and monitoring sensors, centralizing power distribution and reducing installation complexity.

System planning for the PC4204 requires determining door capacity, selecting appropriate reader technologies matched to credential management strategy, and establishing communication pathways to management software or cloud-based platforms. Configuration tasks include credential database loading, access rule assignment, and audit logging setup to track all authentication attempts and door events.

Installation Considerations

Mount the PC4204 panel in a secure, climate-controlled location with adequate ventilation. The metal cabinet design manages heat dissipation across the 0°C to 49°C operating window, but prolonged exposure to temperature extremes or outdoor conditions will reduce component longevity. Ensure 28VDC power delivery includes appropriate backup capacity to maintain door security during mains power loss. Plan wiring runs from the cabinet to remote readers and strikes to minimize voltage drop—oversized conductors or local power distribution nodes may be required for installations with extended cable runs or multiple high-current strike devices.

The PC4204 serves as the decision-making engine in access control deployments, making proper installation and configuration critical to system security and operational continuity.
