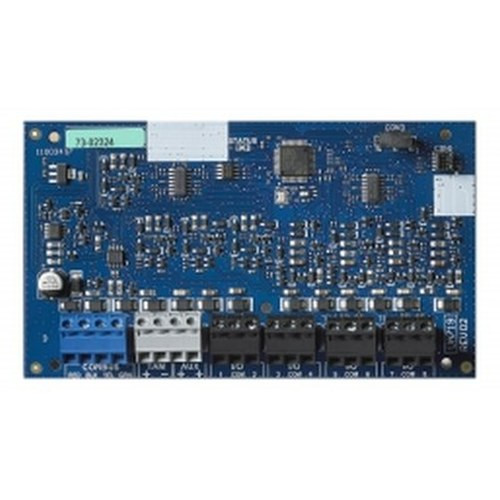

DSC HSM3408 DIN Rail Access Control Module
The DSC HSM3408 is a compact, DIN rail-mounted access control module engineered for integrators deploying distributed door control systems in space-constrained electrical enclosures. This form factor eliminates the need for dedicated external housing, preserving panel real estate and accelerating installation timelines in both retrofit and new-construction environments.
Key Features
- DIN Rail Mounting: Direct 35mm rail installation reduces enclosure footprint compared to traditional panel-mount controllers, meaning you fit more control hardware in existing cabinets without expanding electrical infrastructure costs.
- Panel Cabinet Compatibility: Alternative mounting support provides flexibility when DIN rail space is unavailable, adapting to retrofit scenarios or non-standard panel layouts.
- 12VDC Operating Voltage: Direct compatibility with standard UPS-backed power supplies common in access control installations eliminates the need for additional power conditioning equipment and simplifies circuit design.
- Operating Temperature Range (0°C to 49°C / 32°F to 120°F): Rated for climate-controlled indoor environments—offices, retail, institutional facilities. Non-climate-controlled spaces or outdoor deployments require verification of thermal management adequacy.
- Modular Architecture: Supports integration into larger DSC access control systems, enabling distributed control strategies across multiple doors or zones without requiring a single monolithic controller.
- Simplified Field Termination: Standard wiring and connector design reduces installation labor and field troubleshooting time compared to complex multi-pin harnesses.
Integration and Compatibility
The HSM3408 is purpose-built for DSC system deployments. Before ordering, confirm communication protocol support (serial, Ethernet, or proprietary DSC network) and any credential reader connectivity requirements—incompatible readers or protocol mismatches can delay commissioning. The module integrates with distributed access control architectures, allowing integrators to deploy control intelligence at multiple locations rather than centralizing all logic in a single panel.
When planning enclosure layouts, account for thermal clearance between multiple modules. Stacking three or four HSM3408 units in a compact enclosure can trap heat; ensure adequate ventilation or forced-air cooling if deploying in high-density configurations. Verify your 12VDC power supply has sufficient current capacity not just for the HSM3408 itself, but for all downstream devices on that circuit—electromagnetic door locks, access readers, and auxiliary relays all draw from the same supply.
Typical Deployment Scenarios
The HSM3408 is ideal for multi-door installations in facilities with limited panel space—warehouses, data centers, or manufacturing environments where electrical enclosures are already at capacity. Its DIN rail form factor makes it particularly effective in retrofit access control upgrades, where adding a new controller to an existing panel would otherwise require cabinet replacement or external auxiliary enclosure. Integrators also favor it for distributed control strategies, where placing a controller near clusters of doors reduces cable runs and simplifies wiring termination.
Frequently Asked Questions
Q: Does the HSM3408 require a separate master controller, or can it operate standalone?
A: Confirm with DSC system documentation. The HSM3408 is a modular component; depending on your architecture, it may require connection to a primary access control processor or operate semi-autonomously with local credential validation. Verify your specific system design before ordering.
Q: Can I mount multiple HSM3408 modules in the same enclosure?
A: Yes, but ensure adequate thermal spacing and enclosure ventilation. Operating temperature is rated 0°C to 49°C; stacking modules without airflow can exceed that limit. Plan for cooling if deploying more than two units in a compact cabinet.
Q: What power supply capacity do I need?
A: The HSM3408 itself draws modest current at 12VDC, but size your supply to handle the total load: module + readers + electromagnetic locks + any auxiliary I/O. Undersizing leads to voltage sag, authentication failures, and lock malfunction. Consult the system designer's power budget worksheet.
Q: Is the HSM3408 suitable for outdoor installations?
A: No. Its operating range (0°C to 49°C) is specified for climate-controlled indoor environments. Outdoor deployments or unheated storage areas require outdoor-rated enclosures and thermal management verification with DSC technical support.
Q: Can I integrate the HSM3408 with non-DSC readers or door hardware?
A: Confirm reader compatibility and protocol support with the module datasheet and your integrator documentation. Mismatched reader technologies (Wiegand vs. RS-485 native, for example) require protocol converters and add complexity and latency.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the DSC HSM3408 during several panel-mount access control deployments, and the DIN rail form factor consistently delivers installation efficiency. This module is purpose-built for integrators who need to consolidate control hardware without expanding enclosure footprint—a practical advantage when working within existing electrical infrastructure constraints. The HSM3408 shines in retrofit environments where panel space is already occupied by legacy power distribution, fire alarm, or HVAC control gear.
Technical Highlights:
- DIN Rail Mounting: Standard 35mm rail integration eliminates external enclosure costs and reduces installation labor compared to traditional panel-mount modules. In a typical multi-door retrofit, this saves 4–6 hours of panel prep and wiring time.
- 12VDC Power Design: Direct integration with UPS-backed supplies means no additional power conditioning required. Plan for roughly 2–5A total circuit load (module + readers + locks) depending on your credential technology and door count.
- Operating Temperature 0°C to 49°C: Suitable for climate-controlled indoor spaces; verify suitability if deploying in unheated storage, loading docks, or outdoor-adjacent areas where temperature swings exceed this range.
Deployment Considerations:
- Confirm communication protocol support and credential reader compatibility with your primary DSC control system architecture before ordering—protocol mismatches (serial vs. Ethernet native, for example) require additional converters and introduce latency.
- Plan for proper DIN rail spacing and thermal clearance if deploying multiple HSM3408 modules in a single enclosure. Stacked modules without forced-air cooling can drift above 49°C, particularly in summer or warm climates. Budget for ventilation fans if you're consolidating three or more units.
- Size your 12VDC power supply conservatively. Many integrators underestimate auxiliary loads—a multi-reader system with electromagnetic locks can draw 3–5A sustained. Voltage sag below 11V causes authentication timeouts and lock release failures.
The HSM3408 is a strong fit for warehouse, manufacturing, and data-center access control upgrades where electrical enclosure real estate is precious and retrofit timelines are tight. Skip it if you need outdoor thermal tolerance or if your system architecture requires centralized control logic; instead, verify DSC's panel-mount controller options for those scenarios.
