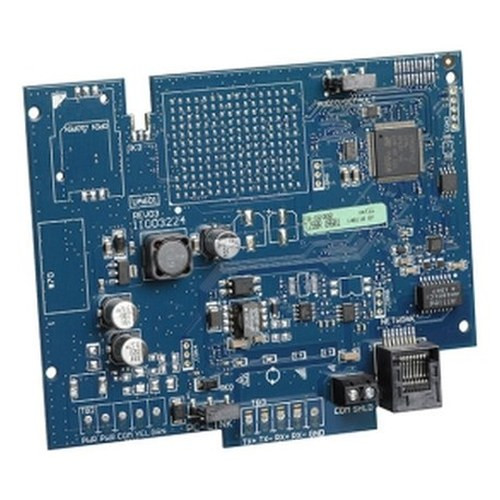

DSC TL280E Control Panel – Networked Access Control Hub

The DSC TL280E is a hardwired security control panel purpose-built for cabinet-mounted integration in mid-to-large access control and alarm system deployments. TCP/IP communication eliminates reliance on legacy serial connections, while 128-bit AES encryption protects all communications between the panel and networked readers, sensors, and management software—a critical requirement for systems handling physical security credentials and real-time access events.

Overview

The TL280E functions as a central control hub within electrical enclosures and security cabinets, supporting networked communication across distributed access points and sensor arrays. Its compact cabinet-mount design minimizes footprint, making it suitable for both new deployments and expansions into existing infrastructure. UL/ULC certification confirms compliance with recognized standards for alarm and access control reliability and safety.

Key Features

• TCP/IP Communication: Native IP networking replaces serial wiring, reducing cable runs and enabling remote monitoring and control from any connected management station—essential when integrating with modern access control software and cloud-based reporting systems.
• 128-bit AES Encryption: Enterprise-grade encryption protects credential data and alarm events in transit, meeting compliance requirements for systems handling sensitive facility access. No unencrypted credential or status data crosses the network.
• Inside Cabinet Mount Design: Compact form factor integrates directly into electrical enclosures and security cabinets alongside power distribution, network switches, and other control equipment—reduces overall installation footprint and simplifies cable management within a unified assembly.
• UL/ULC Listed Certification: Third-party validation confirms the panel meets recognized safety and performance standards for alarm and access control applications, supporting compliance audits and insurer requirements.
• 12VDC Power Supply: Standard voltage input simplifies integration with distributed 12VDC supply systems and battery backup infrastructure already present in most cabinet installations—no need for dedicated AC-to-DC conversion.
• Wide Operating Temperature Range (0°C to 49°C / 32°F to 120°F): Operates reliably in both climate-controlled server rooms and unheated utility spaces or transition areas, eliminating the need for separate environmental controls in moderate temperature swings.

Integration & Compatibility

The TL280E leverages TCP/IP as its primary communication protocol, enabling integration with IP-based access control management platforms, remote monitoring dashboards, and cloud-connected security orchestration systems. 128-bit AES encryption ensures compatibility with enterprise data protection policies and industry compliance frameworks (such as those requiring encrypted credential transmission). Cabinet mounting allows the TL280E to coexist with complementary control equipment—access control systems often require multiple integrated components within a single enclosure. Network administrators should verify bandwidth availability and IP addressing schemes to align with security policies; firewall rules must permit communication between the panel and any remote management endpoints. Consider managed network switches with VLAN support to isolate access control traffic from general facility networks.

Operating Specifications

The TL280E requires 12VDC input power and operates across a temperature range of 0°C to 49°C. Inside-cabinet mounting simplifies integration within larger electrical assemblies and reduces overall security enclosure footprint. UL/ULC listing confirms reliability and safety in recognized alarm and access control deployments. Organizations deploying the TL280E should verify network bandwidth requirements, encryption key management procedures, and integration pathways with existing access control management software to align with IT and physical security policies.

Frequently Asked Questions

Q: Does the TL280E require a separate power supply, or can it run from an existing 12VDC backup battery?

A: The TL280E operates on 12VDC input, so it can draw power directly from existing backup battery systems already present in cabinet installations. No separate power supply is required if your enclosure already distributes 12VDC.

Q: Is the TL280E compatible with third-party access control management software?

A: The TL280E supports TCP/IP communication and is designed for integration with IP-based access control platforms. Verify your specific management software's ONVIF or proprietary integration support before deployment.

Q: What is the maximum number of networked readers or sensors the TL280E can support?

A: Specific capacity limits depend on your network infrastructure and management software configuration. Consult the TL280E datasheet or your integrator to determine reader/sensor capacity for your deployment.

Q: Can the TL280E be remotely accessed over the internet, or is it limited to local network operation?

A: The TL280E supports remote monitoring and management via TCP/IP. Internet access depends on your network architecture and firewall policies. Ensure encryption and access controls are properly configured before enabling remote access.

Q: Is the TL280E NDAA Section 889 compliant?

A: Check with the manufacturer or your integrator for specific NDAA compliance certification details for this model.

Q: What type of backup power integration is recommended with the TL280E?

A: The TL280E's 12VDC input can connect to uninterruptible power supplies (UPS) or dedicated battery backup systems typical in cabinet-mounted security installations. Verify amperage requirements with the manufacturer before sizing backup power.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the DSC TL280E during integration planning for several cabinet-based security system installations. This panel delivers solid networked control with practical encryption and straightforward deployment into existing cabinet infrastructures. The TCP/IP-native architecture eliminates legacy serial dependencies and integrates well with modern access control management platforms. The 128-bit AES encryption on all communications is a practical strength—not overkill—for systems handling real-time credential and access events.

Technical Highlights:

• Encrypted Network Communication: 128-bit AES encryption protects all data between the TL280E and networked readers and management software. This meets enterprise compliance expectations and eliminates plaintext credential risk—a real concern in unencrypted legacy systems.
• 12VDC Direct Power Input: No AC-to-DC supply required. The TL280E draws from existing backup battery systems in cabinet installations, simplifying power architecture and reducing failure modes tied to separate power supplies.
• UL/ULC Listing: Third-party certification confirms compliance with recognized safety standards. Insurers and facilities managers recognize UL/ULC marks—this matters during audit and renewal cycles.

Deployment Considerations:

• Cabinet mounting is non-negotiable—this panel is not designed for surface wall mounting or standalone operation. Verify enclosure space and thermal environment before ordering.
• TCP/IP communication requires network infrastructure (managed switch, VLAN isolation recommended). Confirm your IT team understands the need for network bandwidth and firewall rules before integration begins.
• Encryption key management is your responsibility. Establish secure procedures for encryption key provisioning and rotation to avoid lockouts or credential compromise.

Position the TL280E when you have a mid-to-large multi-door or multi-zone facility already running networked readers and planning to consolidate control into a single cabinet. For small single-door or two-door installations, a simpler controller will suffice. For facilities requiring cloud-connected or multi-site federation, verify the TL280E integrates with your chosen access control software platform before committing.
